Configure Oracle as a Source

Overview

This article describes the steps needed to configure Oracle as a source in DvSum Data Intelligence (DI). The same steps apply to configure a source in DvSum Data Quality (DQ Legacy) with only a slight variation.

Prerequisites

Oracle configuration

User: Create a user to be used in DvSum, or identify an existing user.

Table permissions: Grant read-only access to the user for schemas and tables that you would like to catalog and profile.

System table permissions: Grant read-only access to the user for the following system tables:

V$SQL
DBA_USERS
ALL_USERS
ALL_OBJECTS
ALL_TABLES
ALL_SYNONYMS
ALL_TAB_COMMENTS
ALL_EXTERNAL_TABLES
ALL_TAB_COLS
ALL_COL_COMMENTS
ALL_CONSTRAINTS
ALL_CONS_COLUMNS

In order to grant access the below statement can be used:

GRANT SELECT ON [TABLE_NAME] TO [USER]

Oracle GRANT documentation

Step by Step configuration

1. Add Source

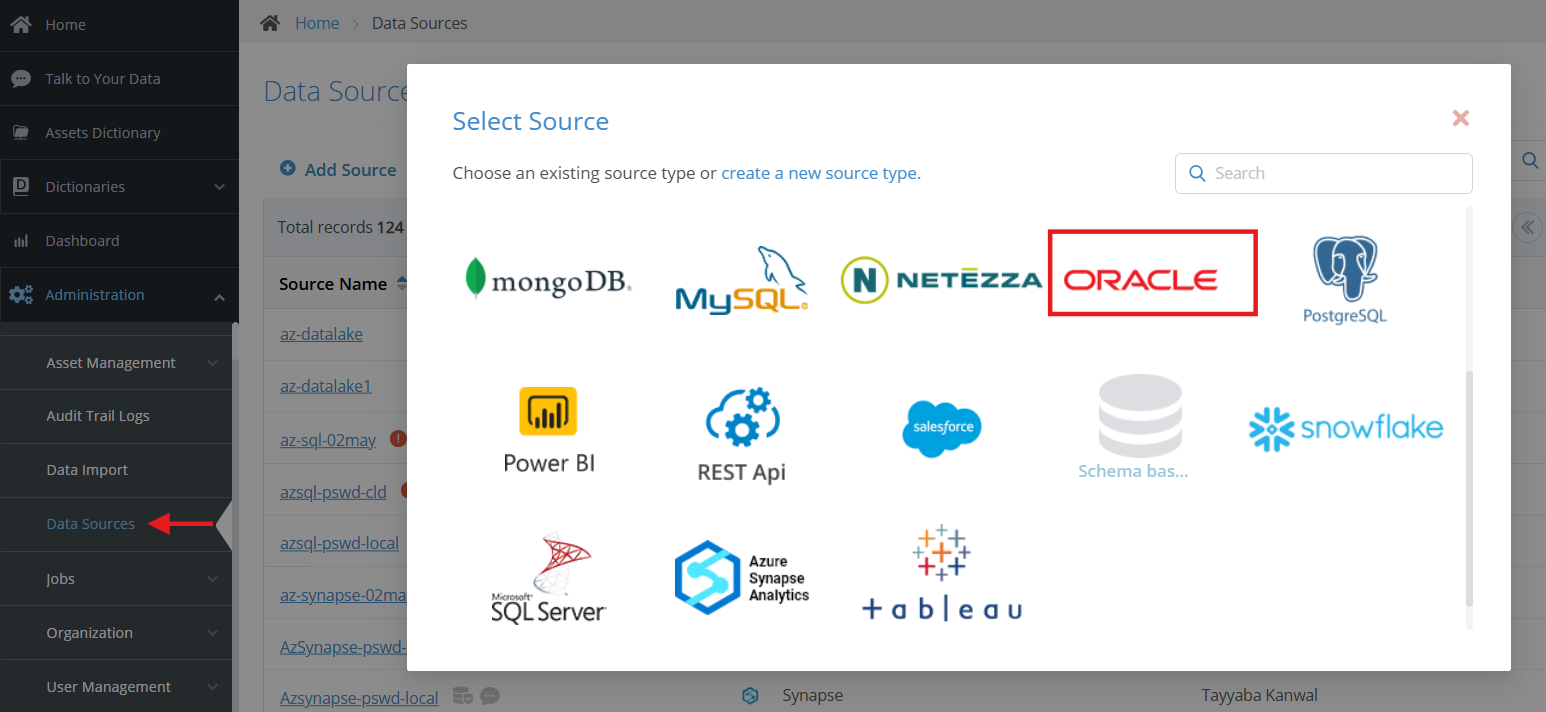

To create a data source, navigate to Administration → Data Sources → ⊕Add Source.
Select Oracle.

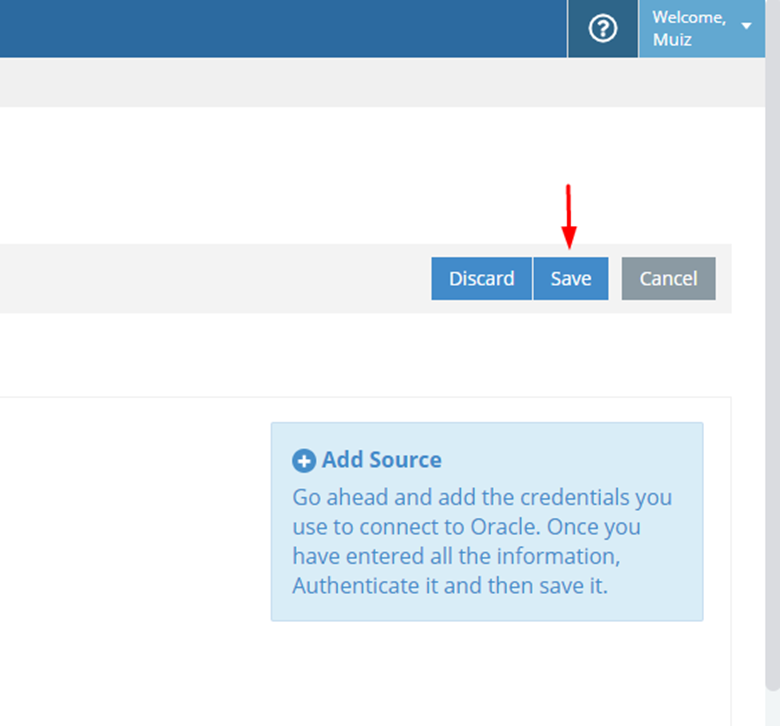

Give the source a name, and save it.

2. Environment Assignment

If Environments are enabled in the application, users can assign the Data Source to an Environment (for example, Development, UAT, or Production) and associate it with a Logical Source.

Environment assignment helps organize Data Sources across different deployment stages, while Logical Sources represent the same business dataset across multiple environments. Together, they support environment-aware asset promotion and management.

To assign an Environment and Logical Source:

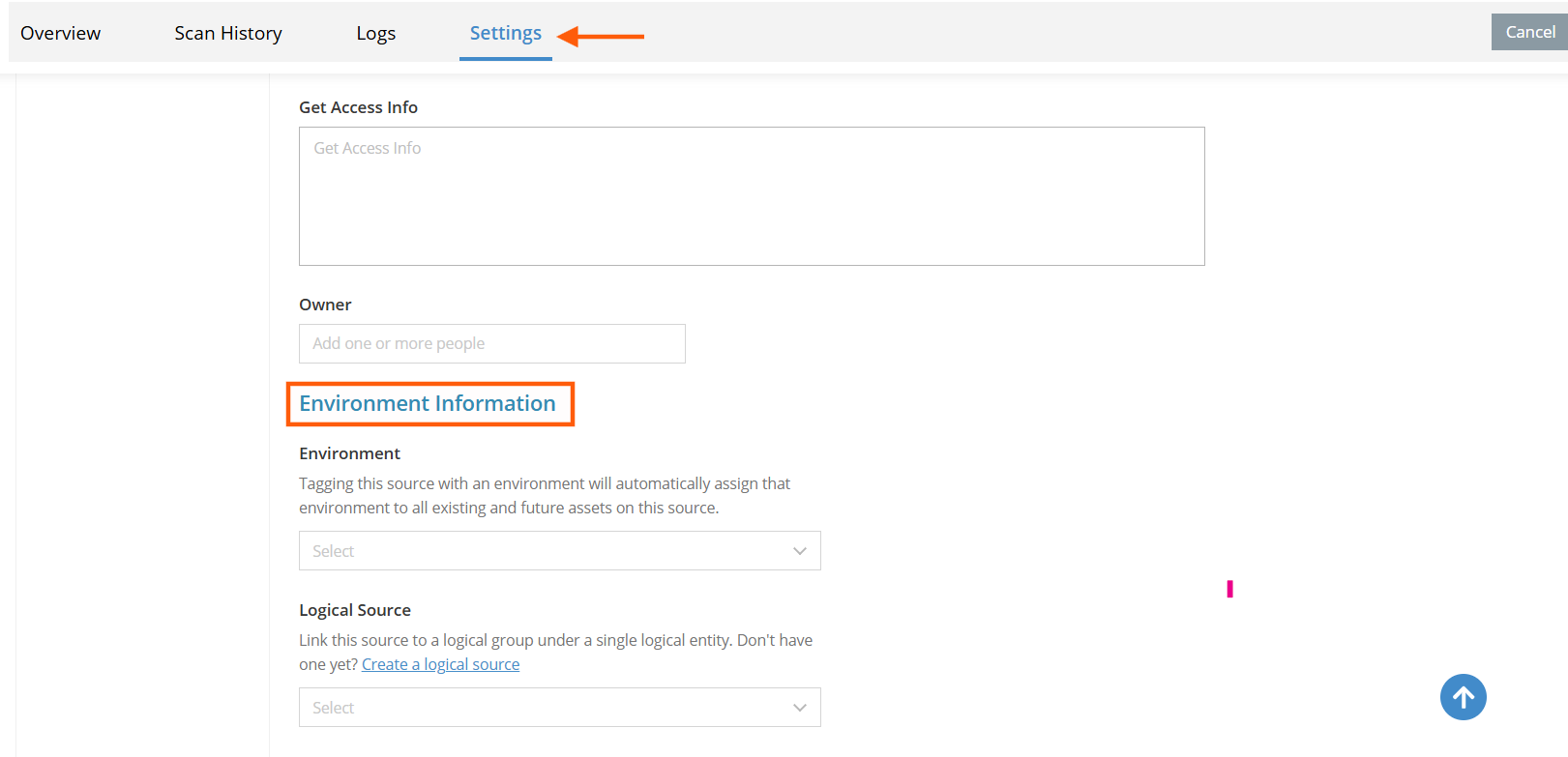

Open the Data Source details page --> Settings --> General.
Select the appropriate Environment.
Select or create a Logical Source, if applicable.
Save the changes.

For detailed information about configuring and managing Environments and Logical Sources, refer to the Environment Management article.

3. Configure Connection

Once the source is saved, you will be redirected to the connection settings page.

Method 1: Connect Using DvSum Web Service

Whitelist the DvSum application by IP address as indicated.
Enter the required connection details:
1. Host
2. Port
3. SID or Service Name
4. Database Login
5. Database Password
Click Authenticate to verify the connection.

Method 2: Connect Using DvSum Edge Gateway

If your Oracle database is behind a firewall, install a DvSum Edge Gateway to enable a secure connection.
Learn more about the differences in DvSum Web Service vs On-Premises Edge Gateway.

Once authenticated, the Database section will appear.

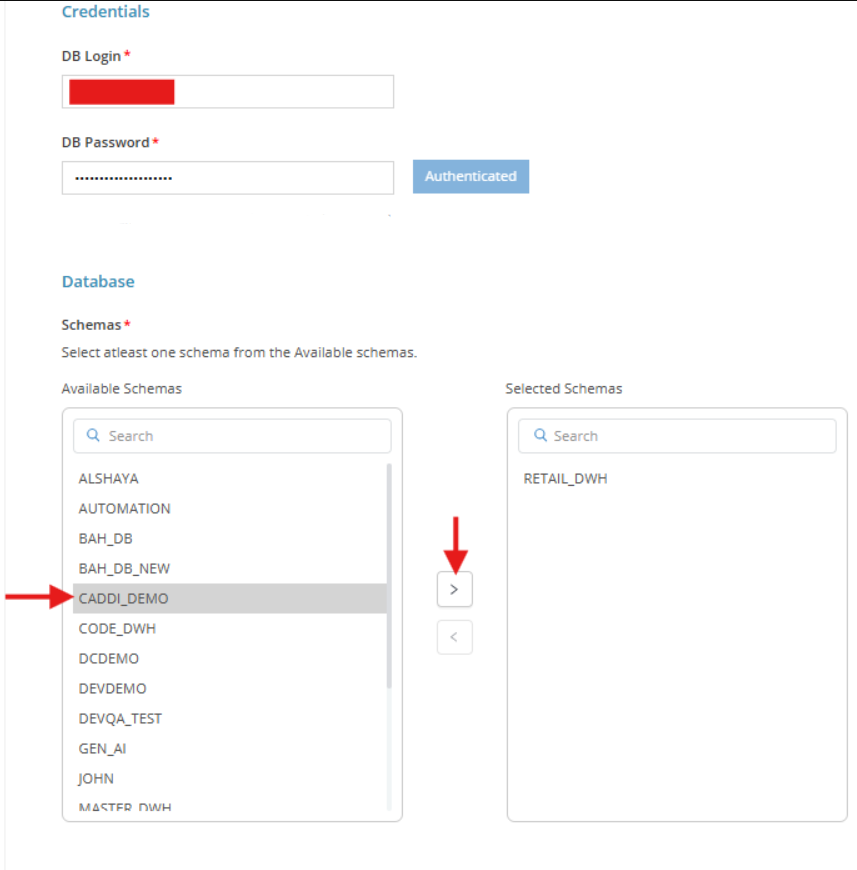

Select the schemas to catalog.

4. Save the Connection

After entering credentials and selecting schemas, scroll to the top of the page.
Click Done in the top-right corner.
Click Save to finalize the connection setup.

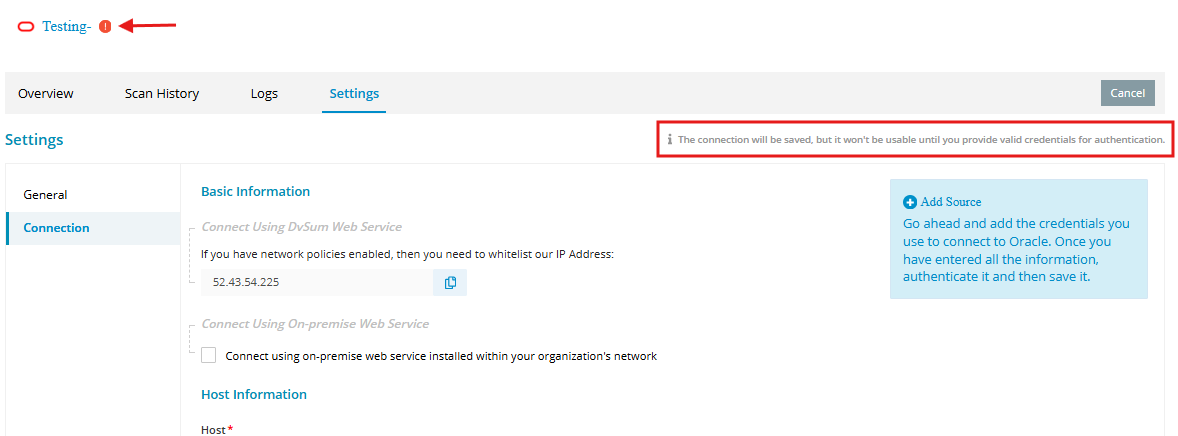

Note: When adding or editing a Data Source, if incorrect details or invalid credentials are entered, it will still allows to save the Data Source. However, authentication will fail, and the Data Source will be marked as unusable with a red icon. The Data Source will not be usable until the correct credentials are provided.

The connection is saved, but it cannot be used until valid authentication details are updated.

5. Scan the data source

Navigate to the Scan History page.
Click Scan Now to initiate a scan.

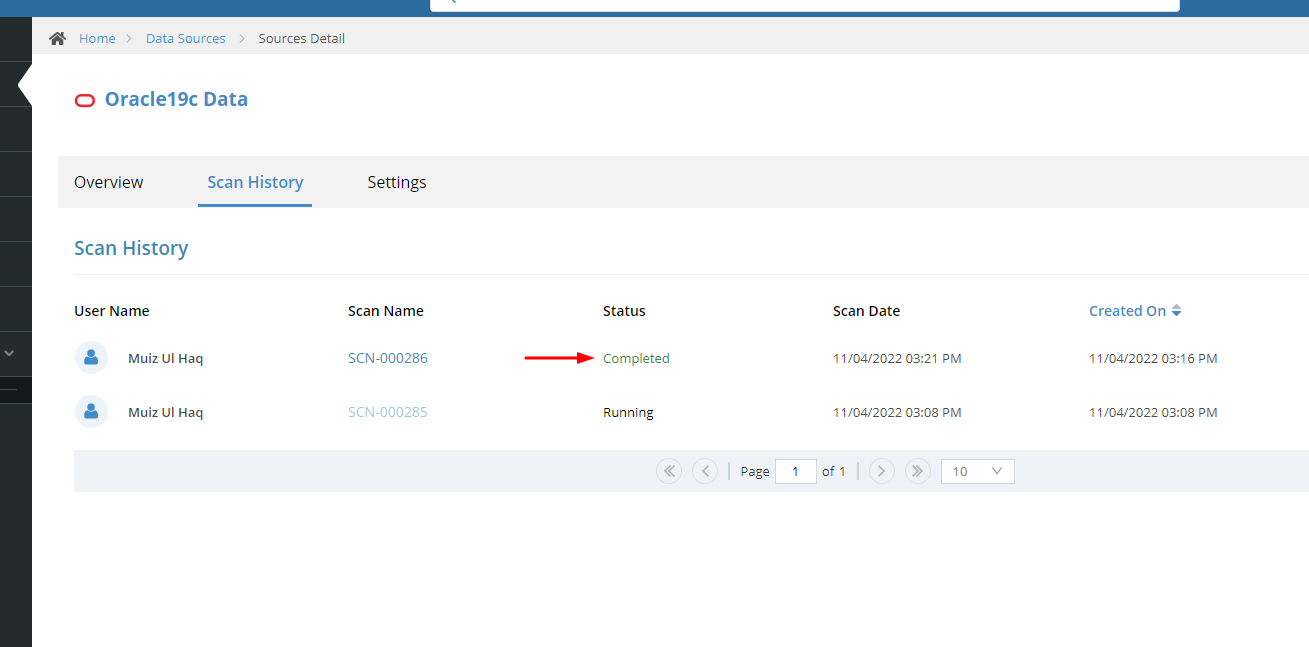

Once the scan is complete, the status will update to Completed.
Click on the Scan Name (e.g., SCN-000286) to view the scan summary.

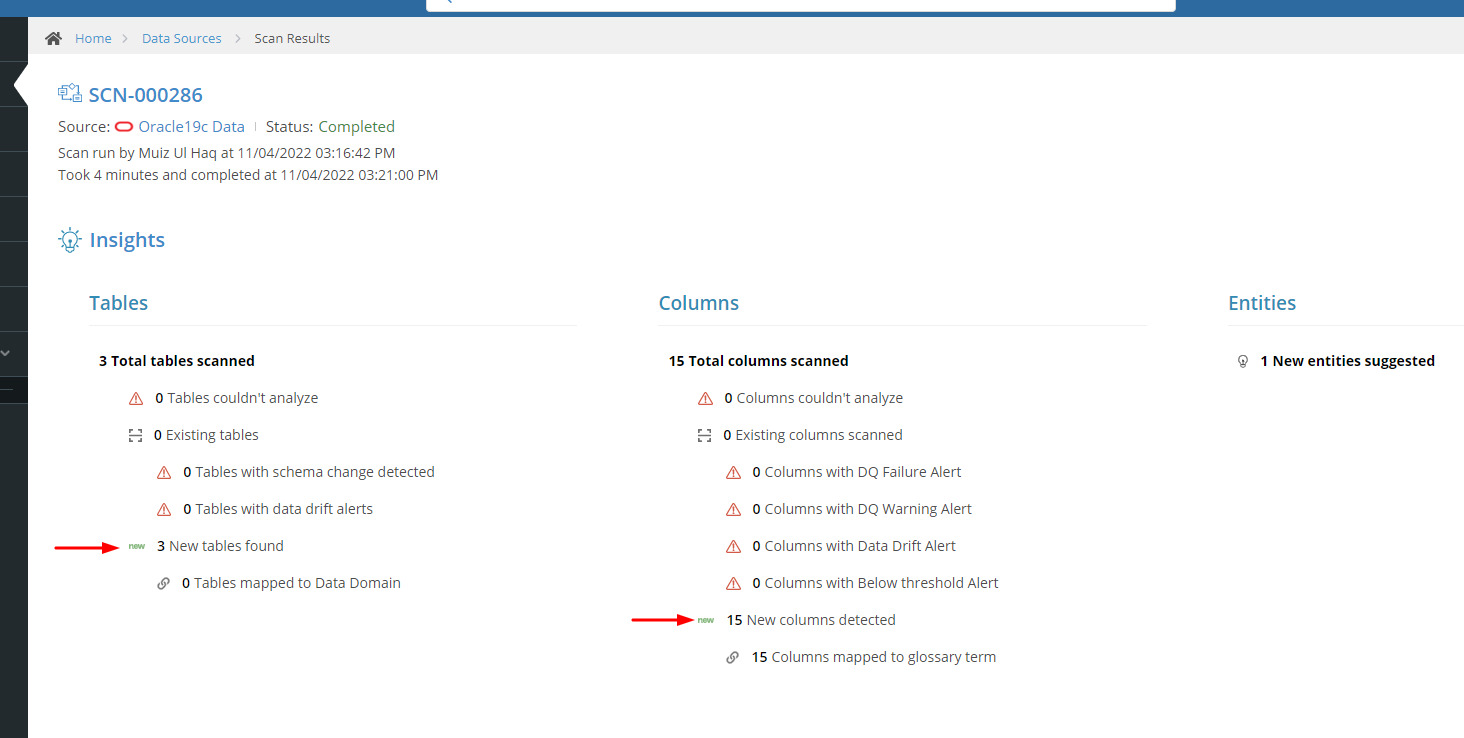

The Scan Summary Page provides insights into the scan, including:

The number of new tables and columns fetched.

Your Oracle connection is now fully configured and functional.

Browsing the Database Columns

After a successful scan, explore the discovered tables and columns:

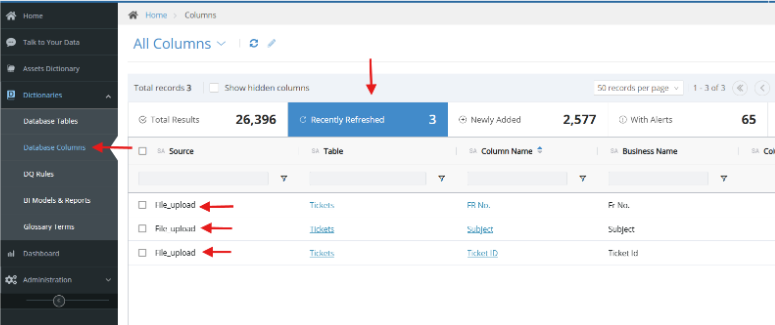

Go to the Dictionaries dropdown and select the Database Columns tab.
Click on the Recently Refreshed tab to see the latest scanned tables.
Click on a table name to view detailed metadata.

Lineage Support for Oracle

DvSum supports lineage extraction for Oracle sources using query history and stored procedure or package code analysis.

To enable this:

Ensure the Oracle user has read-only access to the ALL_SOURCE view to allow access to stored procedure or package definitions.
All relevant schemas containing the procedure or package code must be included in the source configuration.
For detailed instructions on how to set this up, refer to the article: Lineage in DvSum

Query History in Oracle

Query history is enabled by default for Oracle, so no additional configuration is required. DvSum automatically scans query history for lineage analysis.

To verify that query history is being captured, you can run the following SQL query:

SELECT v.*
FROM v$sql v
LEFT JOIN all_users du ON v.PARSING_USER_ID = du.user_id
WHERE command_type IN (1, 2, 6, 7, 189)
AND ROWNUM < 10;

Note: This query returns recent DML operations using Oracle's v$sql view and can be used to confirm that query history is available to DvSum.
