Foundational DQ - Custom Query – Help Center

Overview

The Custom Query Rule allows users to create and execute custom SQL queries for advanced data validation, analysis, and reporting. It provides flexibility to define unique data quality checks beyond predefined rules, enabling users to tailor queries to their specific needs.

For further information about the rule detail page including scope, threshold, notifications, etc., please see the detailed article Rule Detail page.

Why is it Important?

The Custom Query Rule is essential for:

Complex Data Validations – Ensuring data integrity using custom conditions.
Advanced Data Analytics – Running complex aggregations and transformations.
Tailored Reporting – Extracting and monitoring specific insights from data.

For example, users can create a query to:

Identify duplicate customer records by checking for repeated Customer_IDs.
Verify if order totals match invoice amounts across multiple tables.
Detect missing transactions in a financial dataset by checking sequential order numbers.

How to Configure the Custom Query Rule

Step 1: Log in to DvSum

Navigate to the Dictionaries > Database Tables tab.
Select the relevant Data Source and Table Name.

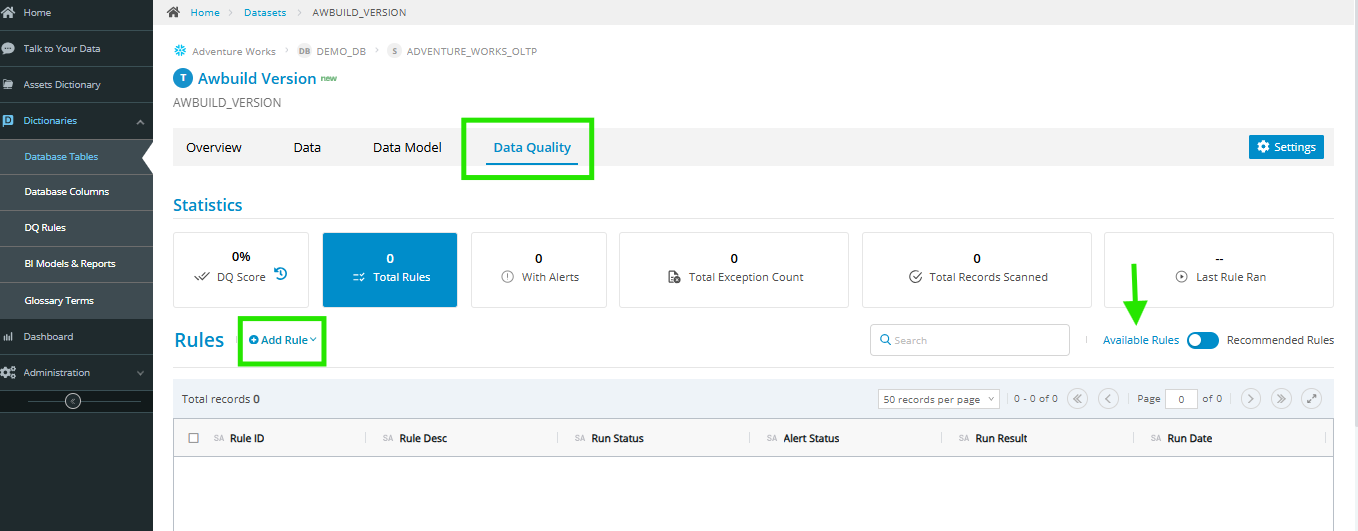

Step 2: Access the Data Quality Tab

Select the Table Name.
Click on the Data Quality tab.
Choose Available Rules.

Step 3: Add a New Rule

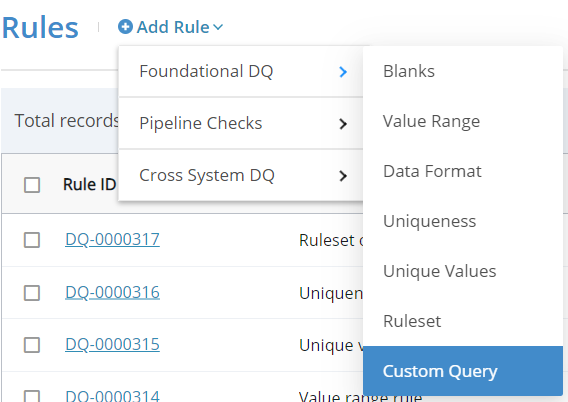

Click the ⊕ Add Rule button.
Select the Foundational DQ category.
From the list of options, choose Custom Query.

Step 4: Configure the Custom Query

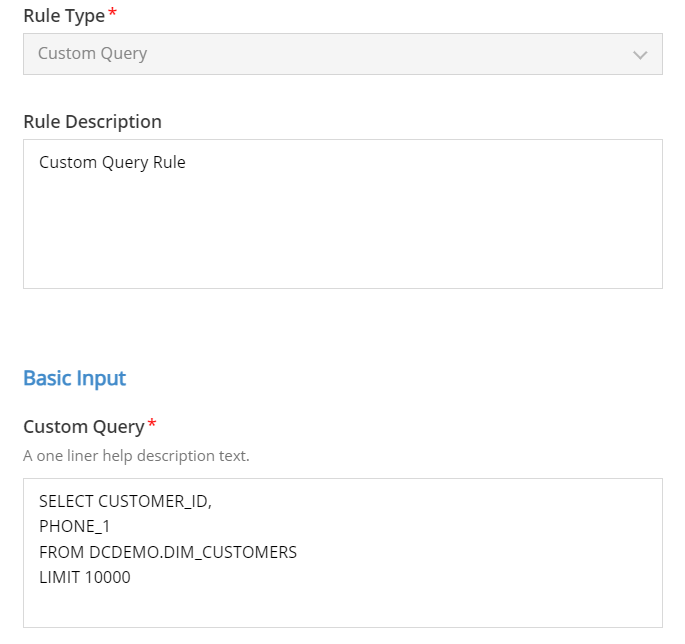

In the Rule Wizard’s Basic Input section, provide:

Rule Description – A clear description of the rule’s purpose.
Custom Query – The SQL query you want to execute.

Example SQL Query:

SELECT Customer_ID, COUNT(*)
FROM Orders
GROUP BY Customer_ID
HAVING COUNT(*) > 1;

This query checks for duplicate Customer_IDs in the Orders table.

Using Stored Procedures (for Oracle Data Sources Only)

When creating a Custom Query rule for an Oracle data source, you can optionally enable the Stored Procedure checkbox.

This allows the rule to execute a database stored procedure instead of a regular SQL SELECT query.

Stored Procedure Overview
When the Stored Procedure option is enabled, the Data Quality rule will execute a stored procedure that returns its result as a REFCURSOR.
This means the procedure must output a result set (similar to a query output) that DvSum can read and use for Data Quality checks.

How it Works

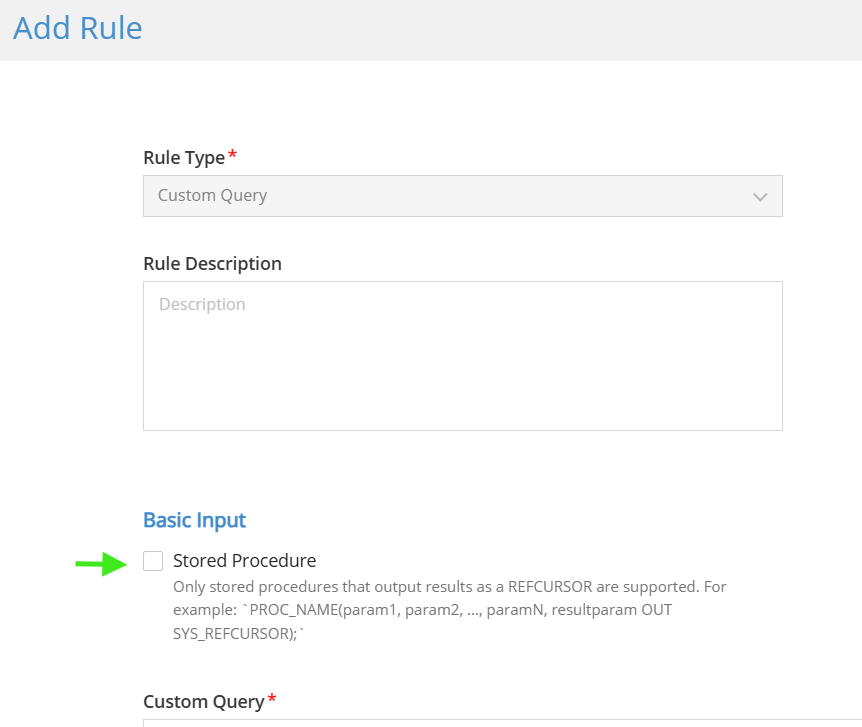

Select the Stored Procedure checkbox under Basic Input.
Enter the procedure name and its parameters in the Custom Query field.
Example:

PROC_NAME(param1, param2, ..., resultparam OUT SYS_REFCURSOR);
The platform executes this procedure on the connected Oracle database.
The result returned via the SYS_REFCURSOR will be used as the dataset for the rule.

Note: The Stored Procedure option is available only for Oracle data sources. For other data sources, use a standard SQL query instead.

Step 5: Validate & Execute

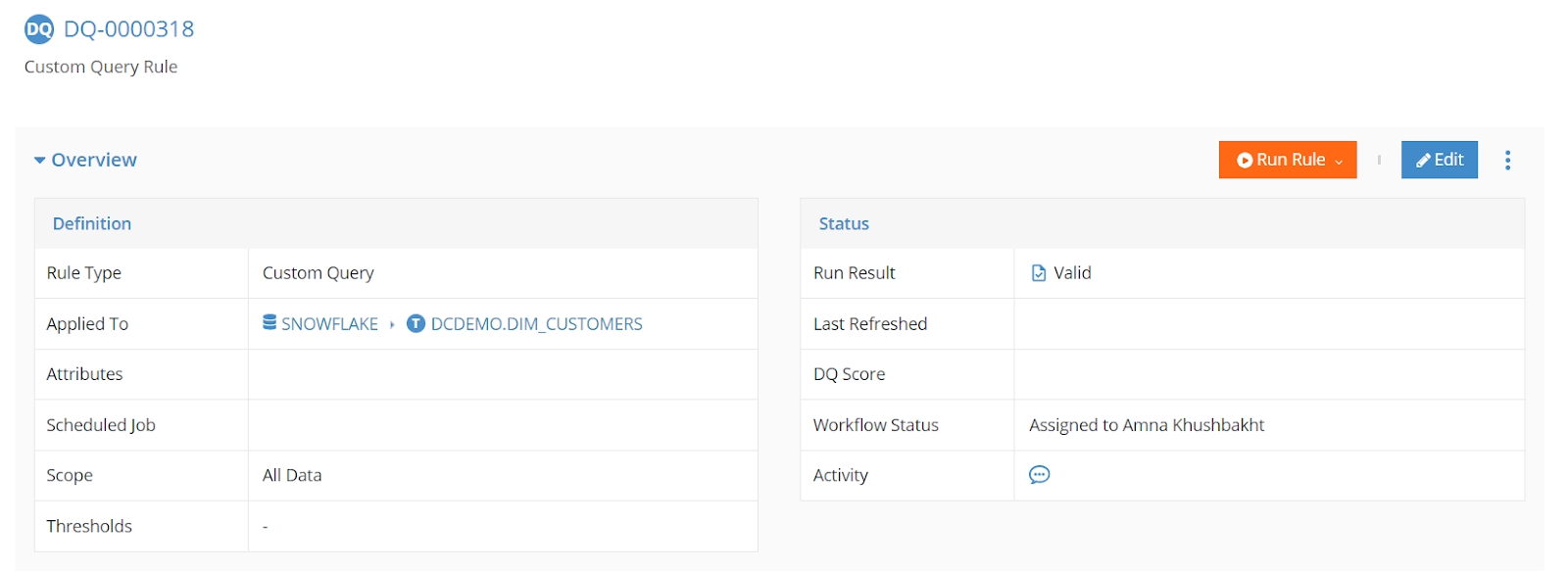

After saving the rule, review its definition.
Click Run to execute and test the rule.
View the results and refine the query if needed.
