Foundational DQ - Ruleset

In this Article:

• Introduction
  • Why is it Important?
• How to Configure the Ruleset Rule
  • Step 1: Log in to DvSum
  • Step 2: Access the Data Quality Tab
  • Step 3: Add a New Rule
  • Step 4: Basic Input Configuration
  • Step 5: Validate & Execute

Introduction

The Ruleset Rule is a foundational Data Quality (DQ) check that combines three key validation rules:

• Blanks Check – Ensures that critical fields are not left empty.
• Value Range Check – Restricts values within a defined range.
• Data Format Check – Verifies that data follows a specified format (e.g., numerical, string, date).

By applying these checks, the Ruleset Rule helps maintain data accuracy, consistency, and completeness.

For further information about the rule detail page including scope, threshold, notifications, etc., please see the detailed article Rule Detail page.

Why is it Important?

The Ruleset Rule plays a crucial role in preventing data quality issues, such as:

• Missing Data – Ensuring key fields like Customer_ID are always populated.
• Incorrect Values – Restricting inputs to valid predefined ranges.
• Inconsistent Formatting – Standardizing data representation for consistency across datasets.

For example:

• Customer_ID cannot be blank, ensuring no missing records.
• The “Country” column must contain only two-character country codes (e.g., US, UK).
• Date fields should follow the “YYYY-MM-DD” format.

By enforcing these rules, organizations can avoid incomplete or inaccurate records that may impact reporting and decision-making.

How to Configure the Ruleset Rule

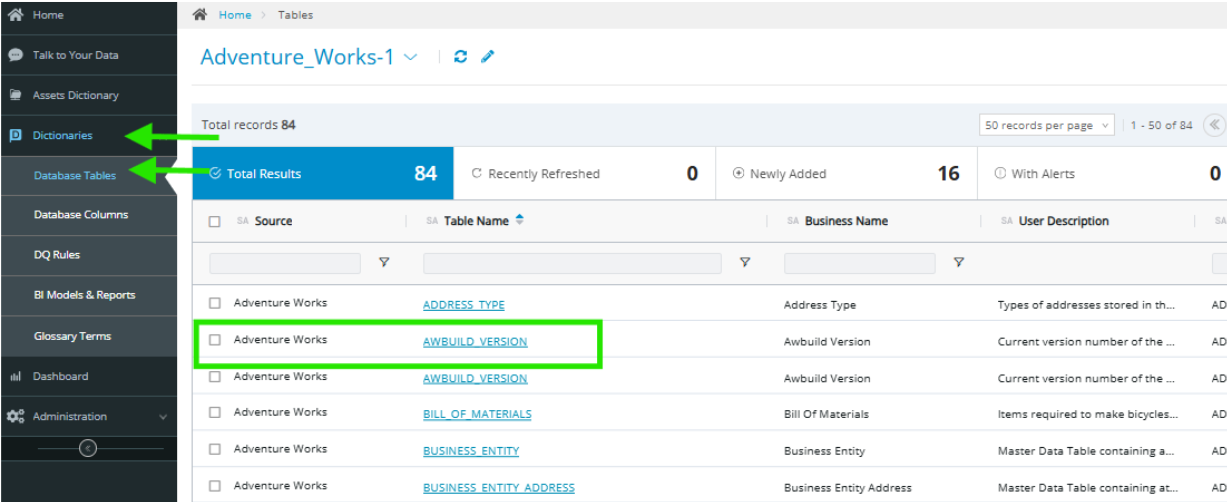

Step 1: Log in to DvSum

• Navigate to the Dictionaries > Database Tables tab.

• Select the relevant Data Source and Table Name.

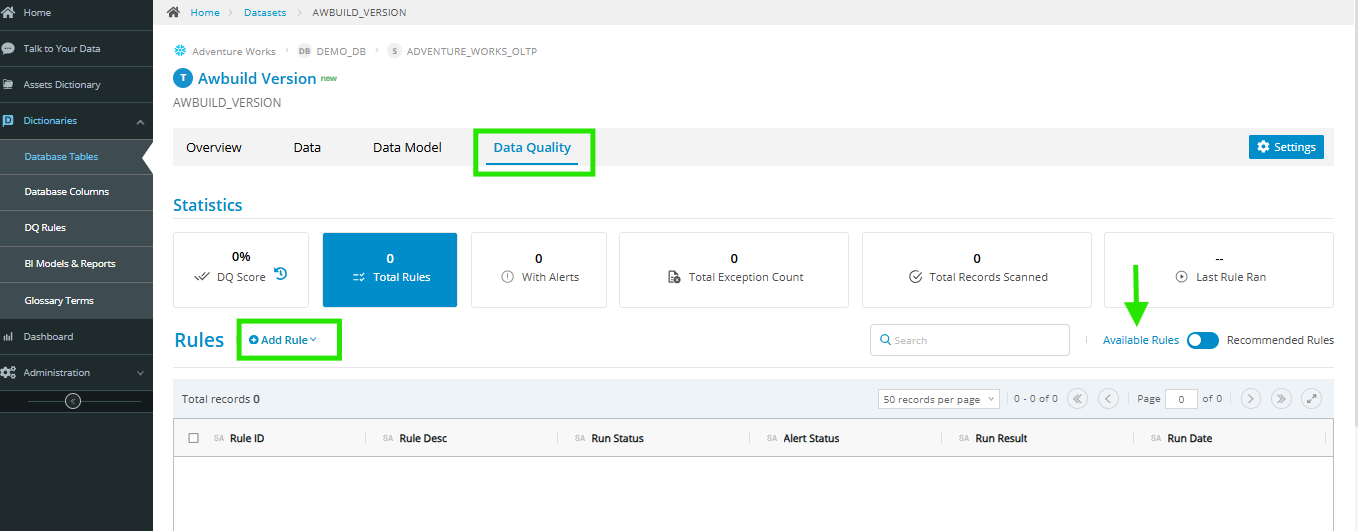

Step 2: Access the Data Quality Tab

• Select the Table Name.

• Click on the Data Quality tab.

• Choose Available Rules.

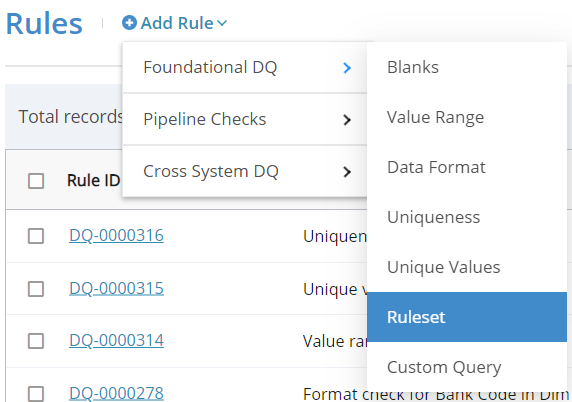

Step 3: Add a New Rule

• Click the ⊕ Add Rule button.

• Select the Foundational DQ category.

• From the list of options, choose RULESET.

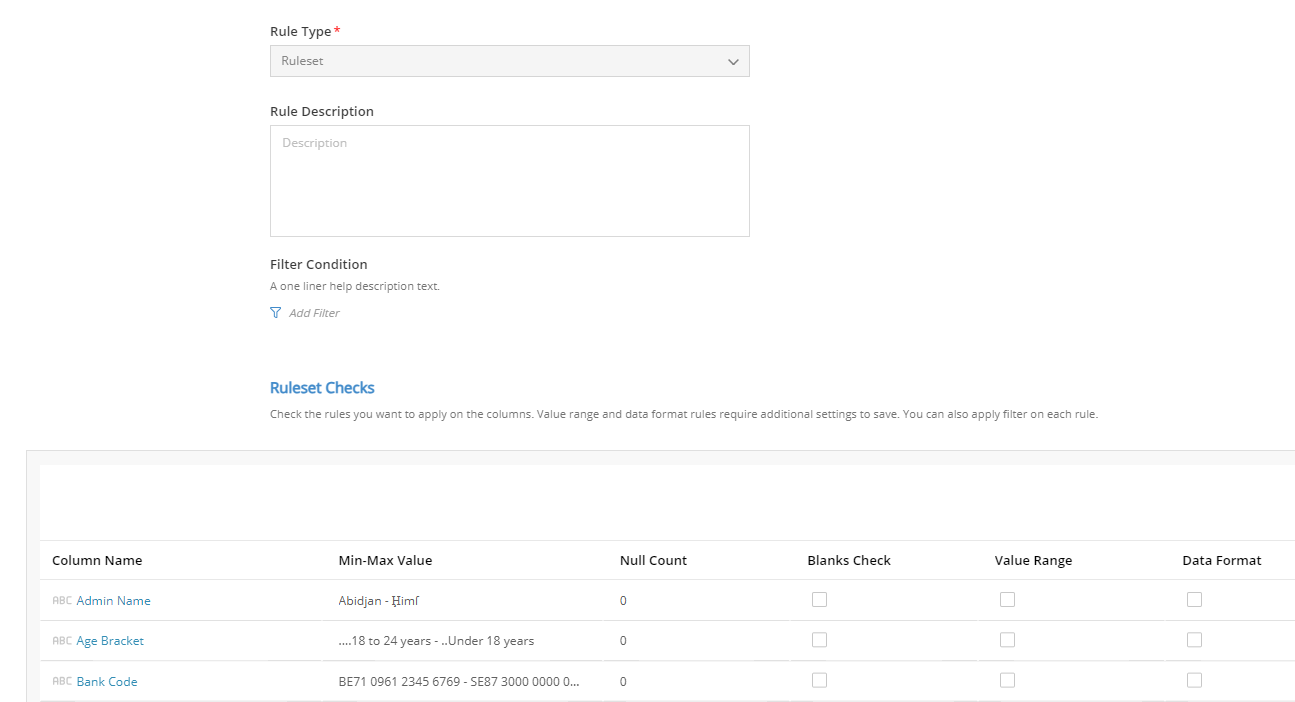

Step 4: Basic Input Configuration

In the Rule Wizard’s Basic Input section, fill in the following details:

• Rule Description: Provide a meaningful name for the rule.

• Ruleset Checks: Choose the specific checks you want to apply:

  • Blanks Check – Ensures no empty values in selected columns.

  • Value Range Check – Restricts values to a specified range.

  • Data Format Check – Verifies consistency in data format.

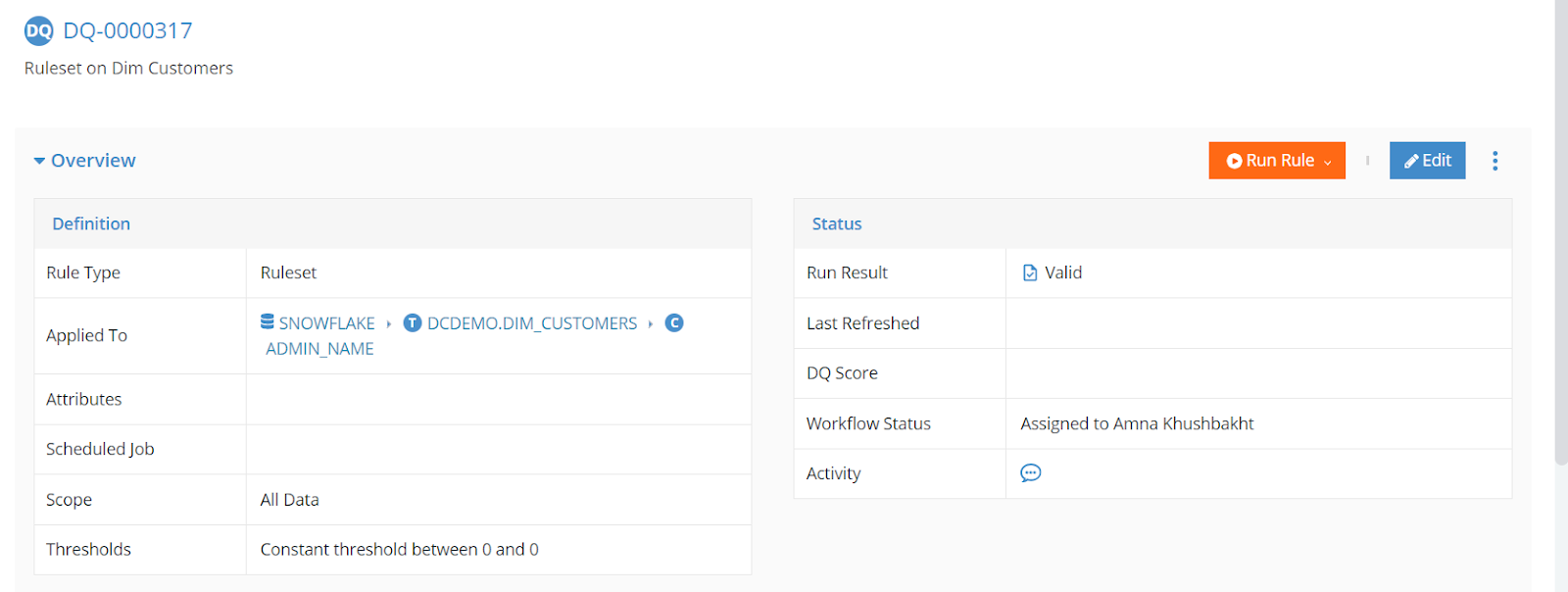

Step 5: Validate & Execute

• After saving the rule, review its definition.

• Click Run to execute and test the rule.
