Database Columns

In this Article

• Overview
• Database Columns
• Accessing the Field Dictionary
• Database Columns Details
• Column Detail Page
  • Overview Tab
  • Profiling Tab
  • Data Quality Tab

Overview

The Database Columns in DvSum provides users with a comprehensive view of all data columns across different sources and datasets. It consolidates metadata, profiling details, and data quality insights into a structured interface, enabling users to explore and manage their data efficiently.

Accessing the Database Columns

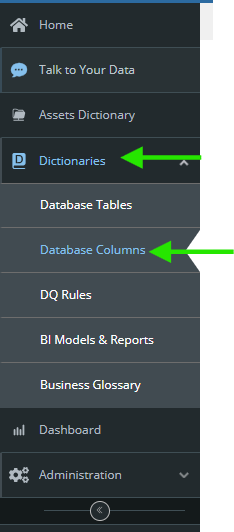

On the left-side menu of the DvSum application, Go to the Dictionary dropdown and select the Database Columns to navigate to its detailed page.

This page displays all column-specific details, provided that the sources are connected and cataloged.

Database Columns Details

The Field Dictionary provides an organized view of column-related metadata, including:

• Source
• Table
• Column Name
• Business Name
• Column Description
• Data Type
• Profiling Info
• Range Value
• DQ Score
• Column Sub-type

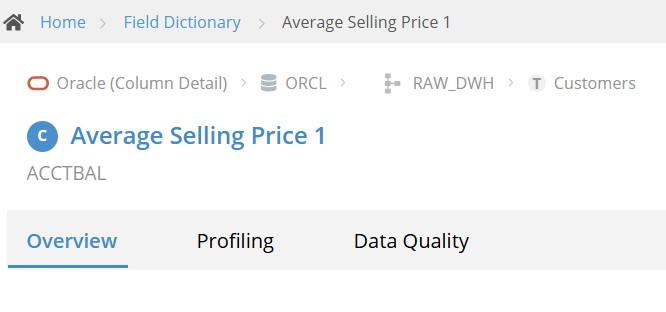

Column Detail Page

Clicking on a Column Name opens the Column Detail Page, which contains three tabs:

1. Overview – Displays general metadata and descriptions.
2. Profiling – Shows profiling statistics and insights.
3. Data Quality – Highlights rule violations and data quality metrics.

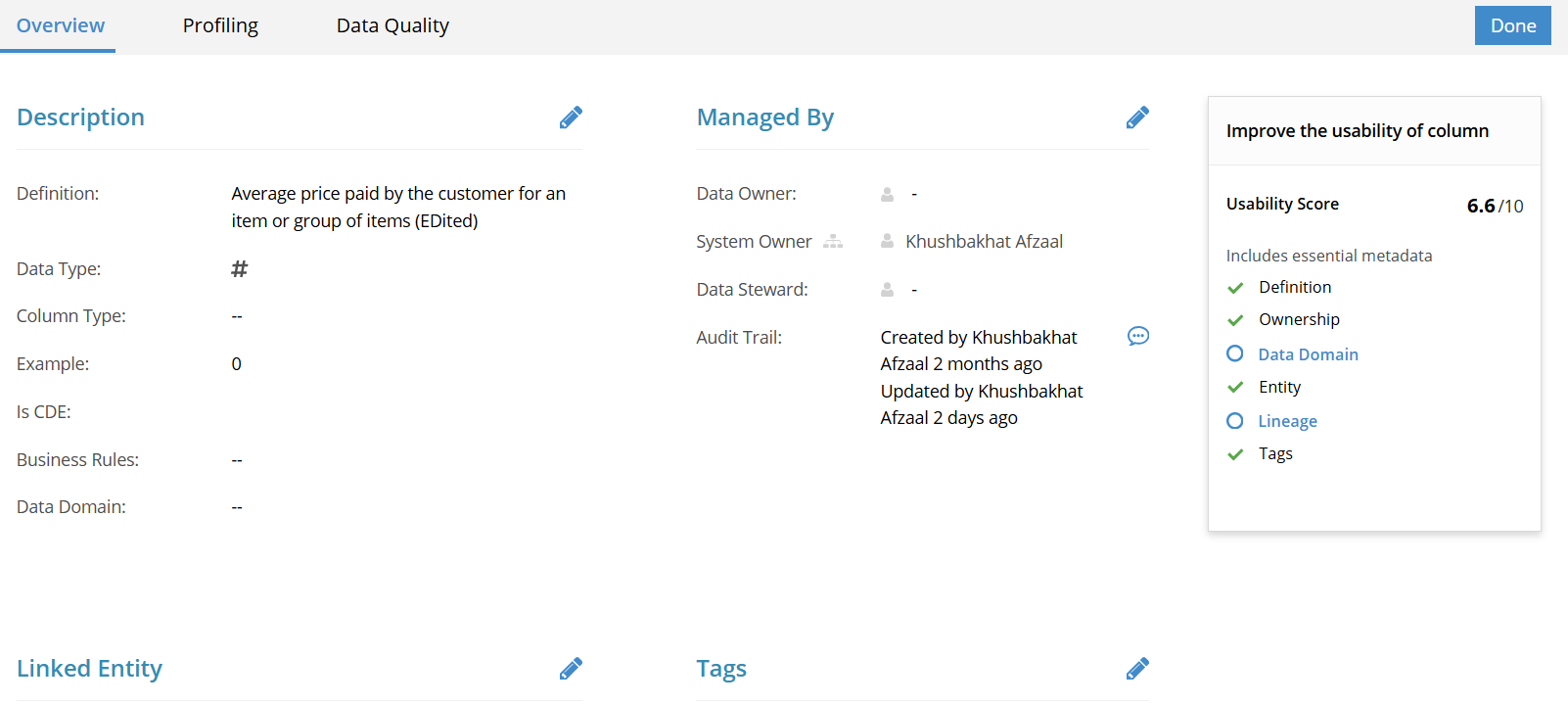

Overview Tab

The Overview tab in the Field Dictionary comprises several key sections that provide a structured summary of column attributes and configurations. These sections typically include:

• Column Name & Description: Displays the name of the column along with a brief description of its purpose.
• Data Type: Specifies the type of data the column holds (e.g., String, Integer, Boolean).
• Source & Lineage: Identifies the origin of the column and traces its transformation across datasets.
• Usage & Dependencies: Indicates where and how the column is utilized within the system.
• Constraints & Validation: Lists any applied rules, such as mandatory columns, unique constraints, or default values.
• Tags & Classification: Allows categorization of columns for better organization and governance.
• Additional Info: Displays any extra details relevant to the column.
• Similar Columns: Suggests columns with similar characteristics to aid in analysis and comparison.

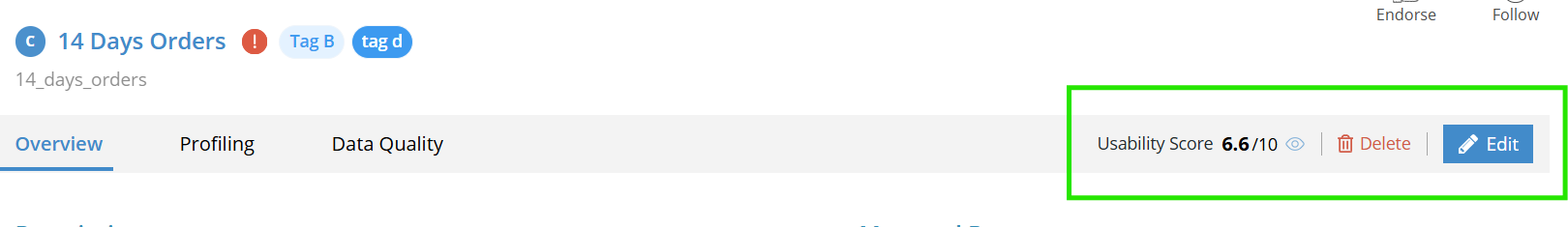

Editing and Deleting a Column
On the Overview page, users have the option to either Edit or Delete a column.

• Edit: Clicking the Edit button (represented by a blue button with a pencil icon) allows users to modify the column’s properties, such as its name, tags, or other metadata.

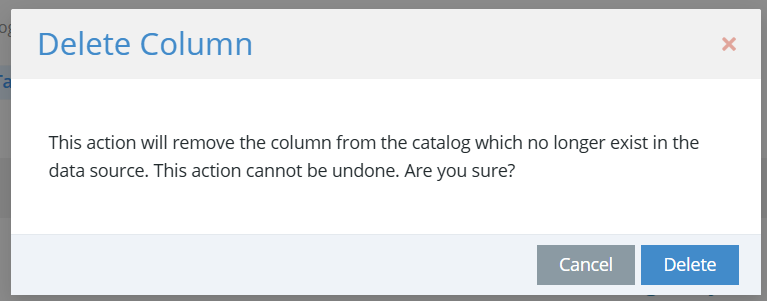

• Delete: The Delete button (represented by a red trash bin icon) enables users to remove the column permanently. Users should exercise caution while deleting, as this action may not be reversible.

Profiling Tab

The Profiling tab in the Field Dictionary contains the following sections:

• Statistics: Displays key metrics such as record count, number of empty/null values, unique values, and completeness percentage.
• Information: Provides details including the last profiled date, min-max values, whether the column is a primary key or nullable, technical data type, column position, size, and the number of fractional digits.
  Note: The Min-Max values depend on the column's data type. For string data types, the minimum and maximum values are determined based on lexicographical order.
• Visualization: Includes graphical representations of data distributions, with options to view distribution and pattern insights.

  Histogram time intervals automatically determined based on the span of date values:

  • 0–1 day → Hourly

  • 2–30 days → Daily

  • 31–60 days → Weekly

  • 61–730 days → Monthly

  • 731–1460 days → Quarterly

  • Over 1460 days → Yearly

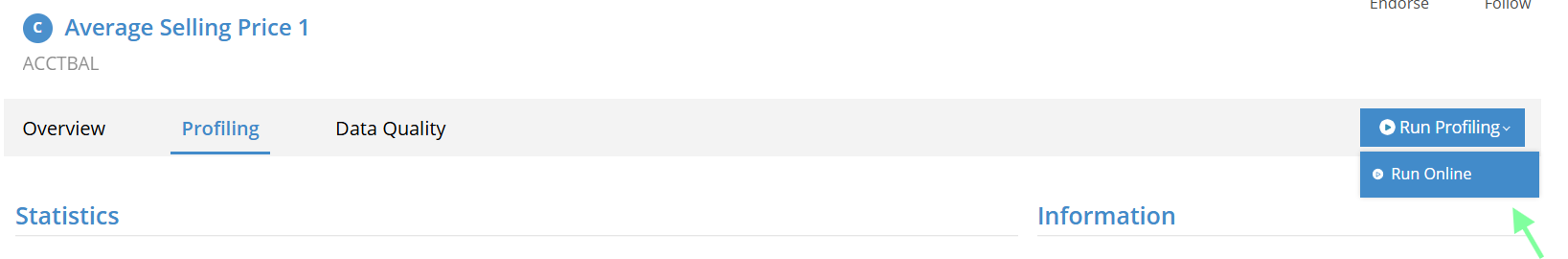

• Run Profiling: An option is available to initiate online profiling for updating column statistics and insights.

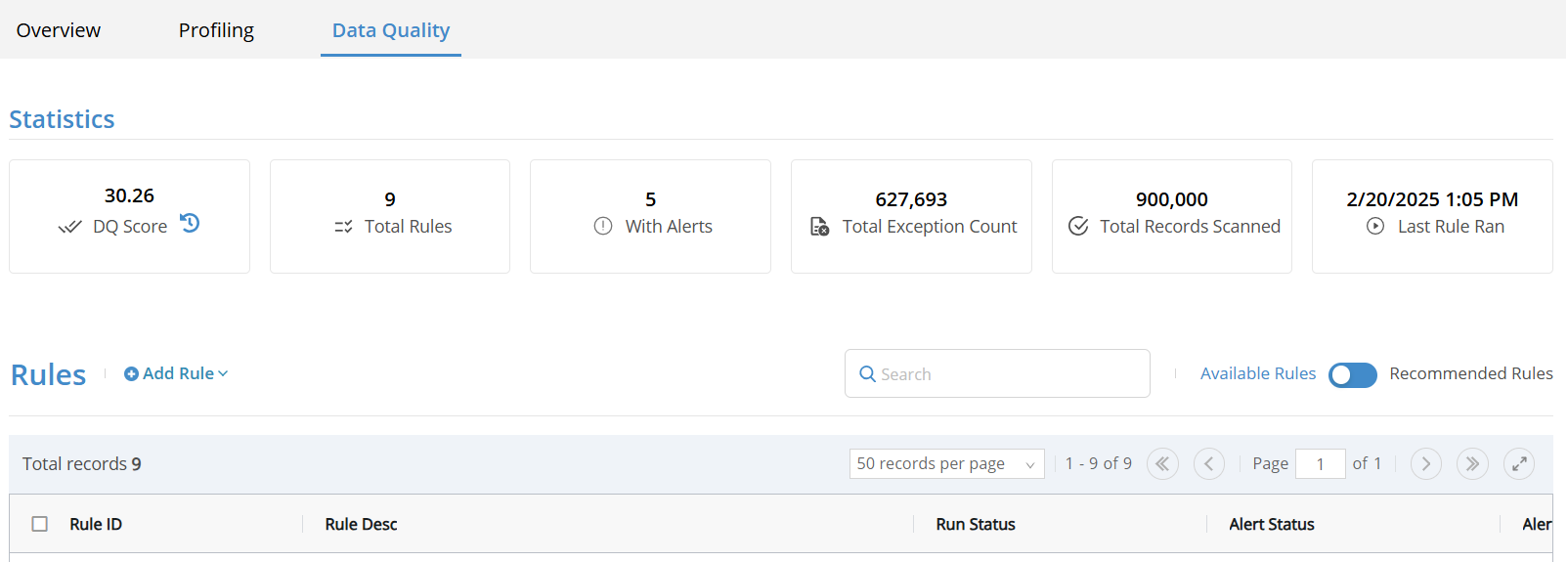

Data Quality Tab

The Data Quality tab in the Field Dictionary contains the following sections:

• Statistics: Displays key metrics such as DQ Score, total rules, rules with alerts, total exceptions, total records scanned, and last rule execution status.
• Rules: Lists all data quality rules applied to the column, including details such as rule ID, description, run status, alert status, and exception count.
• Add Rule: Provides an option to add new data quality rules for monitoring and validation. Only the following three rules can be applied:
  • Blanks: Checks for missing or empty values in the column.
  • Value Range: Ensures that data falls within a specified range.
  • Data Format: Validates the format of the data based on predefined patterns.

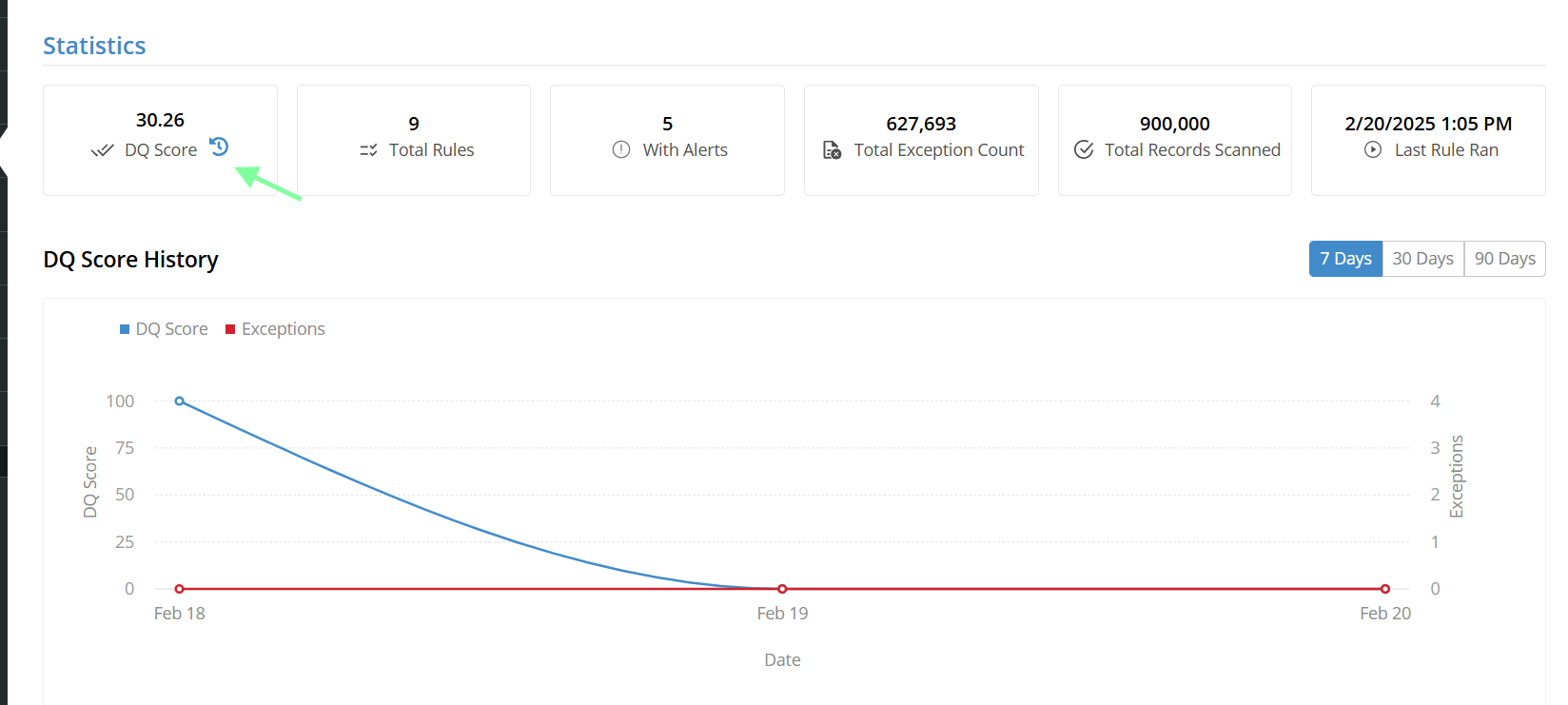

DQ Score History

Clicking on the arrow icon history is displayed.

Learn more about the Rules section in Data Quality tab here

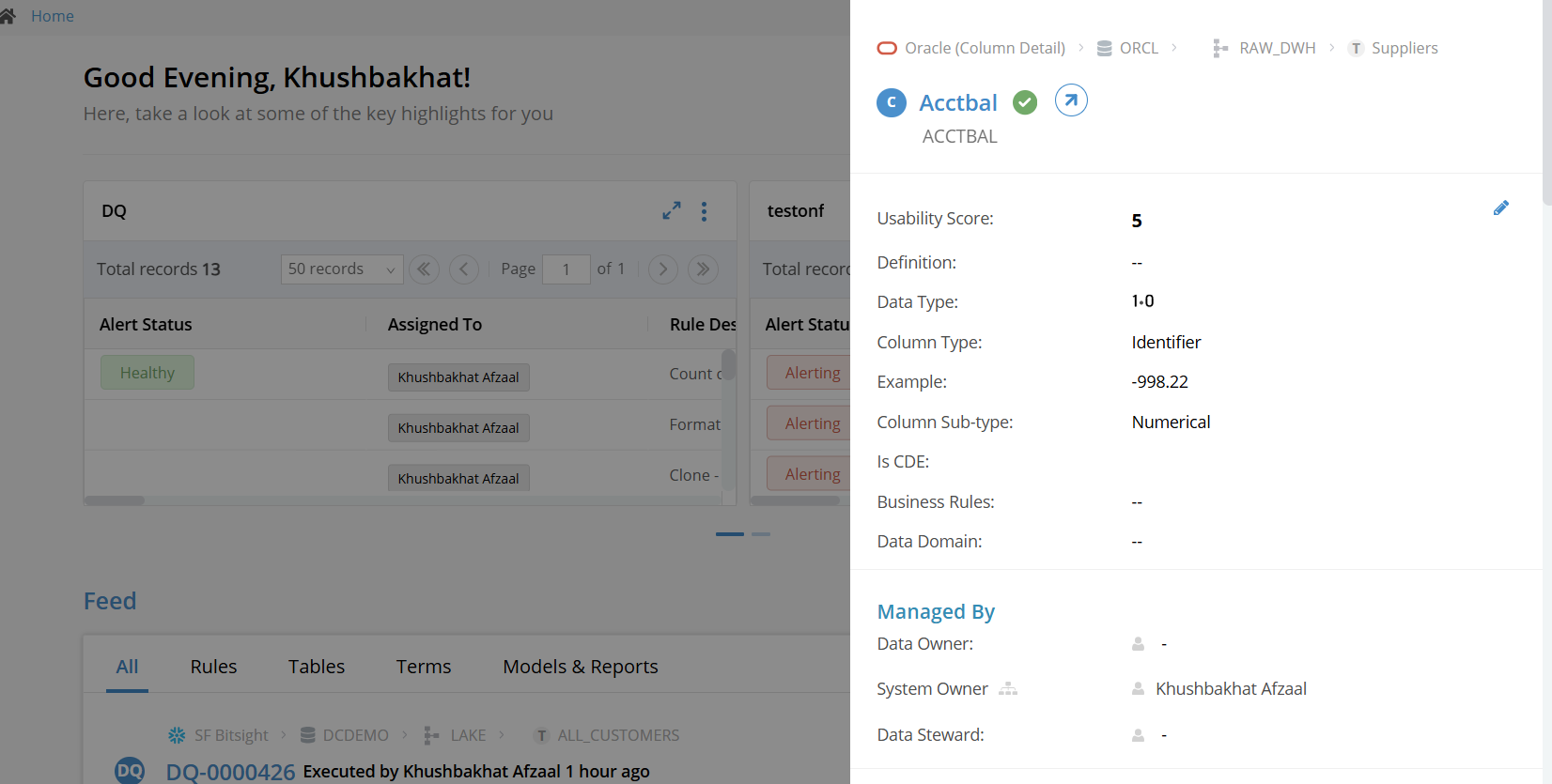

Field Reference Page

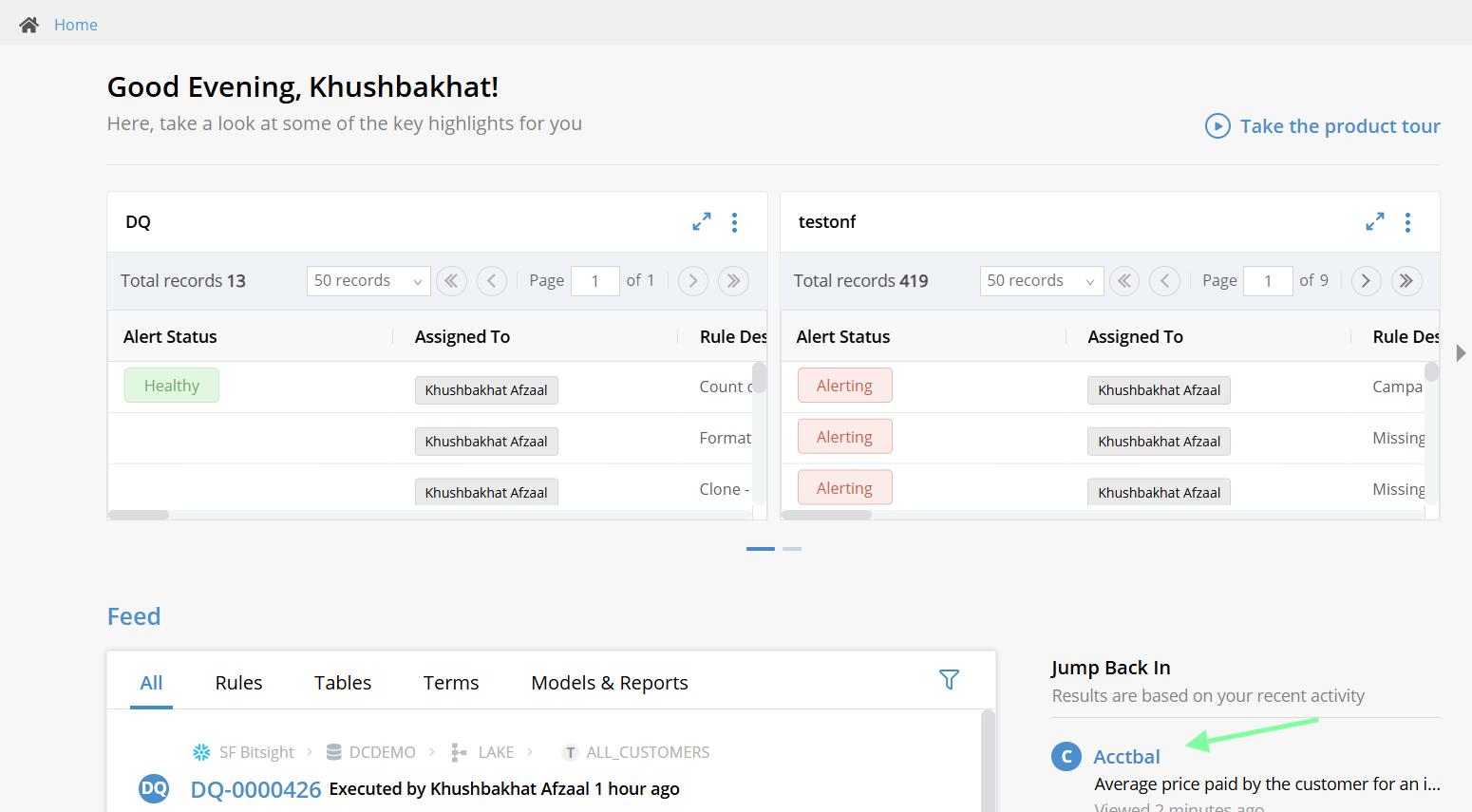

The Field Reference page appears when a user clicks on a column name from the homepage.

It slides out from the right side of the screen, displaying relevant information about the selected column.
