Enabling Query History for Data Sources

Avatar
DvSum Support
Follow

In This Article

Introduction

Query history plays a vital role in data lineage formation within applications. By capturing the details of query execution it allows for precise tracking of how data flows and evolves. This article provides a detailed guide to enabling query history across major data platforms such as Databricks, SQL Server, Azure SQL, Azure Synapse, PostgreSQL, and Snowflake. It also touches on additional considerations for databases where query history is enabled by default, such as Oracle and Netezza.

Whether working with on-premises databases or cloud-based solutions, this guide will help you configure query history to ensure seamless lineage formation and support effective data analysis and governance.

1. Enable Query History on Databricks

Query history plays a vital role in data lineage formation within applications. By capturing the details of query execution it allows for precise tracking of how data flows and evolves. This article provides a detailed guide to enabling query history across major data platforms such as Databricks, SQL Server, Azure SQL, Azure Synapse, PostgreSQL, and Snowflake. It also touches on additional considerations for databases where query history is enabled by default, such as Oracle and Netezza.

Whether working with on-premises databases or cloud-based solutions, this guide will help you configure query history to ensure seamless lineage formation and support effective data analysis and governance.

1.1. Choose an Authentication Method

To activate Query History in Databricks for lineage tracking, follow these essential steps:

  • Authenticate using one of the supported methods:

    • Personal Access Token (PAT)

    • OAuth Client Credentials (Client ID & Secret)

  • Assign necessary permissions at multiple levels:

    • Catalog

    • Cluster

    • SQL Warehouse

  • (Optional) Verify access by executing a validation query or making an API call to confirm that historical query data is being captured successfully.

1.1.1 Personal Access Token

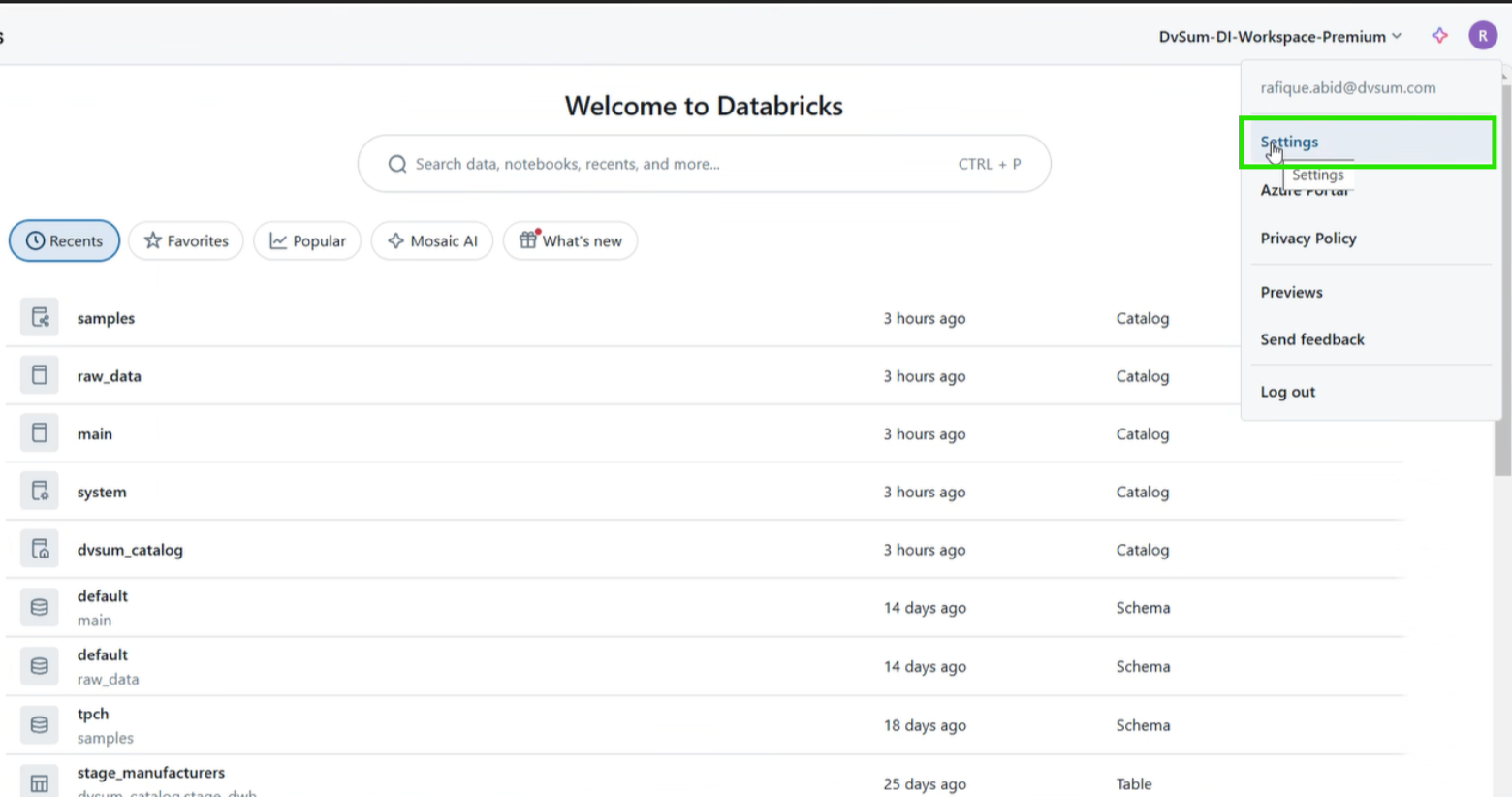

  1. Open your workspace’s Admin Settings (click your username in the top bar > Admin Settings).

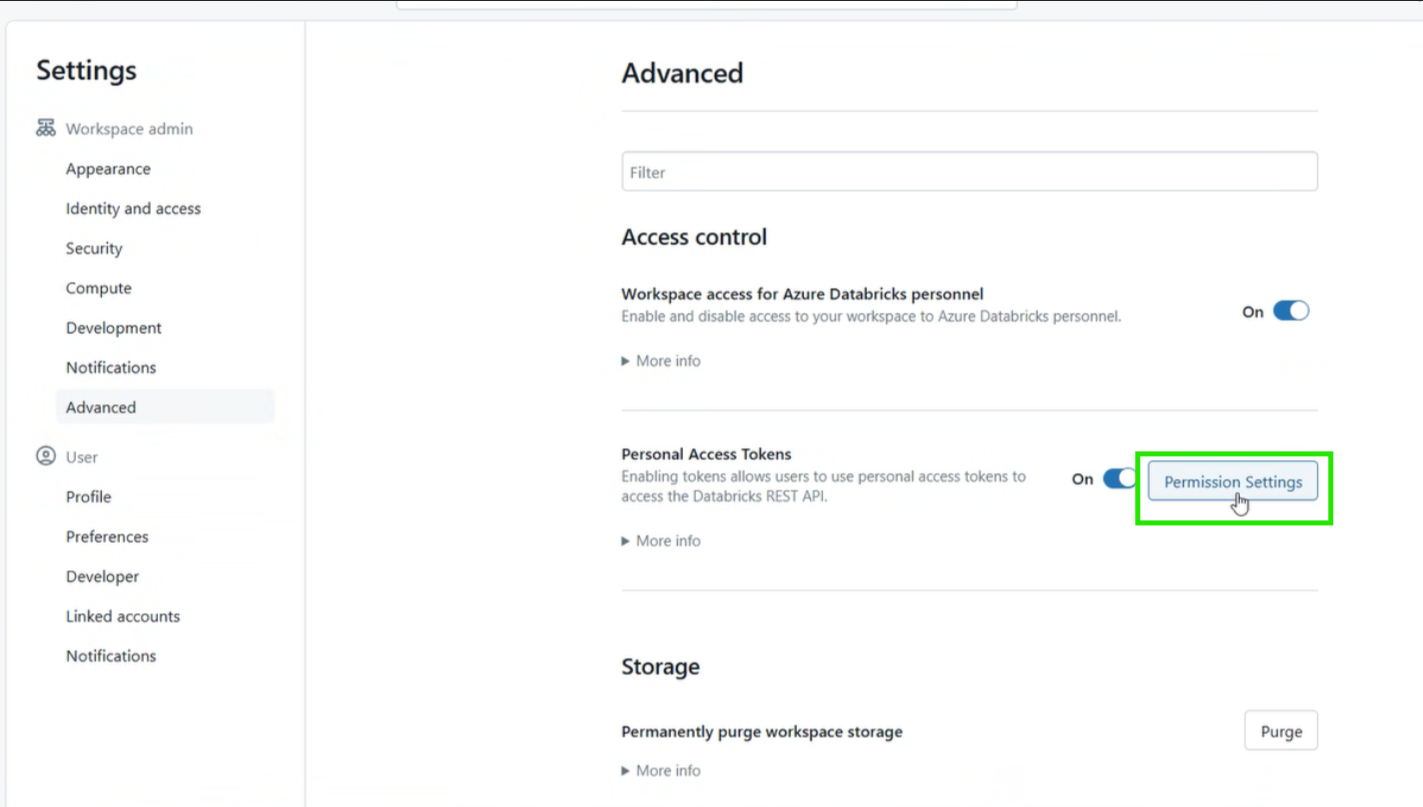

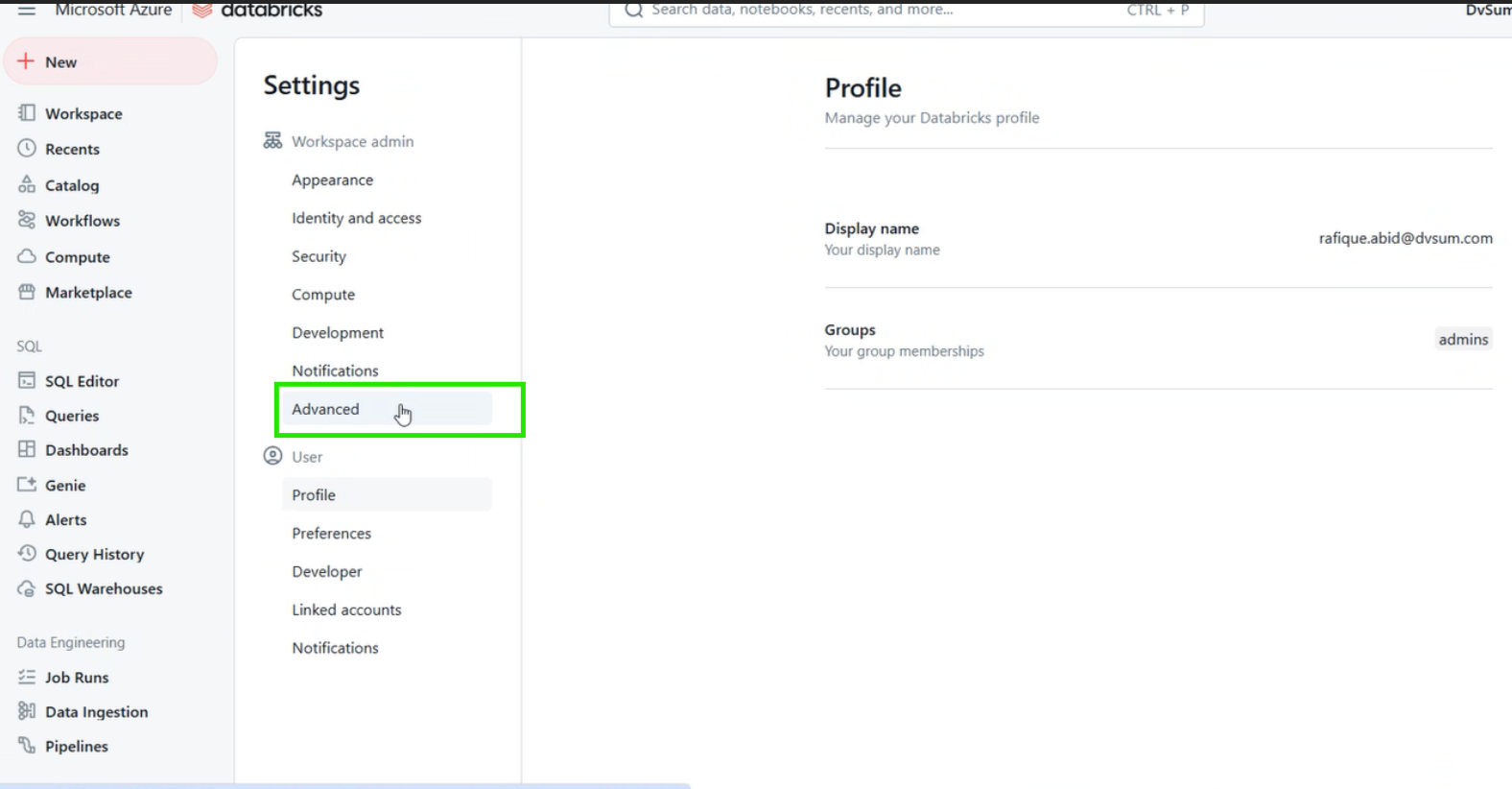

  2. Go to the Advanced tab.

  3. Under Access Control:

    • Enable Personal Access Token.

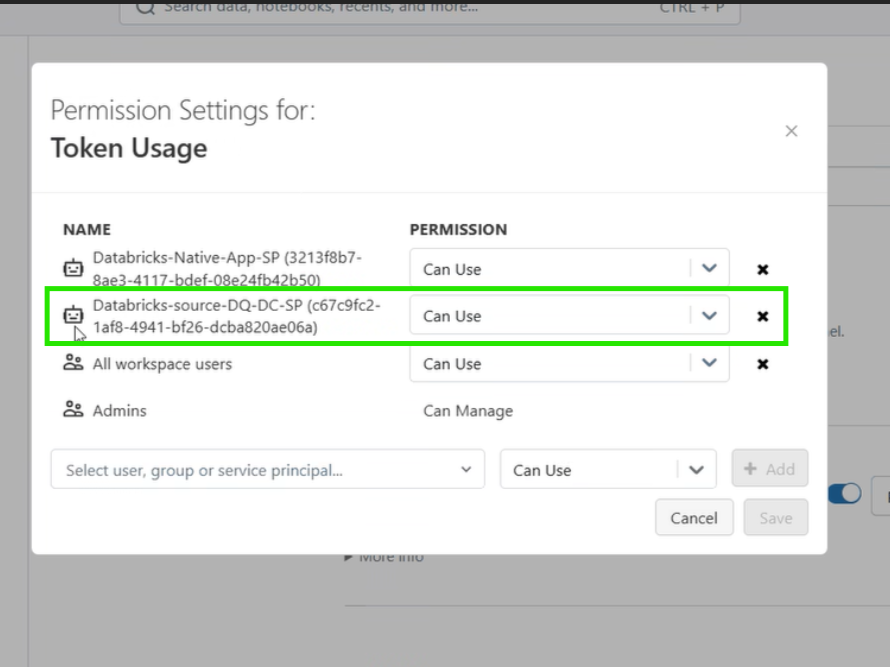

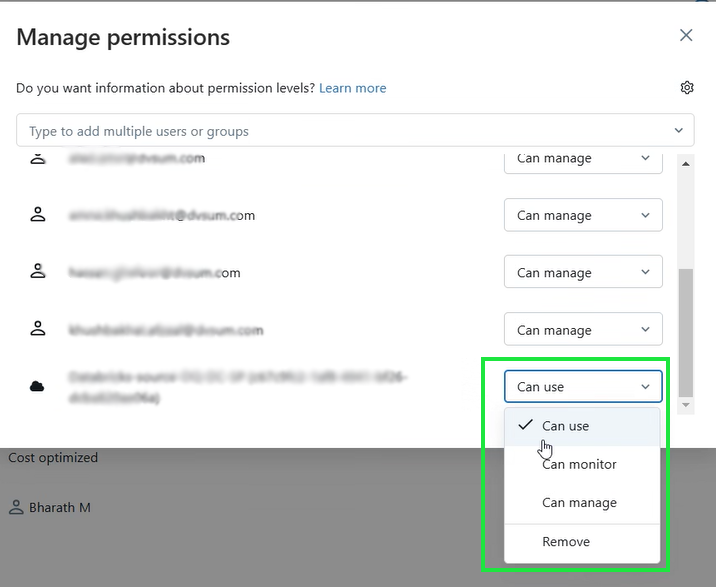

    • Click on Permission Settings.

    • Search for your user.

    • Assign the "Can Use" permission.

    • Click Add.

Once enabled, run the Lineage scans on the Databricks source to begin bringing in Lineage data into the application.

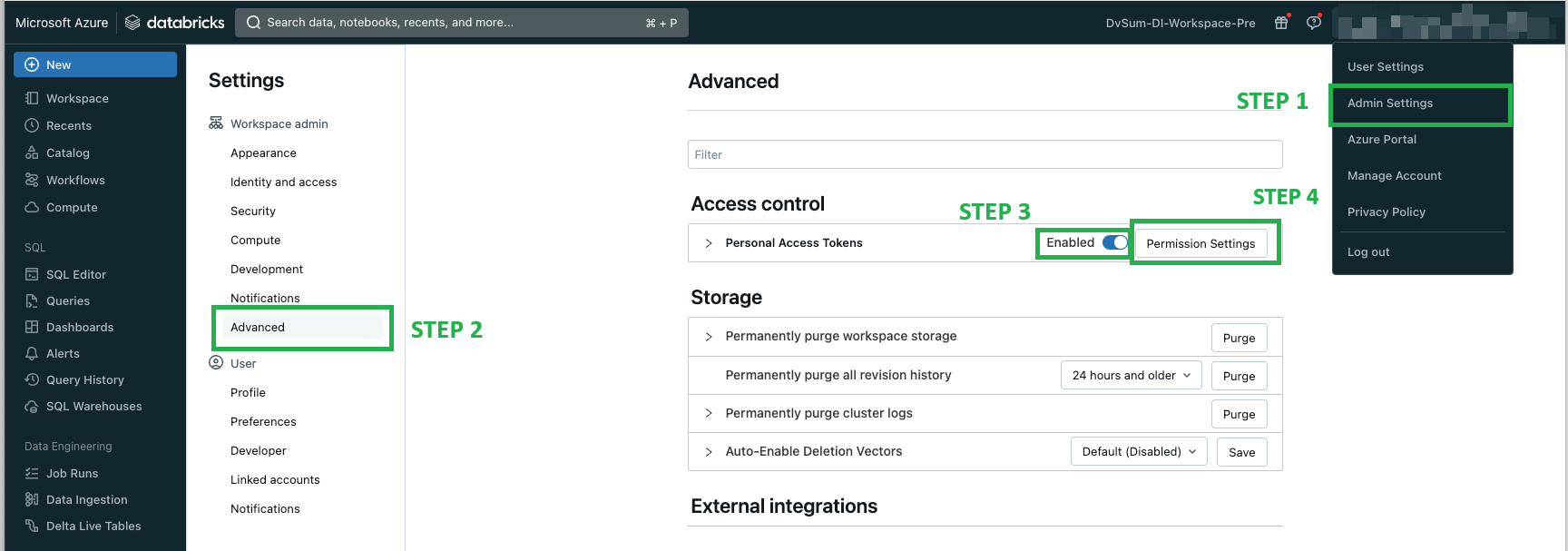

step 5.png

1.1.2 Client Secret Credentials

If using Client Secret credentials, ensure the following permissions are in place:

  1. Navigate to Admin Settings > Access Control.

  2. Assign the following minimum required permissions:

    • Workspace permissions: Can Use

    • Catalog access: Required permissions at the catalog level (see next section).

    • Compute access: Can Attach To for the cluster or SQL Warehouse permissions.




1.2. Enable Catalog access for Users

  • Log into your Databricks workspace.

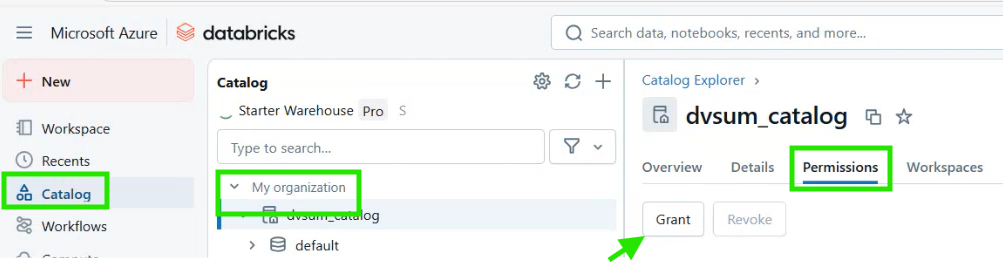

  • Click on the Catalog tab in the left menu.
  • Select the catalog configured for Lineage.
  • Open the Permissions tab.

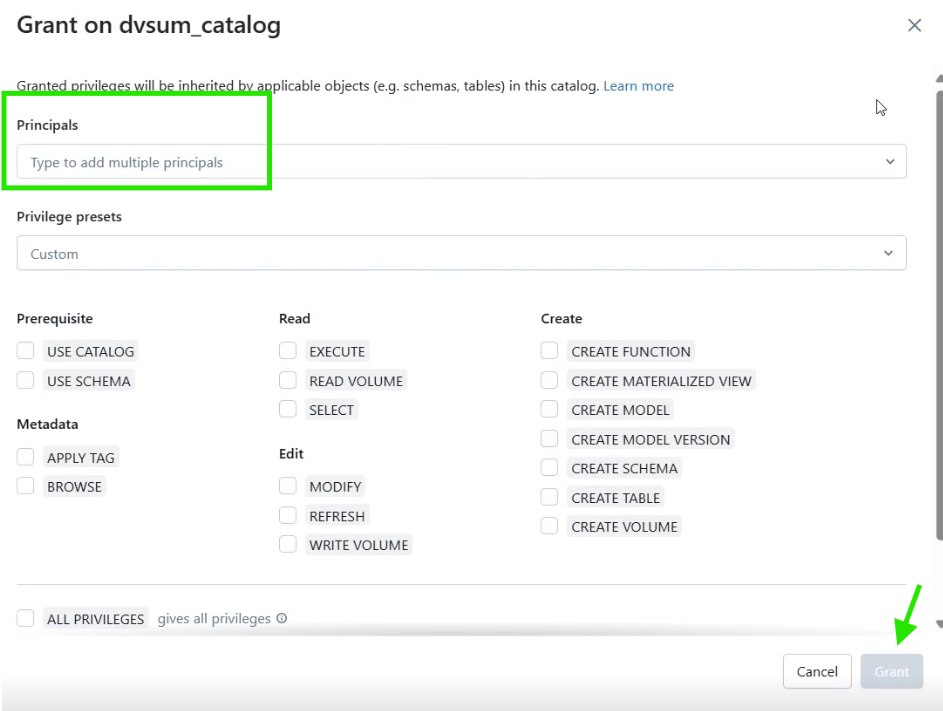

  • Click Grant.



  • Search for your user or service principal.
  • Grant the necessary privileges; at a minimum, SELECT and READ_METADATA are required.
  • Click Grant.



1.3. Enable cluster access for the User

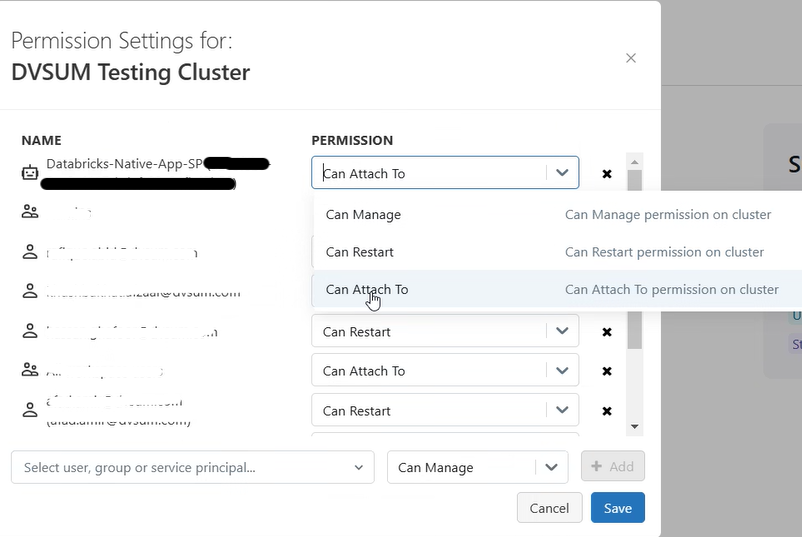

To configure the Compute cluster permissions:

  1. Navigate to the Permissions section.
  2. Select the relevant user or service principal.
  3. Set the permission to Can Attach To.

To configure the SQL Warehouse permissions:

  • Navigate to the Permissions
  • Assign the permission level Can Use



Databricks Validation Check :Did it work?

You can test access by calling the query history endpoint using curl:

'https://<DATABRICKS_HOST>/api/2.0/sql/history/queries' \
--header 'Authorization: Bearer <PAT/ OAUTH token>'

Replace <DATABRICKS_HOST> with your workspace URL and <PAT/ OAUTH token> with your personal access or OAuth token.



2. Enable Query History in SQL Server, Azure SQL, and Azure Synapse

Use the Query Store.

  • The Query Store is enabled by default for new Azure SQL Database and Azure SQL Managed Instance databases.
  • Query Store is not enabled by default for SQL Server 2016 (13.x), SQL Server 2017 (14.x), SQL Server 2019 (15.x). It is enabled by default in the READ_WRITE mode for new databases starting with SQL Server 2022 (16.x). To enable features to better track performance history, troubleshoot query plan related issues, and enable new capabilities in SQL Server 2022 (16.x), we recommend enabling Query Store on all databases.
  • Query Store is not enabled by default for new Azure Synapse Analytics databases.

Enabling the Query Store can be done in multiple ways.

2.1 Enable Query Store using SSMS

  • In Object Explorer, right-click a database, and then select Properties.
    Note: Requires version 16 or later of Management Studio

  • In the Database Properties dialog box, select the Query Store page.

  • In the Operation Mode (Requested) box, select Read Write.

2.2 Enable Query Store using Transact-SQL

Use the ALTER DATABASE statement to enable the query store for a given database. For example:

ALTER DATABASE <Your Database name>
SET QUERY_STORE (QUERY_CAPTURE_MODE = ALL);

In Azure Synapse Analytics, enable the Query Store without additional options, for example:

ALTER DATABASE <database_name>
SET QUERY_STORE = ON;

SQL Server, Azure SQL, Azure Synapse Validation Check: Did it work?

After completing the above steps, verify that query logging is properly enabled by running the following SQL query:

SELECT TOP 100 qsr.*
FROM sys.query_store_query qsr
LEFT JOIN sys.query_store_query_text qsrt
ON qsr.query_text_id = qsrt.query_text_id
LEFT JOIN sys.query_context_settings qcs
ON qcs.context_settings_id = qsr.context_settings_id
LEFT JOIN sys.schemas s
ON s.schema_id = qcs.default_schema_id;


3. Enable Query History in PostgreSQL

To enable query history in PostgreSQL, you can modify the configuration file (postgresql.conf) and use SQL statements for more fine-grained control.

3.1 Modify postgresql.conf

  • You need superuser privileges to edit this file.

  • You can locate postgresql.conf in your PostgreSQL data directory.

    Common locations include:

    • /etc/postgresql/<version>/main (Linux)
    • C:\Program Files\PostgreSQL\<version>\data (Windows)
  • Edit postgresql.conf
    • Set logging_collector to 'on'
    • Set log_statement to 'all' to track SQL queries. For reference, these are the valid values:
      • none (default): Log no statements.
      • ddl: Log data definition language (DDL) statements like CREATE, ALTER, and DROP.
      • mod: Log moderate-level statements, including DDL and most of the data manipulation language (DML) statements.
      • all: Log all statements, including SELECT, INSERT, UPDATE, DELETE, and more.

3.2 Use SQL Statements for Fine-Grained Control

If you want to enable or disable query history for specific databases or sessions, you can use SQL statements. This can be especially useful for debugging or auditing purposes. You can change logging settings on a per-session or per-database basis using the following SQL commands:

To enable query history for the current session only:

SET log_statement = 'all';

To enable query logging for a specific database (replace your_database with the actual database name):

ALTER DATABASE your_database SET log_statement = 'all';

To disable query logging for a specific database:

ALTER DATABASE your_database SET log_statement = 'none';

These SQL statements will take effect immediately for the current session or database.

Remember to be cautious with query history in production environments, as it can generate large log files and potentially impact performance. Always monitor your log files and adjust the log level as needed to balance the need for more information and the need for better performance.

PostgreSQL Validation Check: Did it work?

After completing the above steps, verify that query logging is properly enabled by running the following SQL query:



ELECT
pst.*
FROM pg_stat_statements pst
LEFT JOIN pg_database pd ON pst.dbid = pd."oid"
LEFT JOIN pg_catalog.pg_user pu ON pu.usesysid = pst.userid
LIMIT 10;

  • This query will return the recent queries logged in PostgreSQL. If it returns results, query logging is successfully enabled.

4. Enable Query History in Snowflake

Query history is always enabled in Snowflake. So the only task required is to make sure that the relevant user has access to the history.

The configured user should have access to SNOWFLAKE.ACCOUNT_USAGE.QUERY_HISTORY

By default, the SNOWFLAKE database is visible to all users; however, access to schemas in this database can be granted by a user with the ACCOUNTADMIN role using either of the following approaches:

Grant IMPORTED PRIVILEGES on the SNOWFLAKE database.

USE ROLE ACCOUNTADMIN;

GRANT IMPORTED PRIVILEGES ON DATABASE SNOWFLAKE TO ROLE SYSADMIN;
GRANT IMPORTED PRIVILEGES ON DATABASE SNOWFLAKE TO ROLE customrole1;

For more information regarding snowflake, the article Account Usage in Snowflake can be referred

Snowflake Validation Check: Did it work?

After completing the above steps, verify that query logging is properly enabled by running the following SQL query:



SELECT
QUERY_ID,
QUERY_TEXT,
DATABASE_NAME,
SCHEMA_NAME,
QUERY_TYPE,
USER_NAME,
EXECUTION_STATUS,
START_TIME,
END_TIME,
TOTAL_ELAPSED_TIME,
SESSION_ID
FROM SNOWFLAKE.ACCOUNT_USAGE.QUERY_HISTORY
WHERE START_TIME > (CURRENT_TIMESTAMP - INTERVAL '30 DAY')
LIMIT 10;

5. Enable Query History in MySQL

MySQL does not provide a built-in query history like some other databases, but query history can be tracked using the following methods:

5.1. Using the MySQL General Query Log

The General Query Log records all queries executed on the server.

Steps to Enable:

  1. Enable the general log:

    SET GLOBAL general_log = 'ON'; SET GLOBAL log_output = 'TABLE'; -- or 'FILE'

  2. If using the TABLE option, view the logs:

    SELECT * FROM mysql.general_log;

  3. If using the FILE option, check the log file location:

    SHOW VARIABLES LIKE 'general_log_file';

Considerations:

  • Enabling the General Query Log may impact performance.
  • Logs should be cleared regularly to avoid storage issues.

5.2 Using the MySQL Performance Schema

The Performance Schema tracks recent queries with performance-related details.

Steps:

  1. Enable the performance_schema in the MySQL configuration file (my.cnf or my.ini):

    [mysqld] performance_schema = ON
  2. Restart the MySQL server.

  3. Query the events_statements_history table for recent queries:

    SELECT * FROM performance_schema.events_statements_history;

  4. For a summary of all queries:

    SELECT DIGEST_TEXT, COUNT_STAR FROM performance_schema.events_statements_summary_by_digest ORDER BY COUNT_STAR DESC;

Additional Notes on Performance Schema Query History:

  1. Default Behavior:
    • The events_statements_history table stores only a limited number of entries, depending on the performance_schema configuration.

    • Check the current size limit:

      SHOW VARIABLES LIKE 'performance_schema_events_statements_history_size';
  2. Increasing History Size:
    • To retain more query history, adjust the events_statements_history_size parameter:

      • Edit the my.cnf or my.ini file:

        [mysqld] performance_schema_events_statements_history_size = 10000
      • Restart MySQL to apply changes.

    • Alternatively, change the size dynamically for the current session:

      SET GLOBAL performance_schema_events_statements_history_size = 10000;

After increasing the history size, more queries will be stored in events_statements_history.

MySQL Validation Check: Did it work?

After completing the above steps, verify that query logging is properly enabled by running the following SQL query:

SELECT ess.*
FROM performance_schema.events_statements_summary_by_digest ess
LEFT JOIN performance_schema.events_statements_history esh
ON ess.DIGEST = esh.DIGEST
LIMIT 10;

6. Enable Query History in Netezza

In Netezza, query history can be accessed using the HISTDB.HISTDBOWNER.NZ_QUERY_HISTORY table, which is part of the History Database (HISTDB). This advanced feature provides detailed historical information about queries, sessions, and system activity.

7. Query History in Oracle

Query History is enabled by default for Oracle, so no additional configuration is needed. The application lineage will be scanned automatically.

To verify query history in Oracle, run the following SQL query:

SELECT v.*
FROM v$sql v
LEFT JOIN all_users du ON v.PARSING_USER_ID = du.user_id
WHERE command_type IN (1, 2, 6, 7, 189)
AND ROWNUM < 10;
