Overview

DvSum provides a robust set of APIs that allow external systems to interact with the platform. These APIs can be used to:

Manage data elements (tables, fields, terms, etc.)
Trigger approval workflows
Automate repetitive tasks

Authentication is handled through AWS Cognito client credentials, ensuring secure machine-to-machine communication. This allows seamless integration with enterprise processes while maintaining high security standards.

Refer to DvSum API Documentation for comprehensive API documentation.

Authentication Methods

DvSum supports two OAuth2-based authentication methods for accessing its APIs.
Both methods use AWS Cognito’s client_credentials flow to obtain an access_token, and both provide access to the same set of APIs.
The key difference lies in who owns the credentials and how permissions (RBAC) are assigned.

Method 1: Service Authentication (Machine-to-Machine)

Uses OAuth2 Client Credentials flow via AWS Cognito.
Credentials (client_id and client_secret) are created under
Administration → Account → Application Security → Manage OAuth2 Clients.
Represents a service principal with its own identity.
Permissions are assigned directly to the auth client. No roles involved.
Ideal for automated workflows, background jobs, or system integrations without user involvement.

Method 2: User-Based Authentication

Also uses OAuth2 Client Credentials flow via AWS Cognito.
Requires updating the role to allow API Access and associating scopes with the role.
Credentials (client_id and client_secret) are created under
My Settings → API Credentials for individual users.
Tokens inherit user-specific roles and permissions via RBAC.
Suitable for scenarios requiring user context, auditing, or personalized access control.

Add a Client

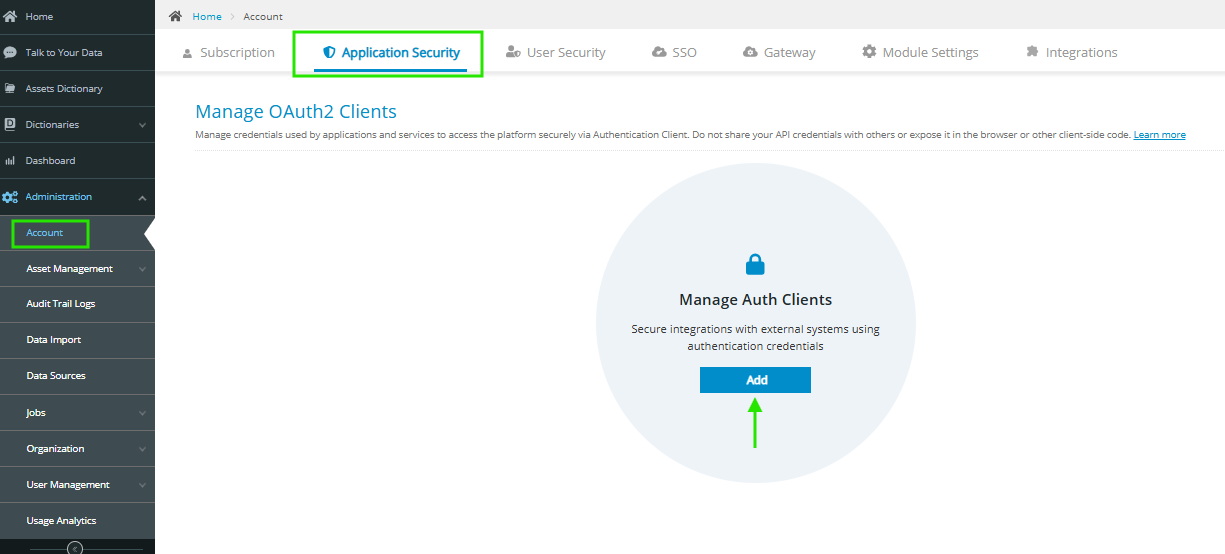

Navigate to Administration → Account → Application Security → Manage OAuth2 Clients and click Add.

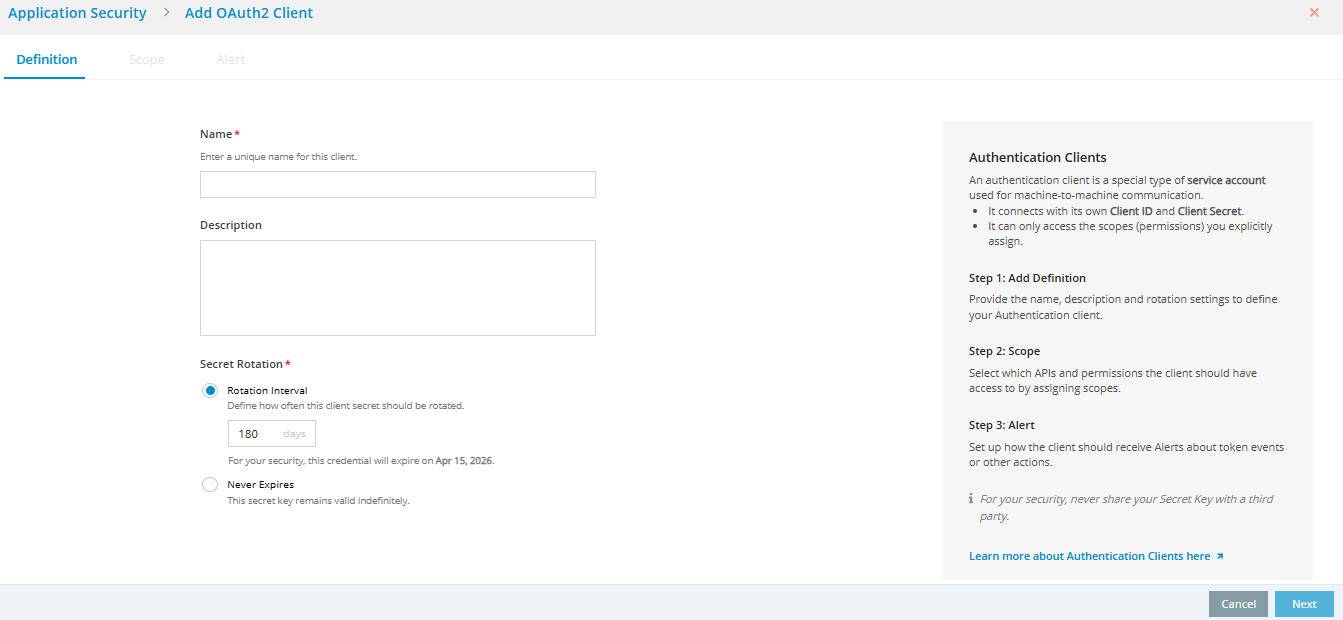

Definition

Provide a Name for the OAuth client and an optional Description.

Set the Secret Rotation Interval to define the duration after which the credentials expire. The interval can be set from 7 days to 1 year.

Alternatively, select Never Expires. A warning message highlights that indefinite credentials increase security risks, and regular rotation is recommended.

These are machine-to-machine credentials, that are not tied to any user account. They act as independent identities for scripts or background processes accessing DvSum APIs.

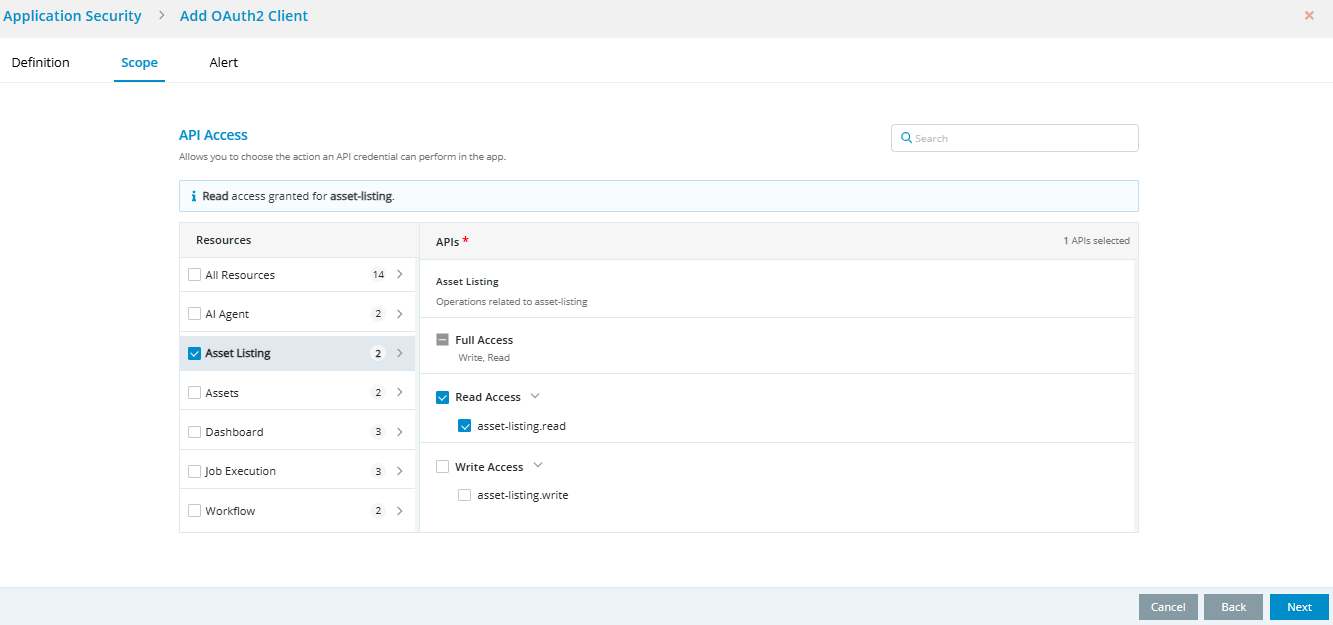

Scope

Select which APIs the client should have access to:

All Scopes – grants access to all APIs.
Specific Scopes – grant access only to selected APIs.

Access Level:

Read access is enabled by default.
Write access can be enabled where applicable (e.g., Asset Listing).

Configure Alerts

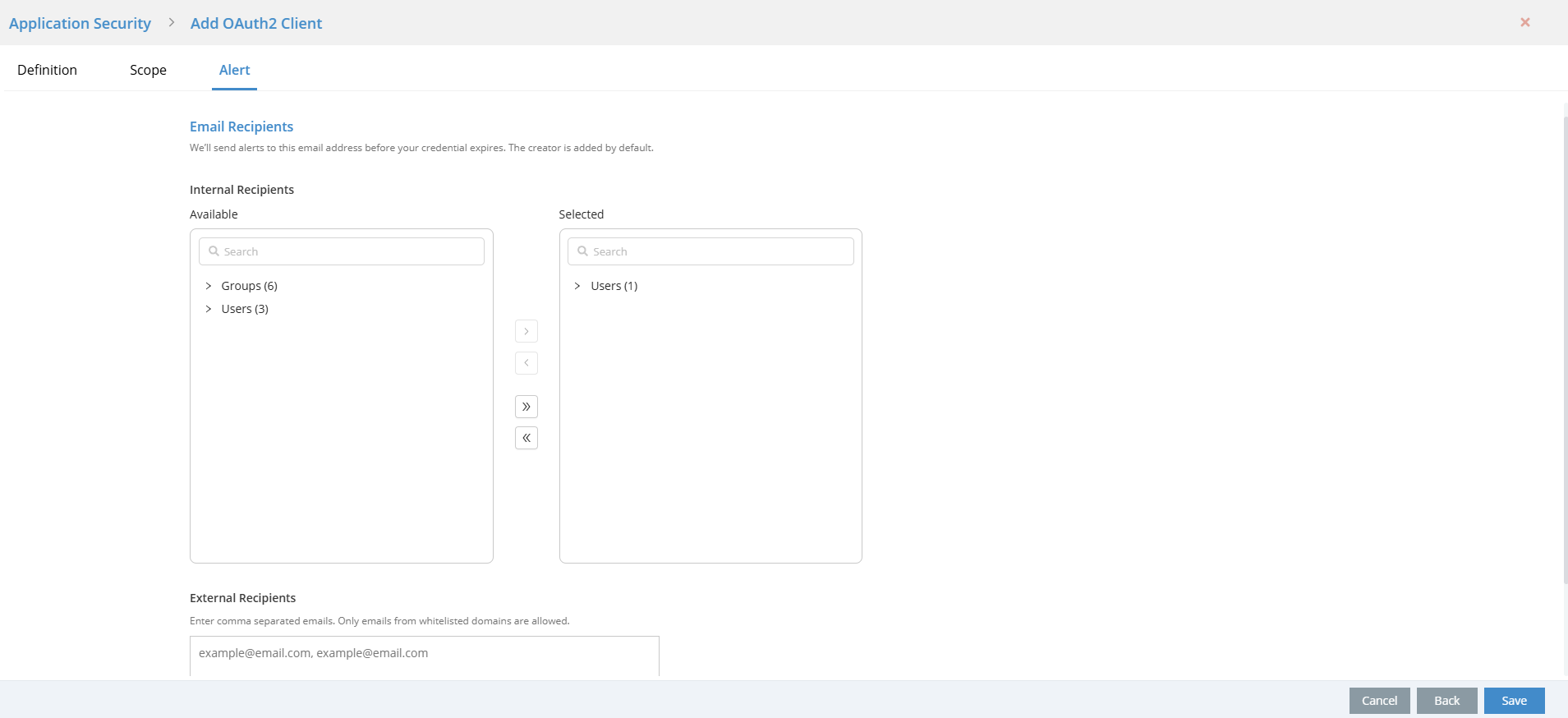

In the Alert tab, you can configure notifications to be sent when credentials are about to expire.
Internal Recipients:
- Select from available Groups or Users and move them to the Selected list.
- The OAuth client creator is automatically added by default.
External Recipients:
- Enter comma-separated emails (e.g., example@email.com).
- Only emails from whitelisted domains are allowed.

Expiry Alerts: Expiration alerts are sent 3 days before credential expiry, then repeated daily until credentials are refreshed or rotated.

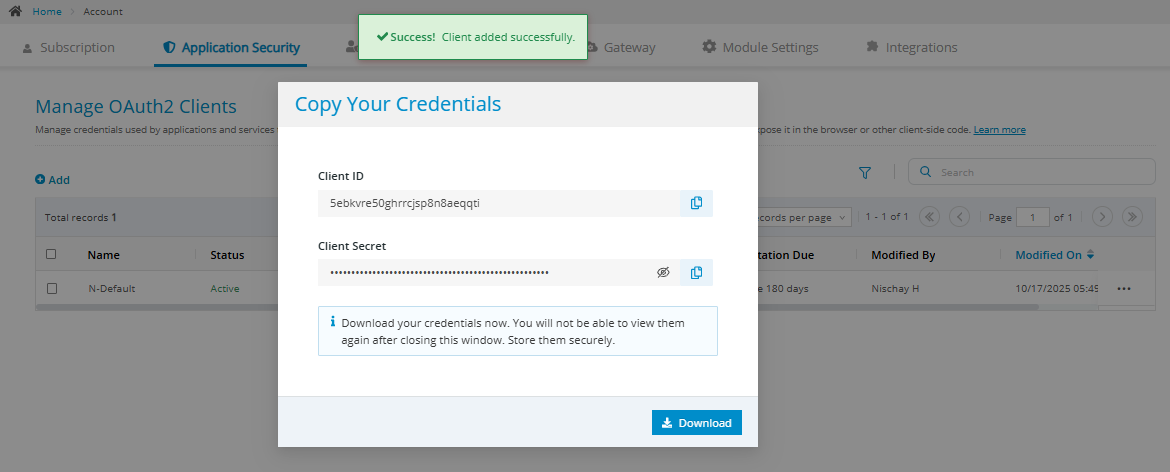

Generate and Store Credentials

Review all settings.
Click Save to generate the Client ID and Client Secret for authentication.

Important:

Credentials can only be viewed once. After closing the modal, they cannot be retrieved again.
Download and store them securely (e.g., password manager or encrypted vault).

The downloaded CSV file contains both the Client ID and Client Secret, as shown below.

Rotate API Credentials

If credentials are compromised or nearing expiry, you can rotate them.

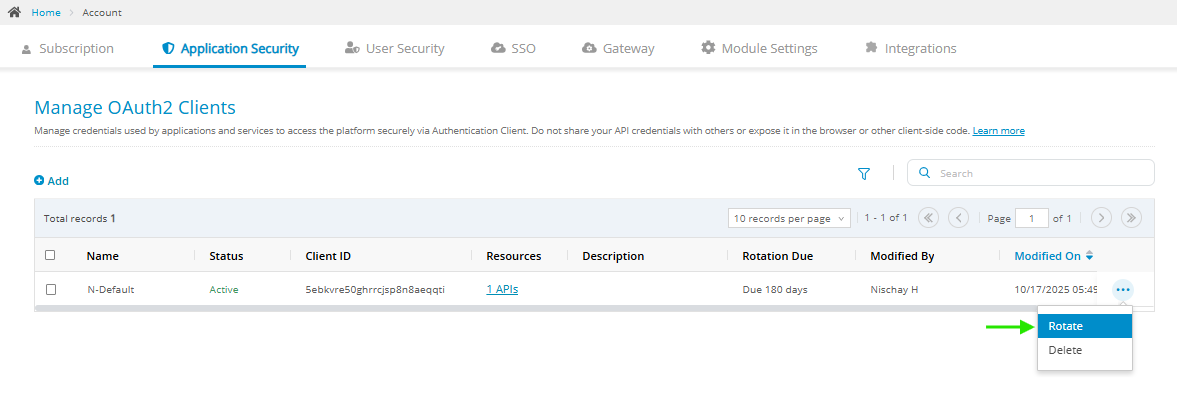

Click the More Options (⋮) menu for the client.
Select Rotate.

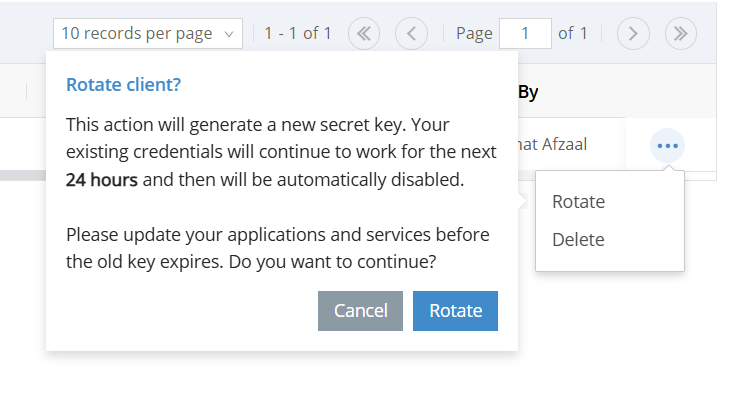

Confirm Rotation

A message will confirm that new credentials will be generated.
Old credentials remain valid for 24 hours, giving time to update integrations.
After 24 hours, old keys are automatically disabled.

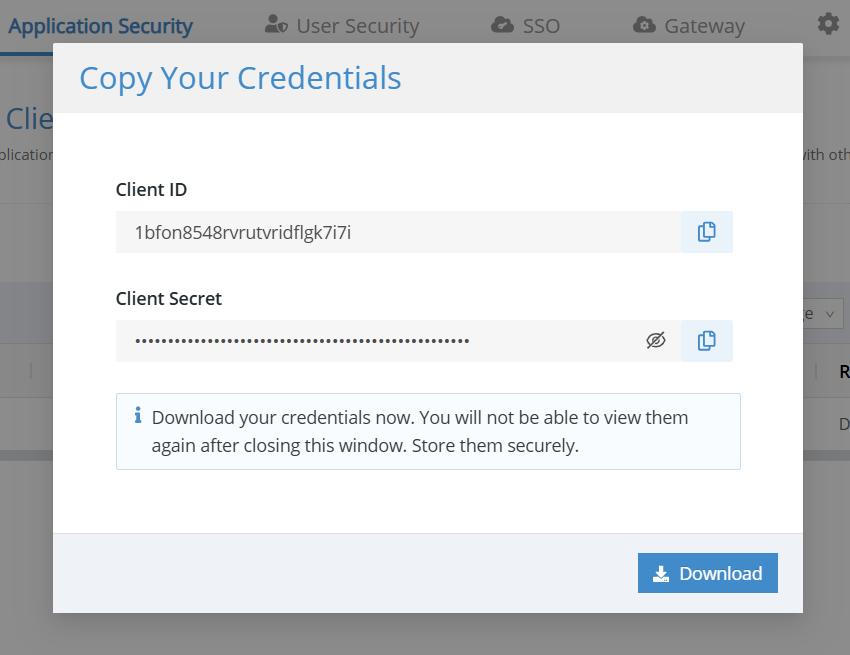

Download New Credentials

Once rotated, new credentials are issued.

Copy or download them immediately — they cannot be viewed again after closing.

Note: Remember to update all applications and services with the new Client ID/Secret before the old ones expire.

Delete API Clients

You can delete one or multiple OAuth2 clients if they are no longer required. Deletion immediately revokes access for the associated Client ID and Secret.

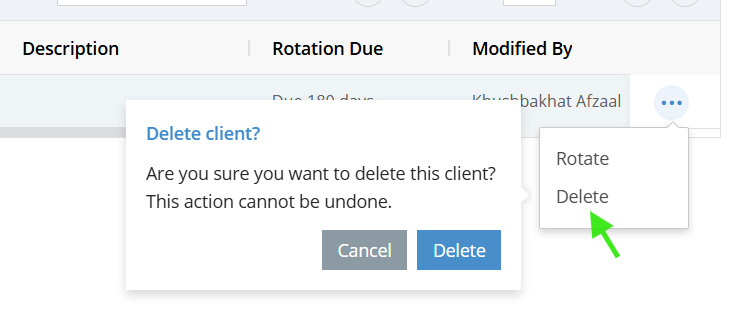

Delete an Individual Client

Click the More Options (⋮) menu next to the client.
Select Delete.
Confirm the deletion.

Bulk Delete Multiple Clients

Use the main checkbox at the top of the OAuth2 client list to select all displayed clients, or select individual checkboxes for multiple clients.
Once selected, the Delete option will appear at the top of the list.
Click Delete and confirm to remove all selected clients.

Note: Deleting an OAuth2 client is irreversible. Any applications or integrations using the deleted credentials will immediately lose access. If access is still required, create a new client and update your systems with the new credentials.

View Assigned APIs

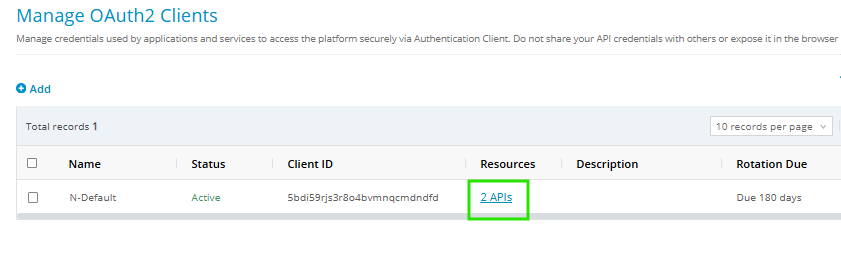

On the Manage OAuth2 Clients page, the Resources column shows how many APIs are assigned to each client.

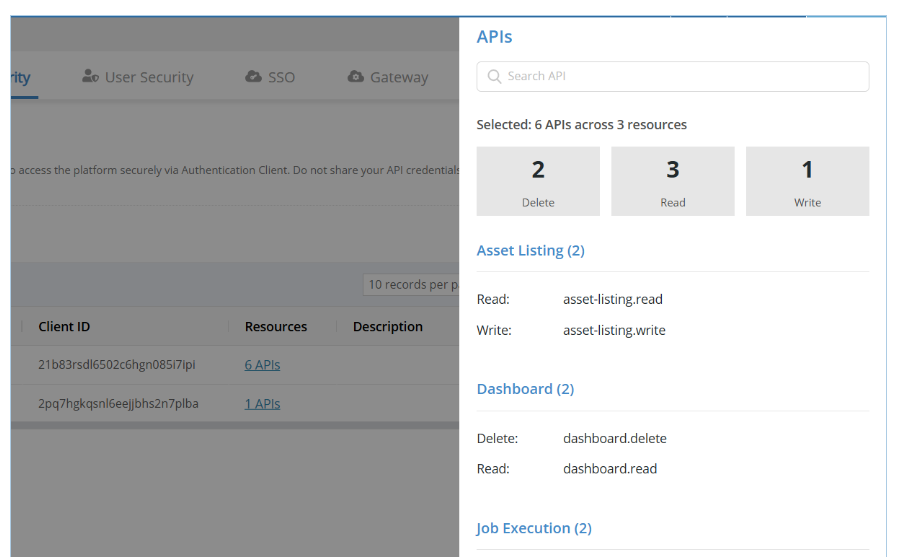

Clicking the API count (e.g., “6 APIs”) opens a detailed view of the assigned scopes.

The detailed view lists all APIs granted to the client, along with their access levels (Read, Write, Delete).

This helps administrators quickly verify which endpoints each client can access and adjust scope if needed.

Summary of Service-Based Authentication

Use the generated credentials to authenticate via OAuth2 Client Credentials flow.
Refer to the API documentation for details on endpoints, request formats, and sample payloads.

User Role–Based API Access

In addition to service-based authentication clients, DvSum also supports user role–based credentials. This allows administrators to enable API access tied directly to a user’s role.

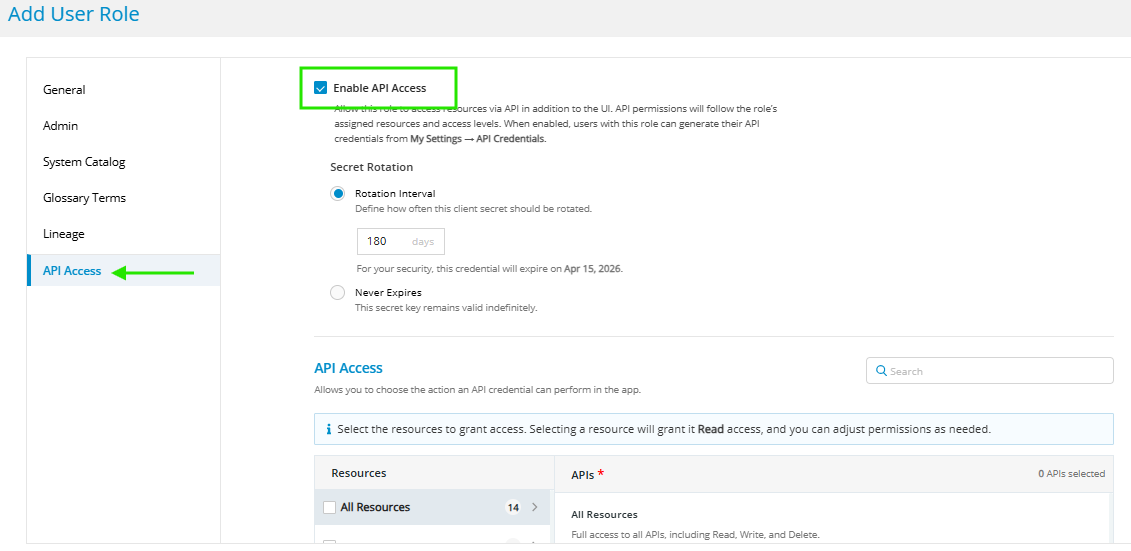

Enable API Access for a Role

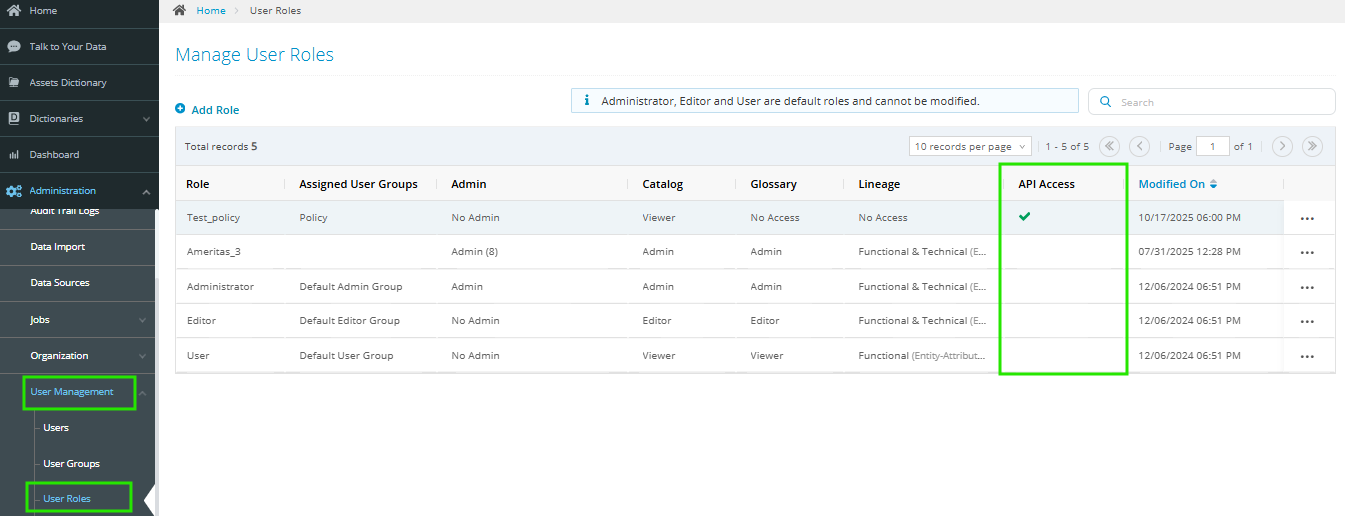

Navigate to Administration → User Management → User Roles.
Either add a new role or edit an existing one.
Go to the API Access tab.
Select Enable API Access.

Configure Role-Based API Access

Set a Secret Rotation Interval (e.g., 180 days) or choose Never Expires (not recommended).
Select the APIs this role should have access to.
- By default, any APIs already available to the role in the UI are pre-selected.
- Additional APIs can be enabled as needed.
Save the configuration.

Generate and Manage User Credentials

Once API access is enabled for a role:

Users assigned to that role will see a new API Credentials tab under My Settings.

From there, each user can:
- Generate their own Client ID and Secret.
- Rotate their credentials when needed.
- Delete their credentials if they are no longer required.

Notes:

The expiry interval is set at the role level by administrators. All users in that role inherit the same expiry.
Users cannot change expiry, but they can generate, rotate, and delete their own credentials.
The API access scope always reflects the permissions granted to the user role. If role permissions change, the user access changes automatically.
Once generated, users authenticate using the same flow as service-based clients: generate an access token via the Authentication API and use it in subsequent API calls.

API Credentials Tab Availability

By default, the API Credentials option under My Settings will appear greyed out for users.
To activate this tab, the user must be part of a User Group that is assigned to a User Role with API Access enabled.

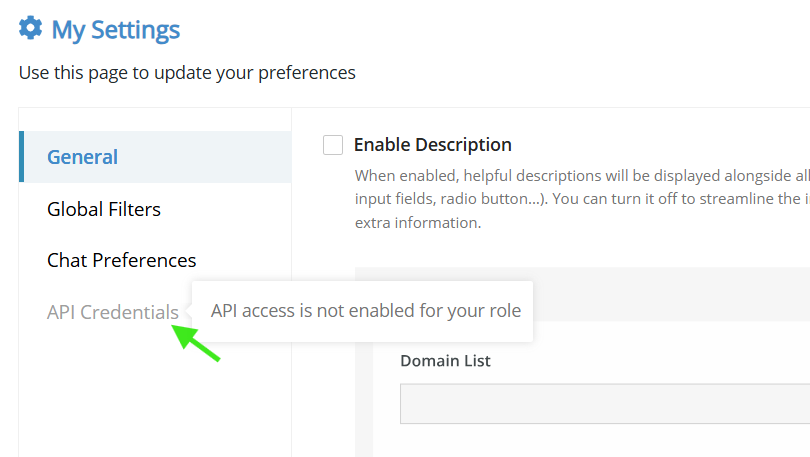

API Credentials disabled before Role Assignment:

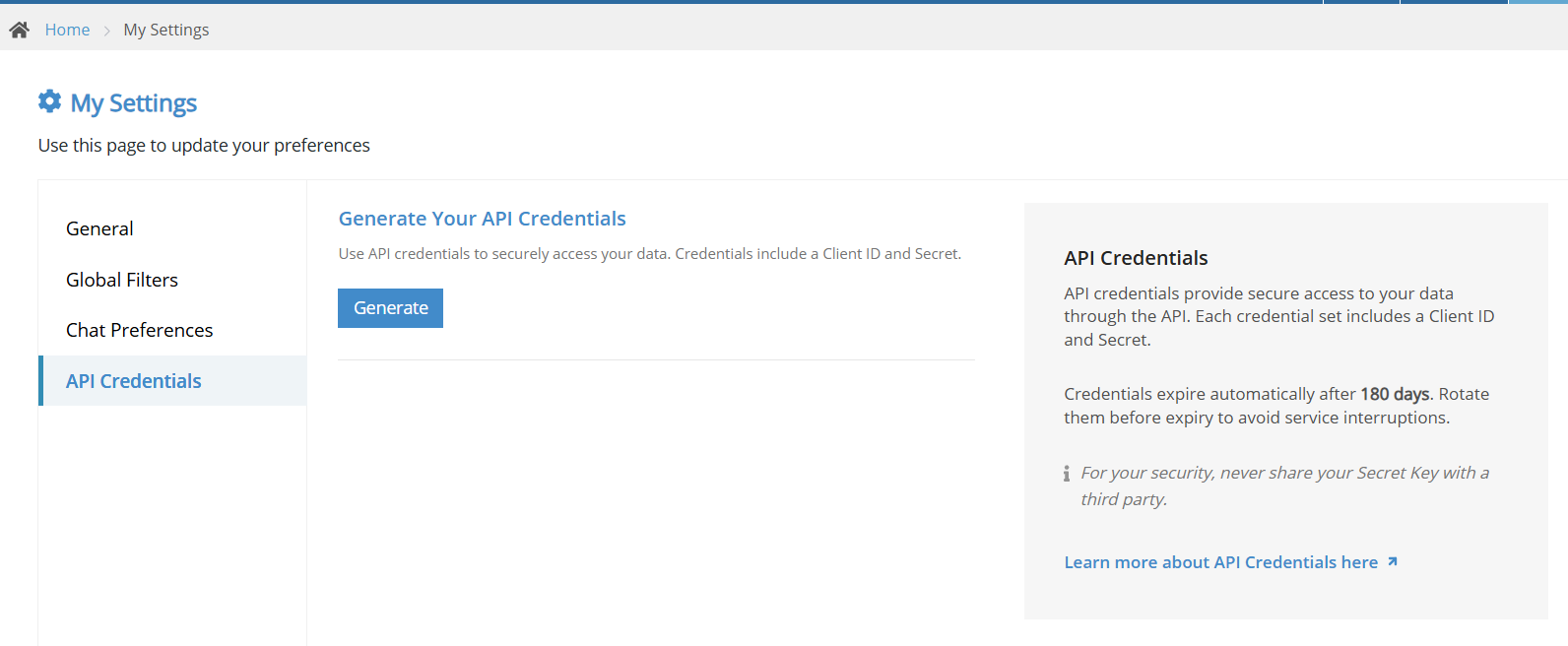

API Credentials Enabled after Role Assignment:

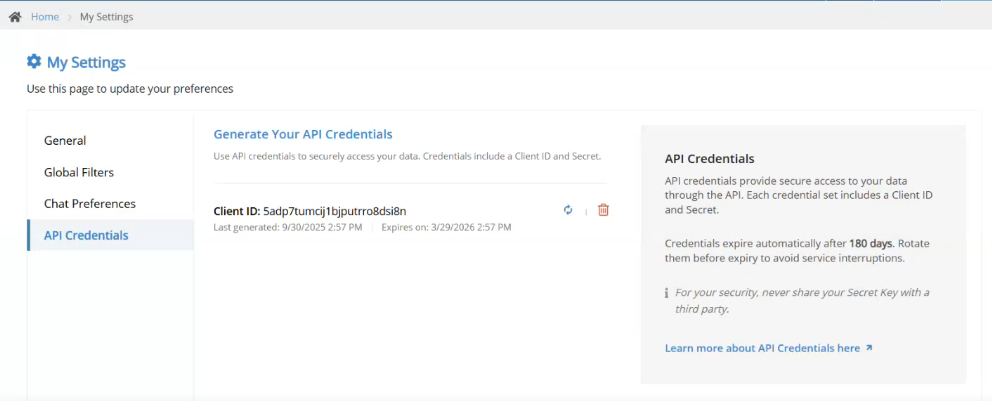

Manage Generated Credentials

Once the API Credentials tab is active and the user generates their credentials:

Download: Just like with service-based clients, credentials must be downloaded immediately. They cannot be viewed again once the modal is closed.
Rotate: Users can rotate their own credentials to issue a new secret. The old secret remains valid for 24 hours, after which it is automatically disabled.
Delete: Users can delete their credentials if they are no longer required. A new set can be generated at any time as long as their role has API access enabled.

Note: Rotation and deletion are managed at the user level, but expiry is controlled by the role configuration set by administrators.

Using API Documentation & Authentication Flow

All available DvSum APIs are listed in the official API documentation:
DvSum API Documentation

You can download the collection from this site and import it into Postman or another API client.

Before You Begin (Pre-requisites)

Before running the authentication request, make sure you have the following set up in Postman:

Create an Environment (if not already set):
- Go to the Environments tab in Postman and create a new environment.
- Add a variable named authUrl with the value:
```
auth.dvsum.ai
```
- Click Set active to activate the environment.
Set up Headers for Authentication:
In the Headers tab of your authentication request (/oauth2/token), ensure the following keys and values are added:

Content-Type: application/x-www-form-urlencoded
Accept: application/json
Authorization: Basic <base64_encoded_clientid_secret>

Once these pre-requisites are complete, proceed with Step 1: Authenticate with Client Credentials as described below.

Step 1: Authenticate with Client Credentials

Use the Client ID and Client Secret you generated earlier to obtain an access token.

Open the Authentication API (first in the documentation).
Combine your Client ID and Secret in the format:
```
client_id:client_secret
```
Convert this string into Base64 encoding
- Once generated, copy the encoded value and paste it into the Authorization header in Postman as shown below:

Authorization: Basic <base64_encoded_clientid_secret>

When you send the request, the API will return an access token.

Step 2: Use the Access Token

The access token is a Bearer token valid for 1 hour.
Copy this token and include it in the header for all subsequent API requests:

Authorization: Bearer <your_access_token>

Step 3: Run an API Example

Once you have an access token, you can use it to call APIs that your client/role has access to.

Example request:

GET {{baseUrl}}/node-listing/gov-view?node_type=TBL&node_id=40837560

Headers:

Accept: application/json
Authorization: Bearer <your_access_token>

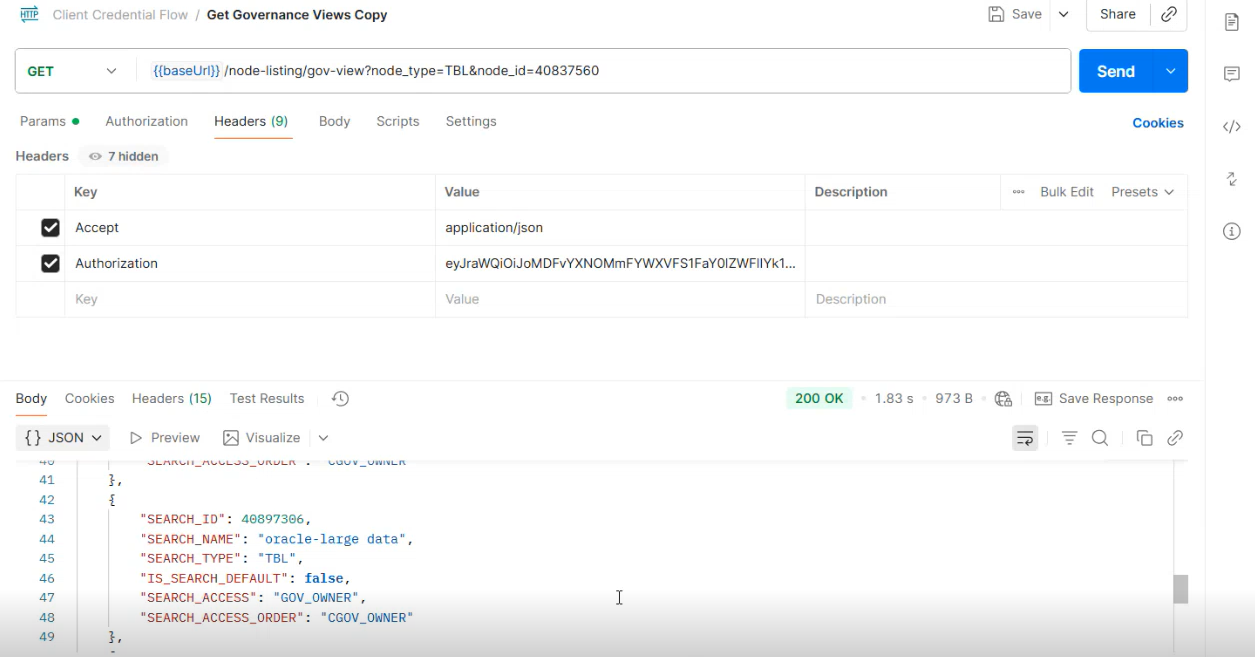

Running Get Governance Views API in Postman:

A successful call returns 200 OK with the response payload.

Important Notes

Access is restricted to the APIs that were explicitly granted in the Scope tab when creating the client.
Tokens must be refreshed every hour using the same authentication API.

Tip: Import the full Postman collection from the DvSum API Documentation for comprehensive examples of all available APIs.
