DvSum AWS PrivateLink Setup (Customer Guide)

In this Article:

• Overview
• Service Architecture
• Information Required from Customer
• Information Provided by DvSum
• Prerequisites
• Step-by-Step Setup Instructions
  • Step 1: Create VPC Endpoint for REST APIs (apis.dvsum.ai)
  • Step 2: Create VPC Endpoint for WebSocket (socket-api.dvsum.ai)
  • Step 3: Create VPC Endpoint for S3 (s3-storage.dvsum.ai)
  • Step 4: Notify DvSum for Endpoint Acceptance
  • Step 5: Security Group Configuration
  • Step 6: DNS and Connectivity Validation
• Custom DNS Configuration
• Advanced Troubleshooting

Overview

This document provides comprehensive setup guidance for securely connecting to DvSum SaaS services using AWS PrivateLink. It enables private network access to REST APIs, WebSocket services, and S3 storage using the AWS network. All communication remains inside the AWS private backbone, improving security, reliability, and compliance for enterprise environments. The document also details required customer information, DvSum-provided configurations, step-by-step setup instructions, and validation procedures to establish AWS PrivateLink connectivity successfully.

Service Architecture

DvSum provides three separate VPC Endpoint Services for comprehensive private access:

Important: Each service requires its own VPC Interface Endpoint in your VPC

Information Required from Customer

To enable PrivateLink connectivity, please provide DvSum with:

1. Customer Account Information

2. Network Configuration

3. Service Level Requirements

• Expected bandwidth: Helps DvSum provision appropriate infrastructure capacity

Information Provided by DvSum

Before proceeding with setup, DvSum will provide you with the following:

1. VPC Endpoint Service Names

2. Health Check Testing Endpoints

Prerequisites

Before starting the setup, ensure you have:

AWS Access Requirements

• AWS Console access with permissions for:
  • VPC endpoint creation and management
  • Security group configuration
  • Route 53 private hosted zone management (if needed)
  • EC2 instance access (for testing)

Network Requirements

• A VPC with private subnets in multiple Availability Zones
• Existing applications or test environment to validate connectivity
• Security groups configured to allow outbound HTTPS (port 443)

Step-by-Step Setup Instructions

Step 1: Create VPC Endpoint for REST APIs (apis.dvsum.ai)

1. In the AWS Management Console, go to VPC → Endpoints → Create Endpoint.

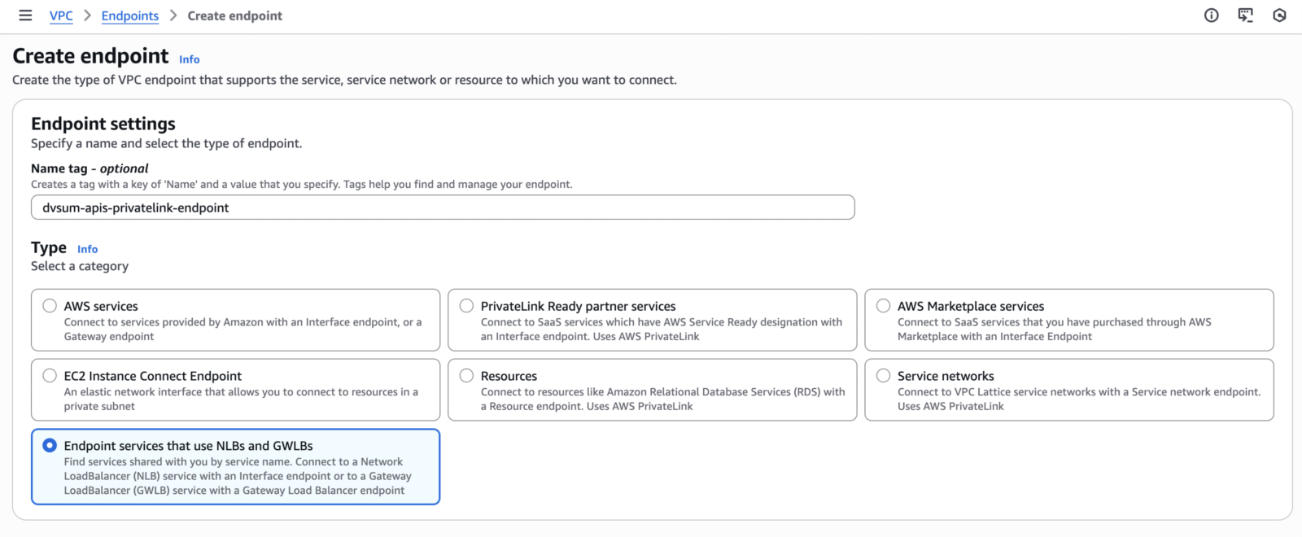

2. Under Service Category Type, select: “Endpoint services that use NLBs and GWLBs.”

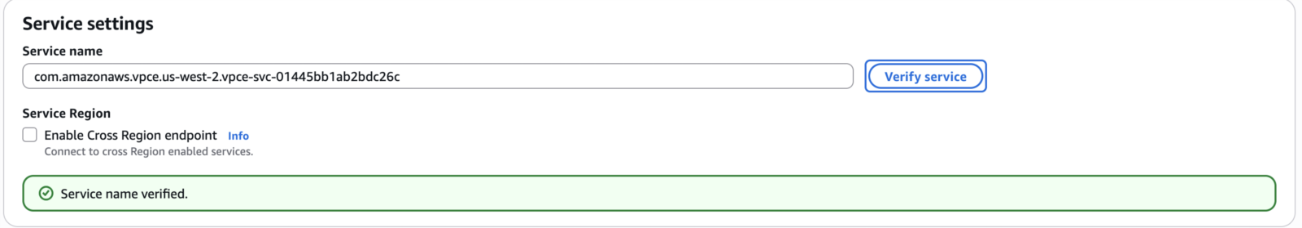

3. In Service Name, paste the REST API service name provided by DvSum and click Verify service. It should get successfully verified.

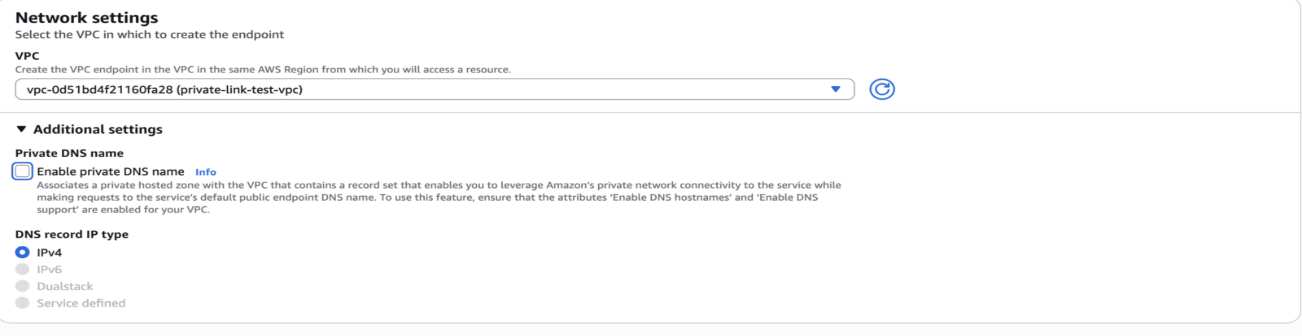

4. Under Network settings:
   • Choose your VPC.

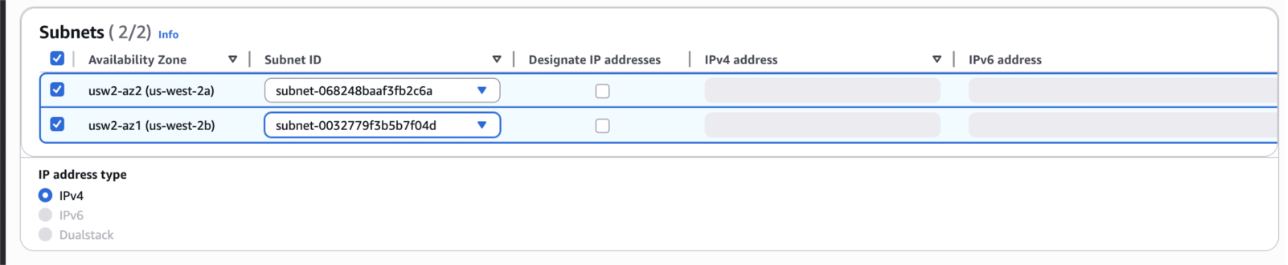

   • Select at least two private subnets across different AZs for high availability.

5. Security Group: Create or select the security group with the following Inbound and Outbound rules:

• Inbound Rules:

• Outbound Rules: Keep all outbound traffic allowed by default

6. Click Create Endpoint.
7. After endpoint is created, its status will be Pending Acceptance, at this point, customers need to inform DvSum to accept the connection request.
8. Once DvSum accepts the connection request, endpoint status will change to Available.

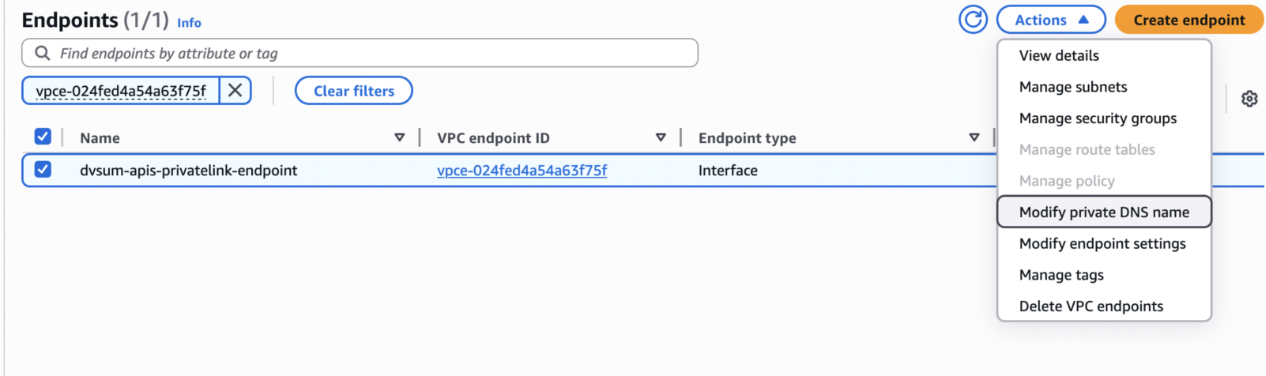

9. As the connection is in Available state, select the endpoint and from Actions, click on Modify private DNS name

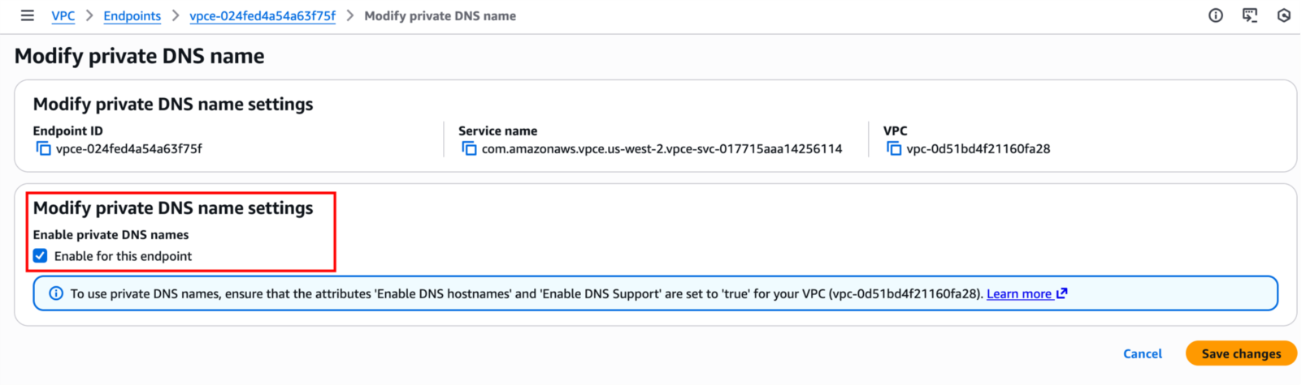

10. Under Modify private DNS name settings, select: Enable private DNS names and click on Save changes

Step 2: Create VPC Endpoint for WebSocket (socket-api.dvsum.ai)

1. In the AWS Management Console, go to VPC → Endpoints → Create Endpoint.

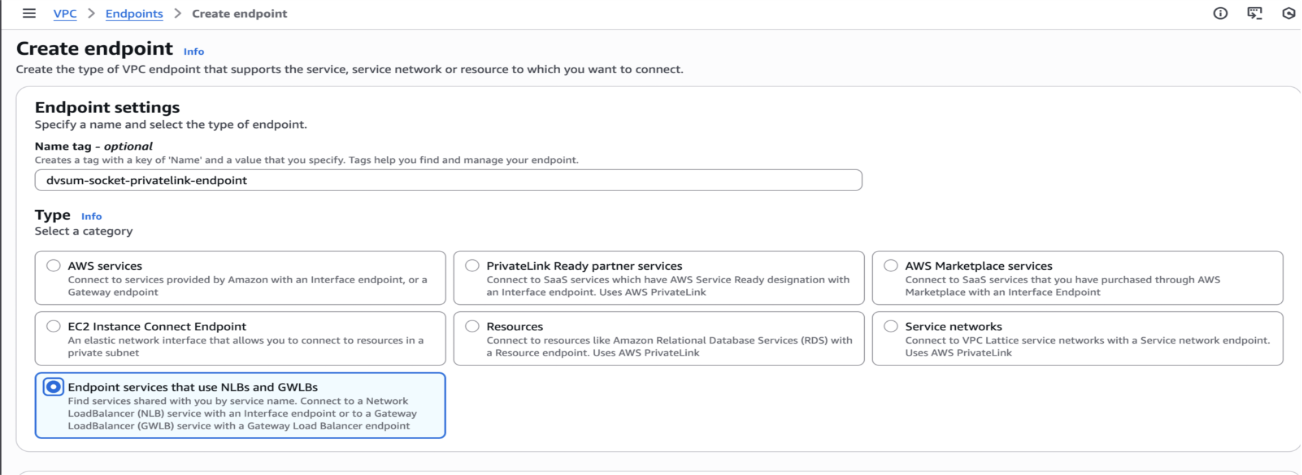

2. Under Service Category Type, select: “Endpoint services that use NLBs and GWLBs.”

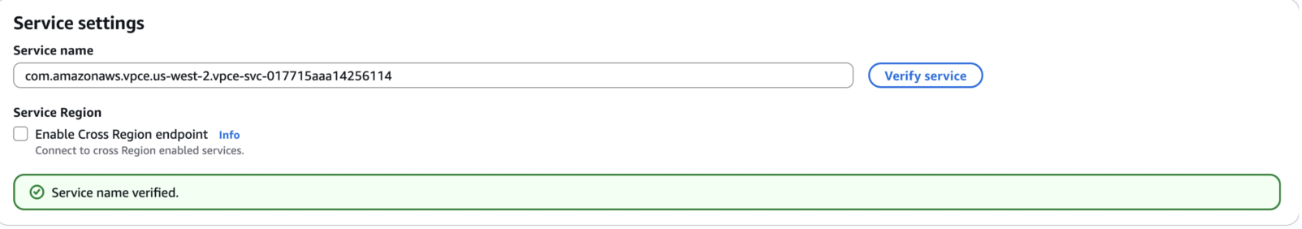

3. In Service Name, paste the Socket service name provided by DvSum and click Verify service. It should get successfully verified.

4. Under Network settings:
   • Choose your VPC.
   • Select at least two private subnets across different AZs for high availability.\

5. Security Group: Create or select the security group with the following Inbound and Outbound rules:
   • Inbound Rules:

• Outbound Rules: Keep all outbound traffic allowed as by default

6. Click Create Endpoint.
7. After endpoint is created, its status will be Pending Acceptance, at this point, customers need to inform DvSum to accept the connection request.
8. Once DvSum accepts the connection request, endpoint status will change to Available.

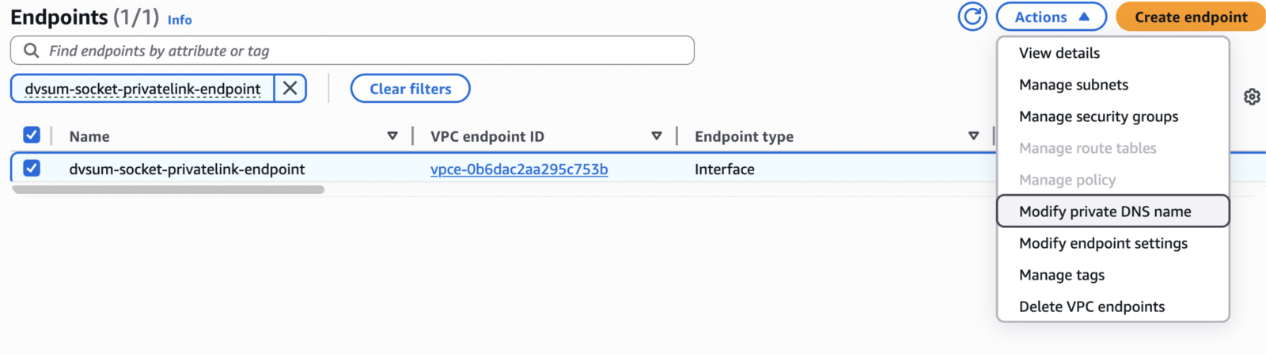

9. As the connection is in Available state, select the endpoint and from Actions, click on Modify private DNS name

10. Under Modify private DNS name settings, select: Enable private DNS names and click on Save changes

Step 3: Create VPC Endpoint for S3 (s3-storage.dvsum.ai)

1. In the AWS Management Console, go to VPC → Endpoints → Create Endpoint.

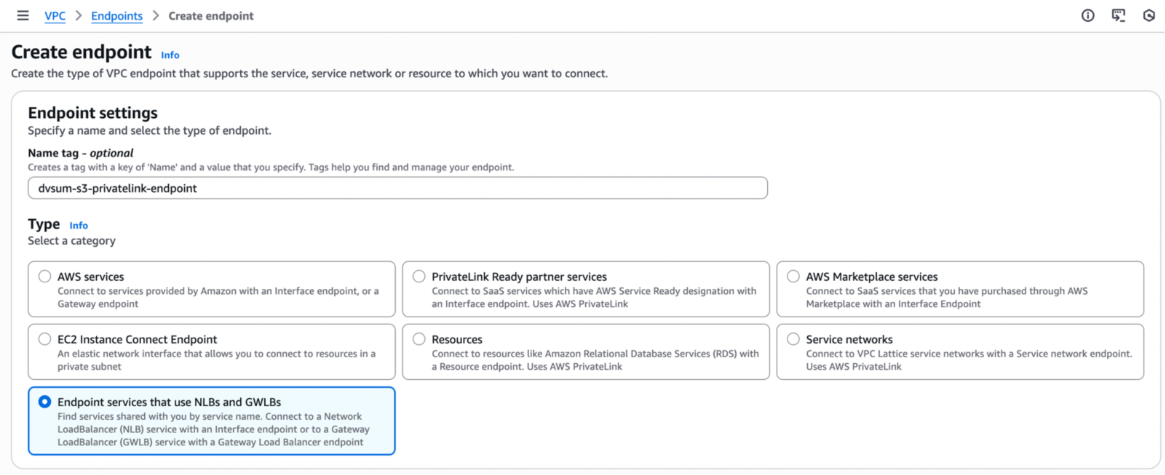

2. Under Service Category Type, select: “Endpoint services that use NLBs and GWLBs.”

3. In Service Name, paste the Socket service name provided by DvSum and click Verify service. It should get successfully verified.

4. Under Network settings:
   • Choose your VPC.
   • Select at least two private subnets across different AZs for high availability.

5. Security Group: Create or select the security group with the following Inbound and Outbound rules:
   • Inbound Rules:

• Outbound Rules: Keep all outbound traffic allowed as by default

6. Click Create Endpoint.
7. After endpoint is created, its status will be Pending Acceptance, at this point, customers need to inform DvSum to accept the connection request.
8. Once DvSum accepts the connection request, endpoint status will change to Available.

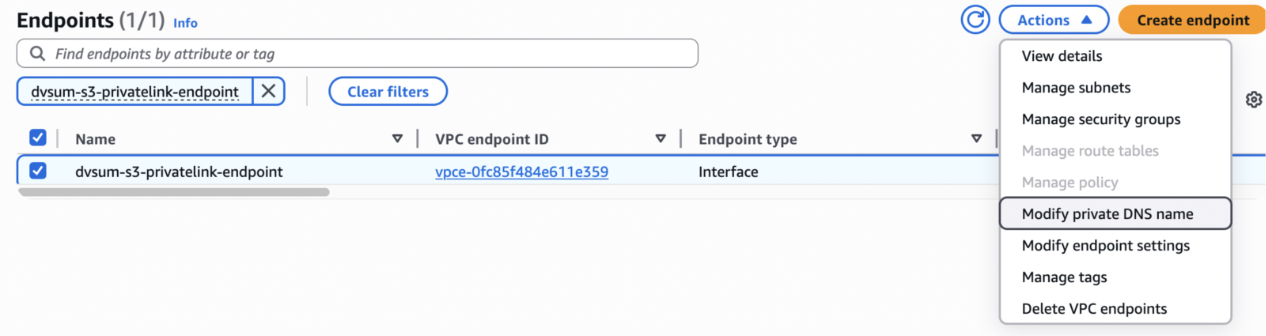

9. As the connection is in Available state, select the endpoint and from Actions, click on Modify private DNS name

10. Under Modify private DNS name settings, select: Enable private DNS names and click on Save changes

Step 4: Notify DvSum for Endpoint Acceptance

Once all endpoints are created, their initial status will appear as “Pending acceptance.”

DvSum must approve these requests before they become active.

1. Contact your DvSum representative and notify them that the VPC endpoints for the REST API, S3 and WebSocket services have been created in your AWS Account.
2. After DvSum accepts the requests, the endpoint status will change to “Available.”

Step 5: Security Group Configuration

Configure your security groups to permit traffic between your applications and the new VPC endpoints.

Machine Security Group (Outbound Rules):

Keep all outbound traffic allowed as by default

VPC Endpoint Security Group:

 Inbound Rules:

Outbound Rules:

Keep all outbound traffic allowed as by default

Step 6: DNS and Connectivity Validation

Perform these tests from an EC2 instance inside your configured VPC.

1. DNS Resolution Test:

• nslookup apis.dvsum.ai
• nslookup socket-api.dvsum.ai
• nslookup s3-storage.dvsum.ai
• Expected Result: Both domains should resolve to the private IP addresses of the interface endpoints within your VPC's CIDR range.

2. REST API and S3 Connectivity Test:

• curl -v https://apis.dvsum.ai/health-check
• curl -v https://s3-storage.dvsum.ai/health-check
• Expected Result: A JSON response: {"status": "ok"}.

3. WebSocket Connectivity Test:

• openssl s_client -connect socket-api.dvsum.ai:443
• Expected Result: A successful TLS handshake, displaying the certificate chain and a "CONNECTED" message without errors.

Custom DNS Configuration

Note: This step is to be followed only if Private DNS is not enabled on VPC Endpoints.

The following are the steps to configure DNS settings for the correct routing of traffic through three VPC endpoints via Private Link.

Step 1: Create Private Hosted Zone

1. In the AWS Management Console, Go to Route 53 → Hosted Zones
2. Create Private Hosted Zone:
3. Domain name: dvsum.ai
4. Type: Private hosted zone
5. VPC: Associate with your application VPC

Step 2: Add DNS Records

Add A-records pointing to your endpoint private IPs:

Advanced Troubleshooting 

1. Network Connectivity Test

# Test from EC2 instance in your VPC 
telnet apis.dvsum.ai 443   
telnet socket-api.dvsum.ai 443 
telnet s3-storage.dvsum.ai 443 

2. VPC Flow Logs Analysis

Enable VPC Flow Logs to monitor traffic patterns: 

• Monitor accepted vs. rejected connections 
• Identify security group misconfigurations 
• Track bandwidth utilization 

3. DNS Resolution Debugging

# Check DNS resolution chain 
dig apis.dvsum.ai 
dig socket-api.dvsum.ai 
dig s3-storage.dvsum.ai
