Prerequisites and Permissions for DvSum Fabric Data Source Configuration

Overview

Before configuring any Microsoft Fabric data source in DvSum, ensure that the required application setup and permissions are in place. This article outlines the required prerequisites and provides steps to create or verify them if not already available.

Prerequisites

To configure Fabric data sources, you must have the following:

An application registered in the Microsoft Azure Portal
A valid Client ID, Tenant ID, and Client Secret
Required API permissions granted to the application
Admin consent provided for the configured permissions
Access enabled for the application in Fabric (via Power BI Admin settings)

These requirements are necessary to allow DvSum to securely connect and access metadata from the configured data sources.

Setup Steps (If Not Already Configured)

If the above prerequisites are not already in place, follow the steps below to configure them.

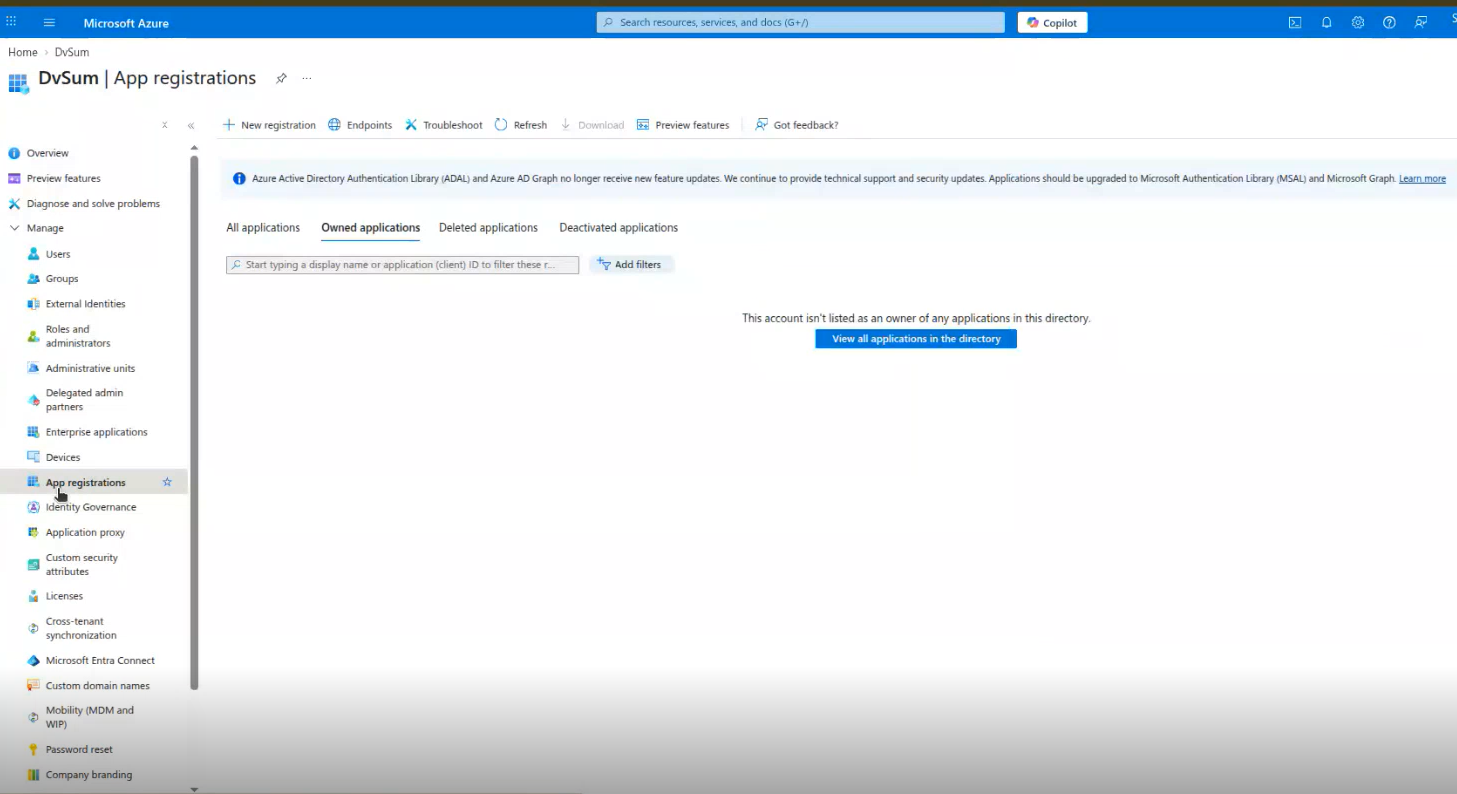

App Registrations

Go to Microsoft Azure Portal
Navigate to App registrations
If no applications are listed, click View all applications in the directory

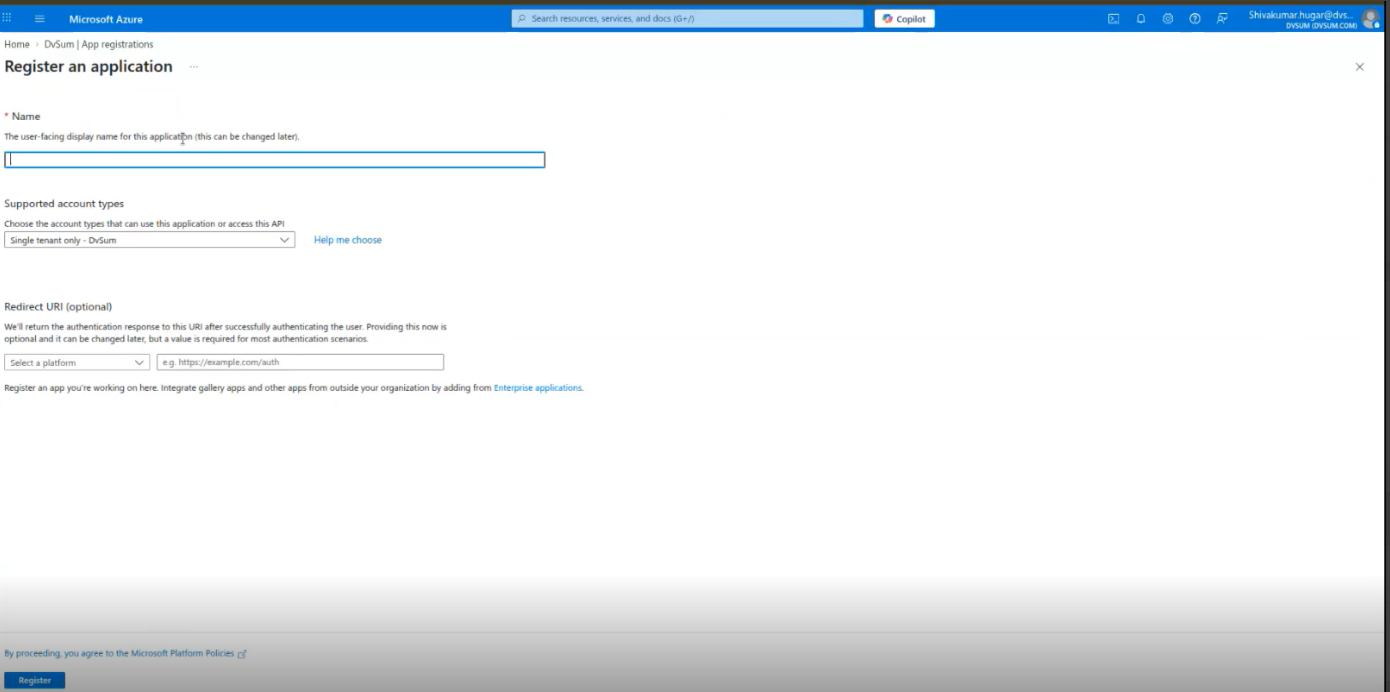

Registering a New Application

Click on New registration Enter the following:

Name: Provide a name for the application
Supported account types: Select Single tenant

Click Register

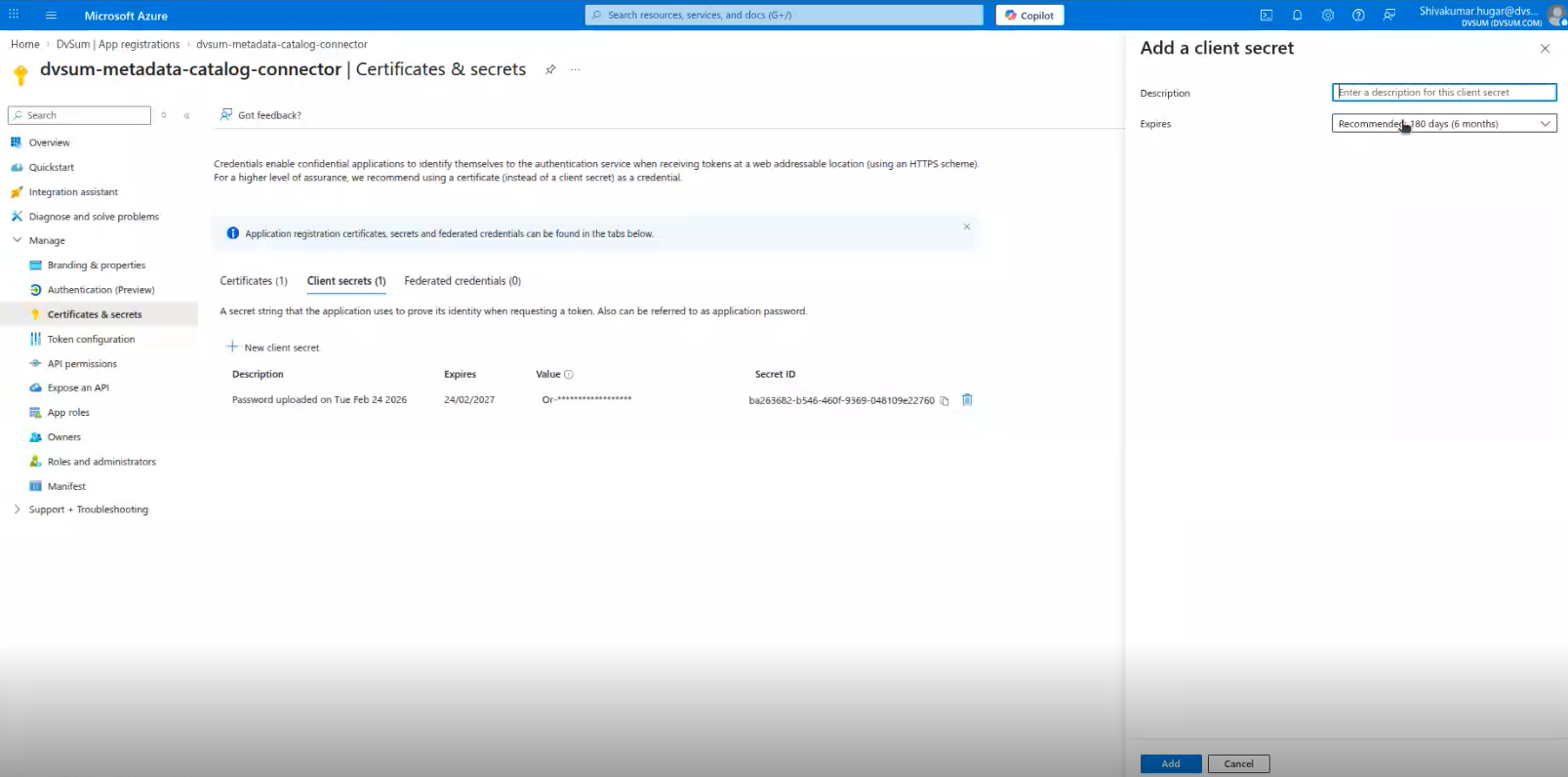

Creating a Client Secret

Navigate to Certificates & secrets Click + New client secret Enter:

Description
Expiration period

Click Add Copy the generated Secret Value immediately

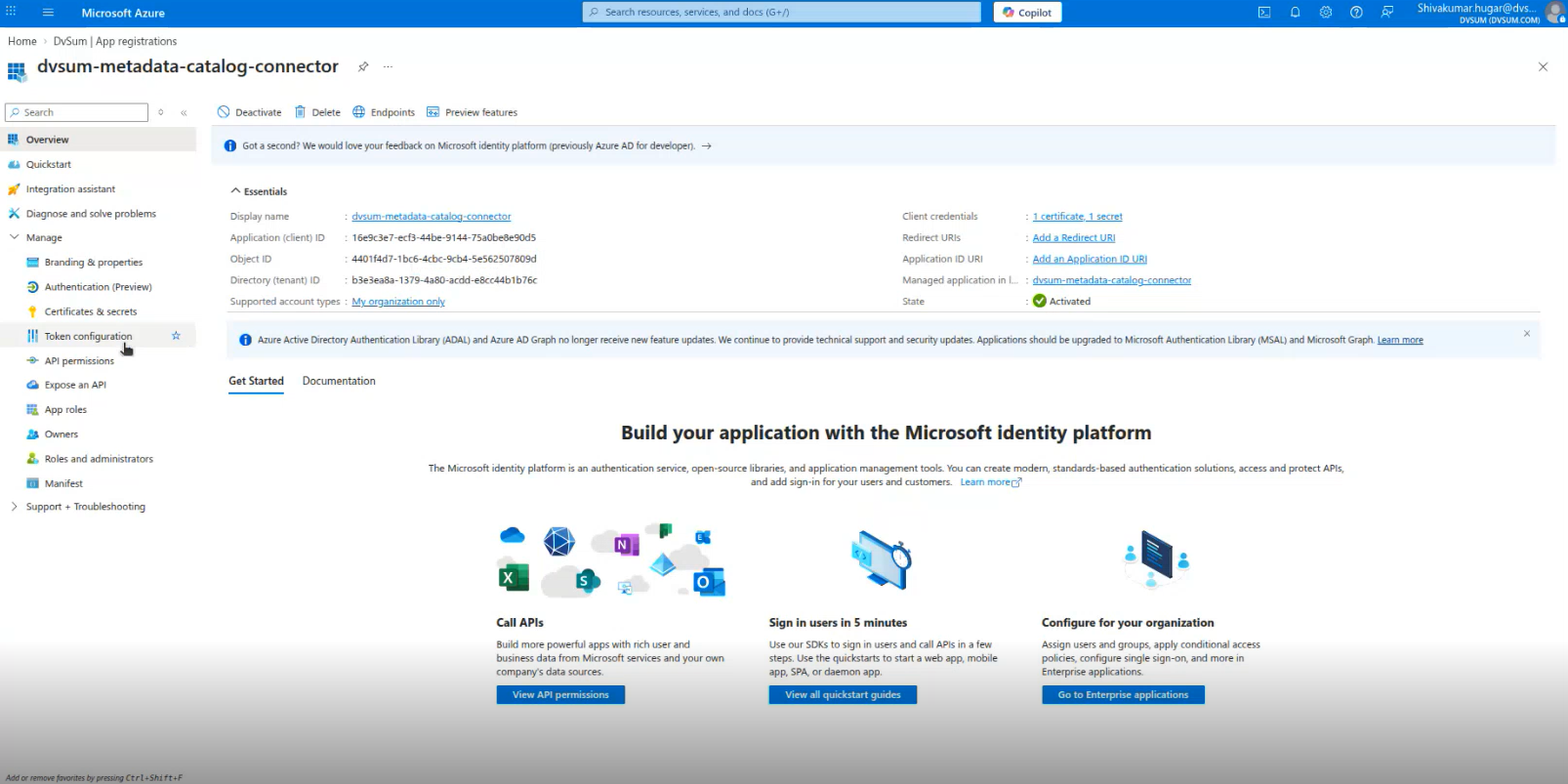

Verifying the Token Configuration

Navigate to Token configuration from the left menu
Verify required configurations (if applicable)

Access Permissions

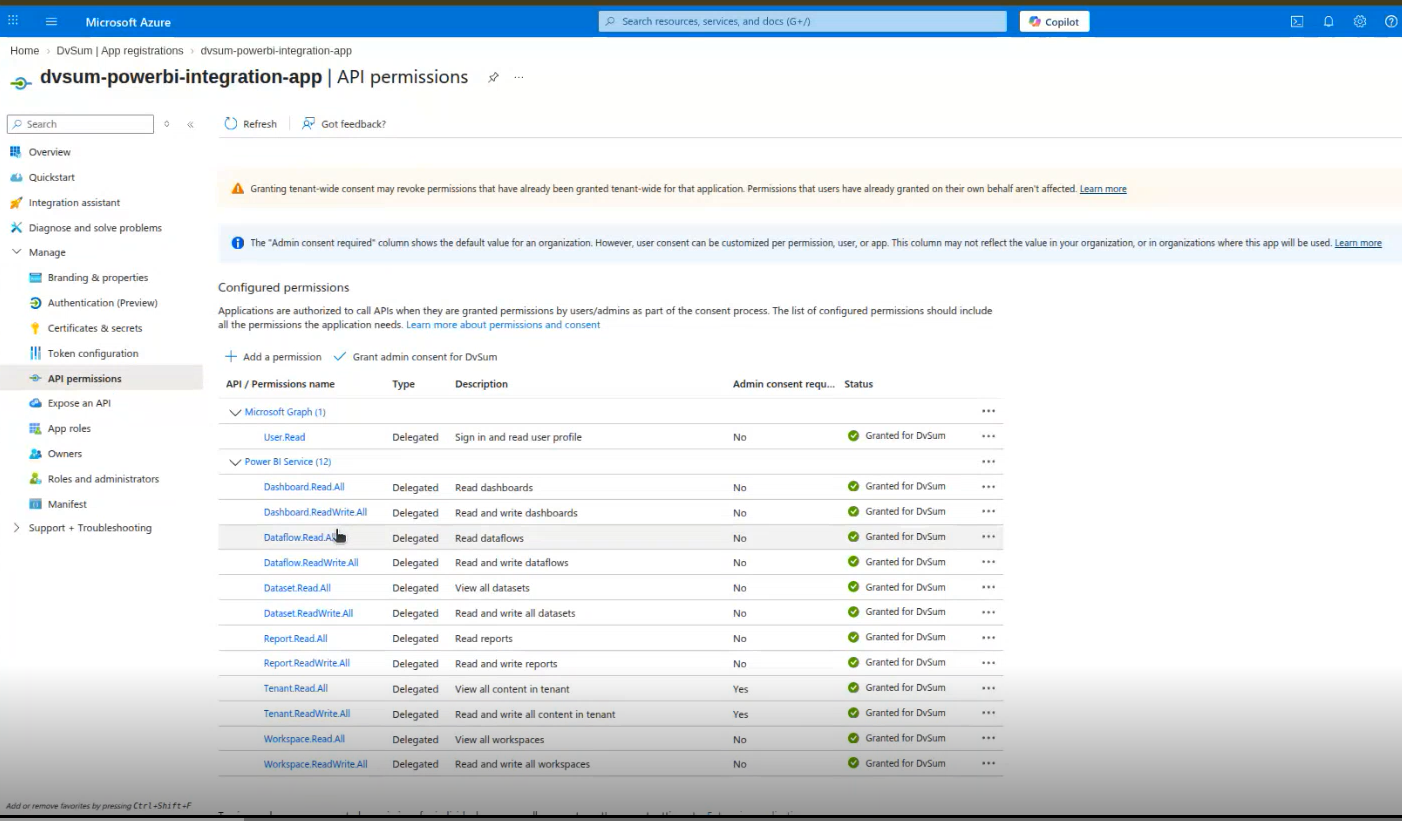

Configure API Permissions (Azure)

Go to API permissions
Click Add a permission
Add required permissions for:
- Power BI Service
- Microsoft Graph
Click Grant admin consent

Ensure the permission status shows as granted.

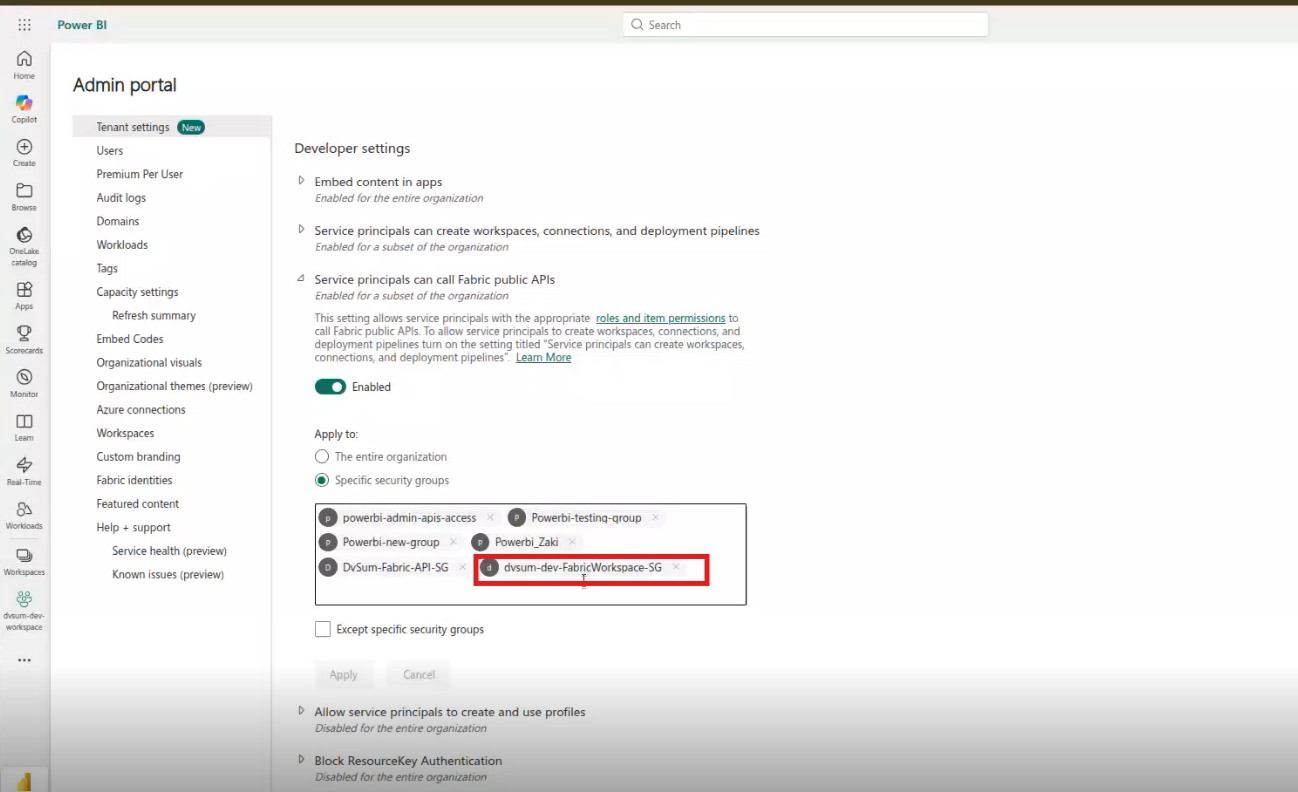

Enable Fabric Access for All Supported Sources

Open the Power BI Admin Portal
Go to Tenant settings
Navigate to Developer settings
Enable:
- Service principals can call Fabric public APIs (required to allow access across all supported sources such as Power BI, SQL Server, Lakehouse, and Warehouse)
Under access scope:
- Select Specific security groups
- Add the security group associated with your application
Click Apply

Applies to the Following Data Sources
The following configurations are generally required for:

These steps ensure that the application has the required access across all supported sources in the Fabric platform.

Additional Setup (Only for Dataverse)

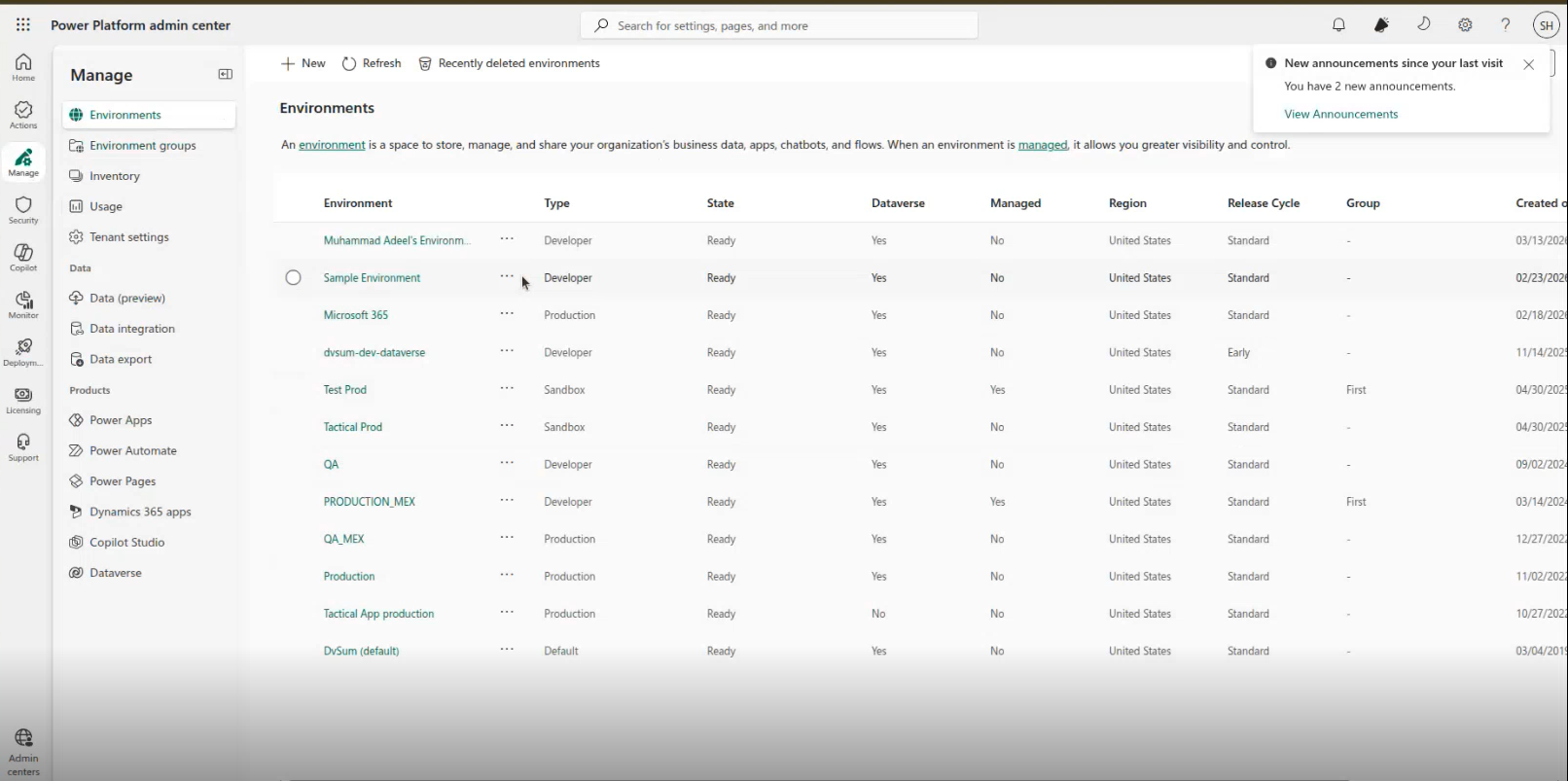

Power Platform Environment

Open Power Platform Admin Center
Navigate to Environments
Select the required environment Ensure:
- Environment is in Ready state
- Dataverse is enabled

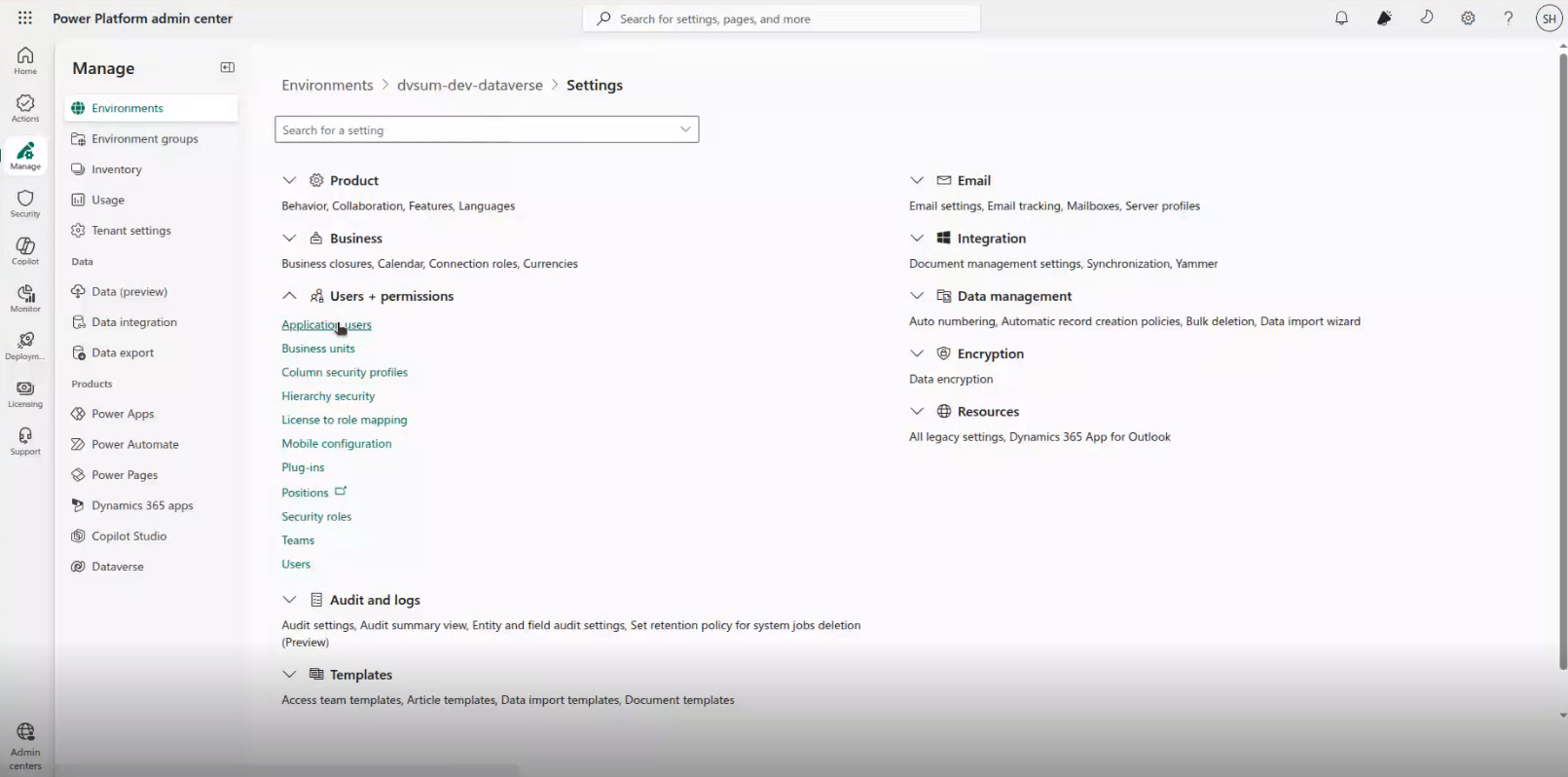

Select your environment (e.g., dvsum-dev-dataverse)
Click Settings Under Users + permissions,
select Application users

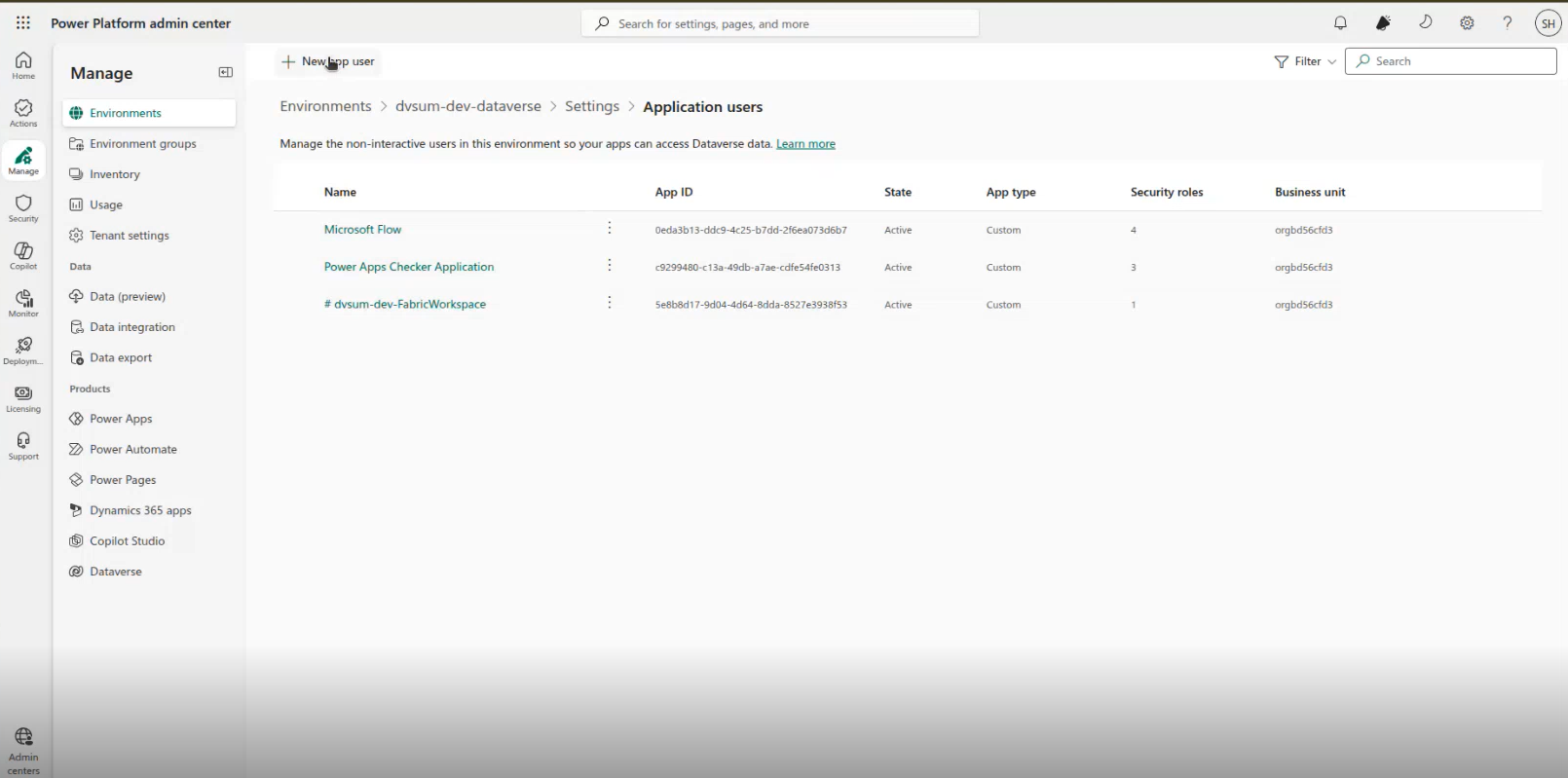

Application Users Page

You will see a list of existing application users like:

Microsoft Flow
Power Apps Checker Application
Fabric Workspace app

Here you can:

View App ID
Check State (Active)
See Security Roles
Check Business Unit

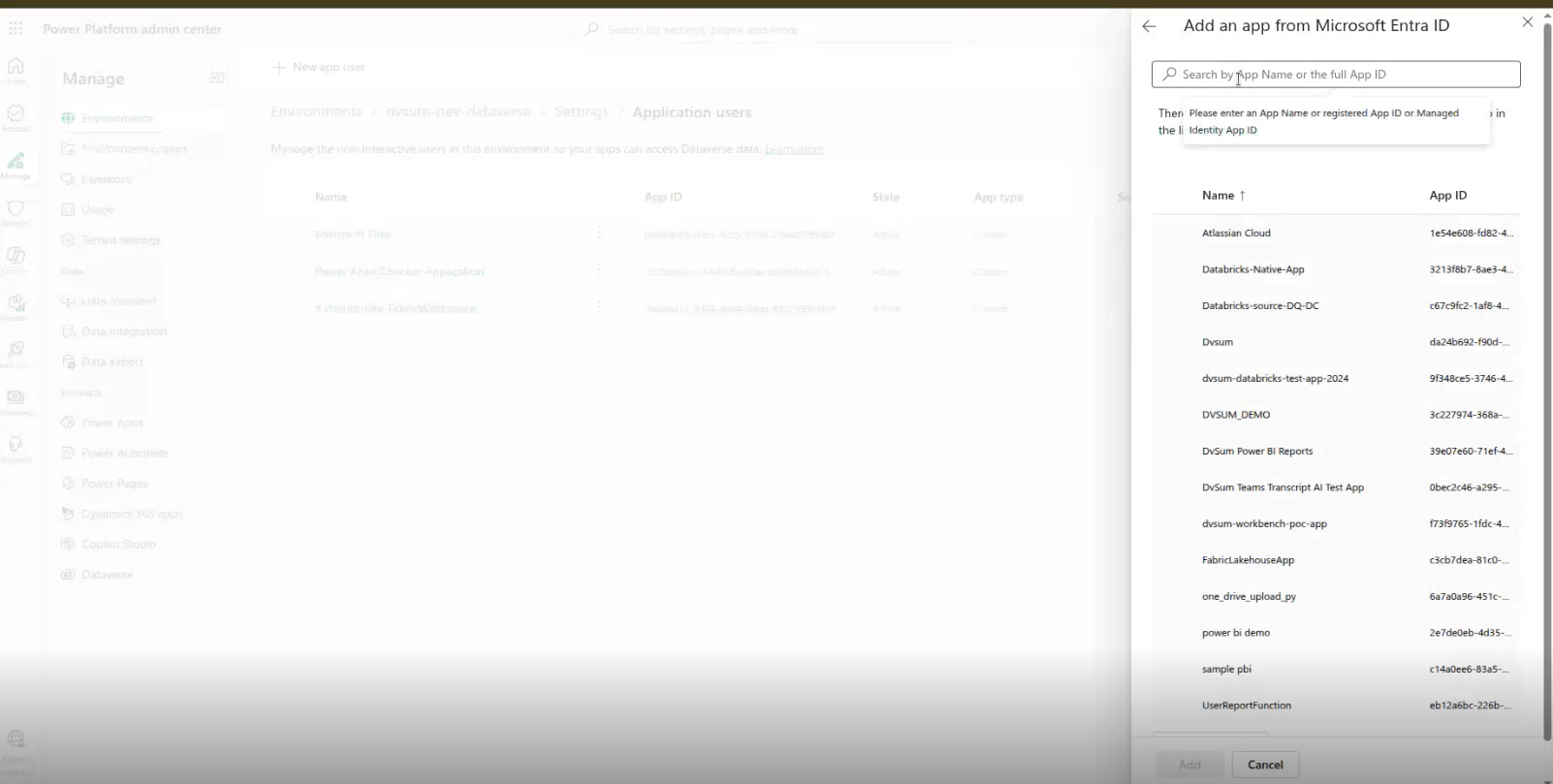

Adding New Application User

Click + New app user Search using:

Application Name, or
Application (Client) ID

Select the required application

Configuring Application User

After selecting the app, you must configure:

Required Fields:

Business Unit
- Defines data access scope
Security Roles
- VERY IMPORTANT — without roles, the app cannot access Dataverse

Optional:

Name (auto-filled usually)

Save

Click Add / Create

Now the application user will appear in the list.

Notes

Ensure you have appropriate access in Azure and Power Platform
Store all credentials securely (Client ID, Tenant ID, Client Secret)
Copy the client secret immediately after creation, as it will not be visible later
