Configure Microsoft Fabric OneLake as a Source

In this Article

• Overview
• Step-by-Step Configuration Guide
  • Add a New Data Source
  • Configure Connection
  • Select Workspaces & Asset Types
  • Scan the Data Source
• Scan Summary

Overview

This article explains how to configure OneLake as a data source in the DvSum Data Catalog. It covers connection setup using Power BI credentials, workspace selection, asset configuration, and scanning.

Before setting up OneLake as a source in DvSum, please ensure all prerequisites are completed. Refer to the article “Prerequisites and Permissions for DvSum Data Source Configuration.”

OneLake acts as a parent source, allowing you to create and manage multiple data sources such as:

• Power BI
• SQL Database
• Lakehouse
• Warehouse

It also explains how metadata and lineage scans are performed and how discovered assets can be accessed.

Step-by-Step Configuration Guide

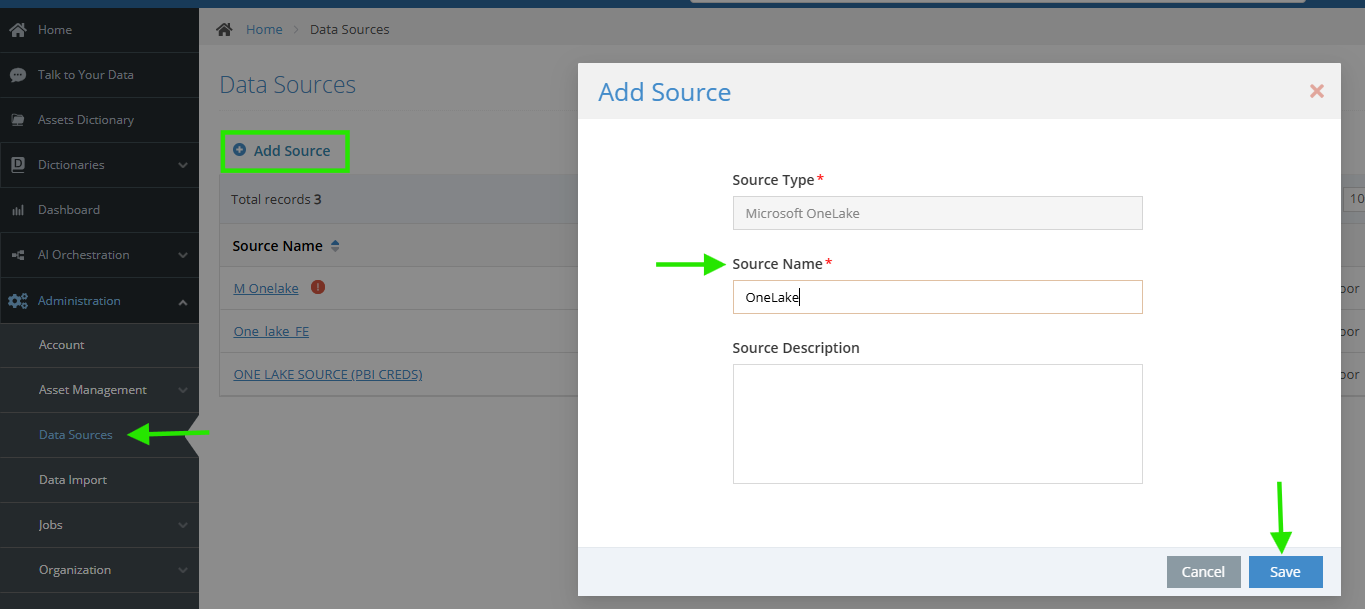

1. Add a New Data Source

• Navigate to Administration → Data Sources
• Click ⊕ Add Source
• Select OneLake
• Provide a name for the source and click Save

2. Configure Connection

Once the source is saved, the connection settings page appears.

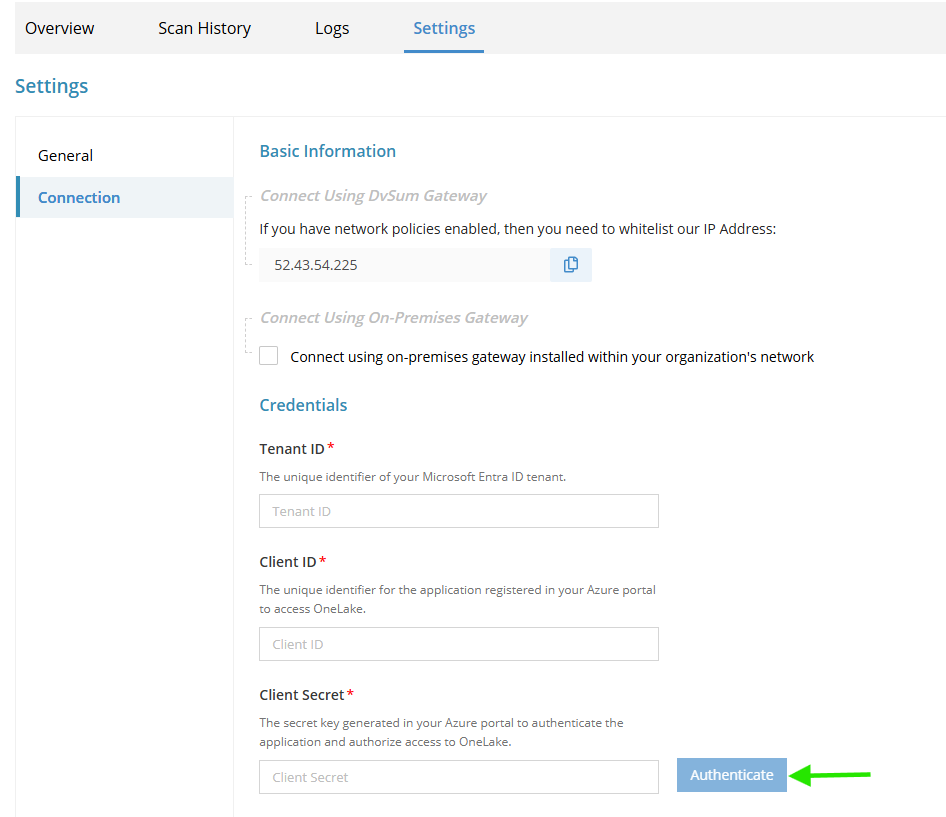

Refer to the connection screen:

• Enter the following credentials:
  • Tenant ID
  • Client ID
  • Client Secret
• Click Authenticate

3. Select Workspaces & Asset Types

After successful authentication, users can configure workspaces and asset selection.

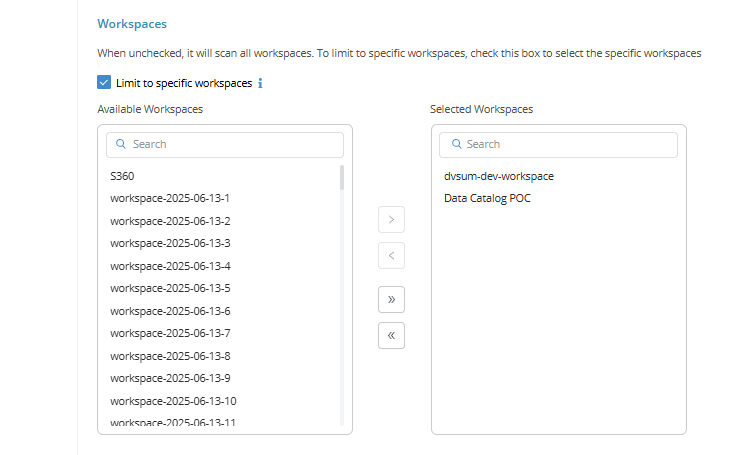

Workspace Selection

• Option to:
  • Scan all workspaces, OR
  • Enable “Limit to specific workspaces” and select required ones
• Move workspaces from Available → Selected

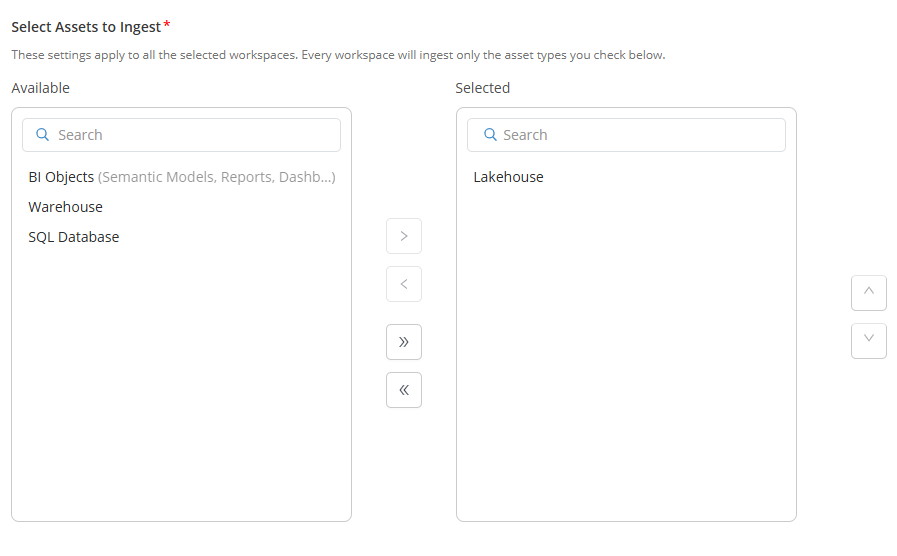

Asset Selection

Choose the asset types you want to create from OneLake:

• Power BI (Semantic Models, Reports, Dashboards)
• Lakehouse
• Warehouse
• SQL Database

Important behavior:

• OneLake acts as a parent source
• Selected assets determine which child data sources will be created

Click Done → then Save

How Data Sources Are Created

• Data sources are created per database per workspace
• Example:
  • If a workspace has:
    • 2 Warehouses → 2 Warehouse data sources will be created
    • 1 Lakehouse → 1 Lakehouse data source
• This applies to all selected asset types

Note: Deleting the OneLake source does not delete the data sources that were created from it.

Authentication Behavior

If incorrect credentials are entered:

• The data source can still be saved
• Authentication will fail

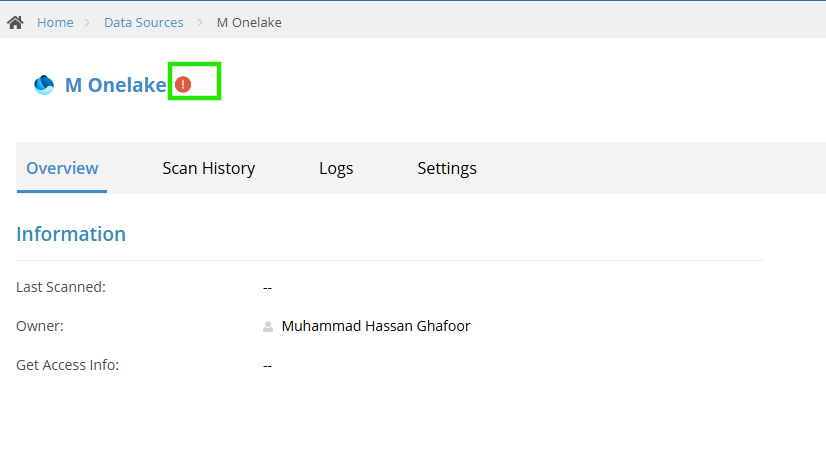

• The source will be marked unusable (red indicator)

The source will only function after valid credentials are provided.

4. Scan the Data Source

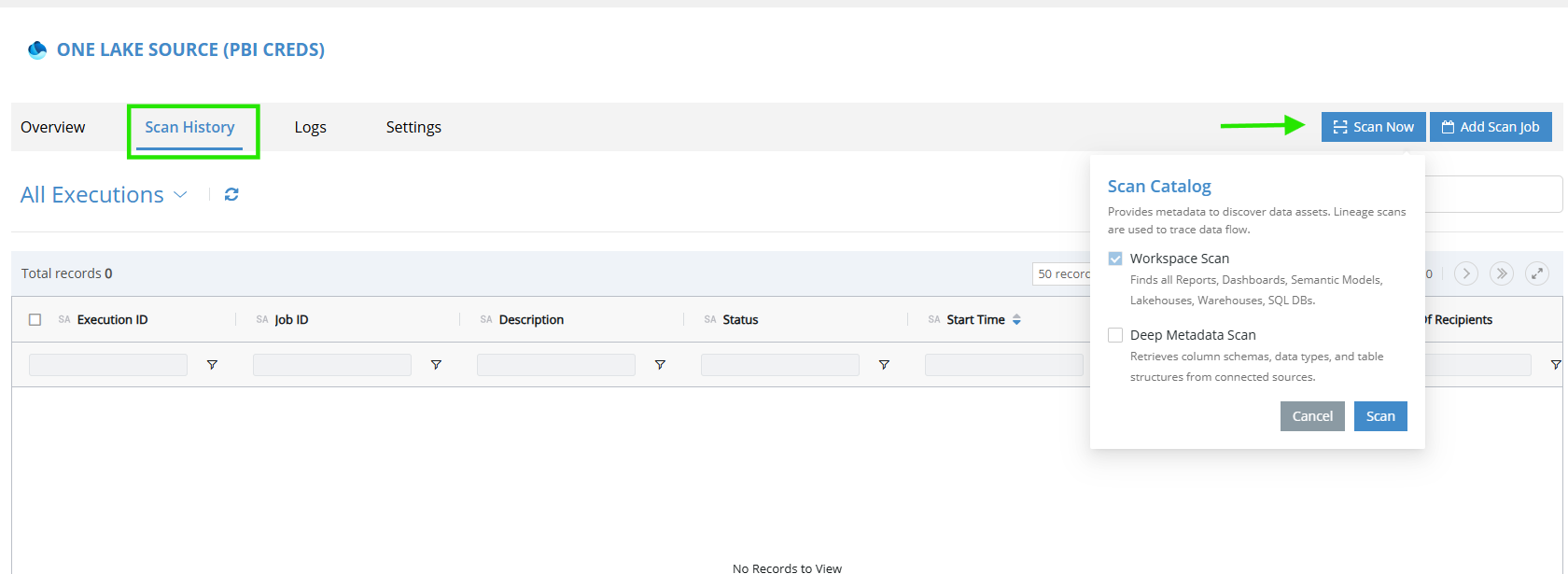

Navigate to Scan History page.

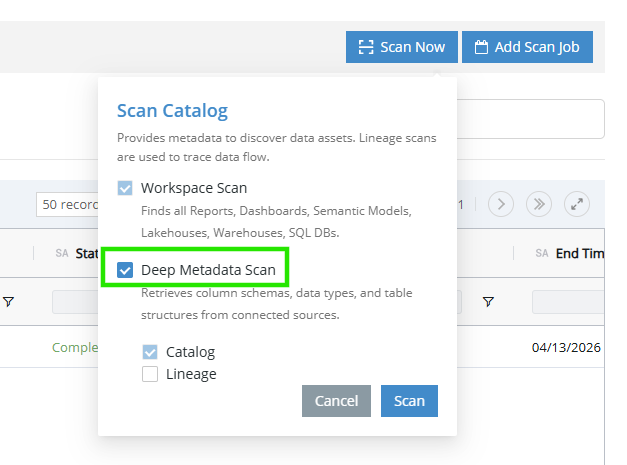

Click Scan Now

There are two scan options:

Workspace Scan

• Automatically creates corresponding data sources based on selected assets

Deep Metadata Scan

• Retrieves:
  • Column schemas
  • Data types
  • Table structures

Notes:

• Catalog scan is enabled by default
• Lineage scan is optional (can be selected)

Post Scan Behavior for Deep Metadata Scan

• Separate data sources are created for:
  • Power BI
  • Lakehouse
  • Warehouse
  • SQL Database
• If both Catalog + Lineage are enabled:
  • Scans will run automatically for created data sources

Power BI Behavior

• Power BI sources:
  • Do not appear in the listing page
  • Run in the background

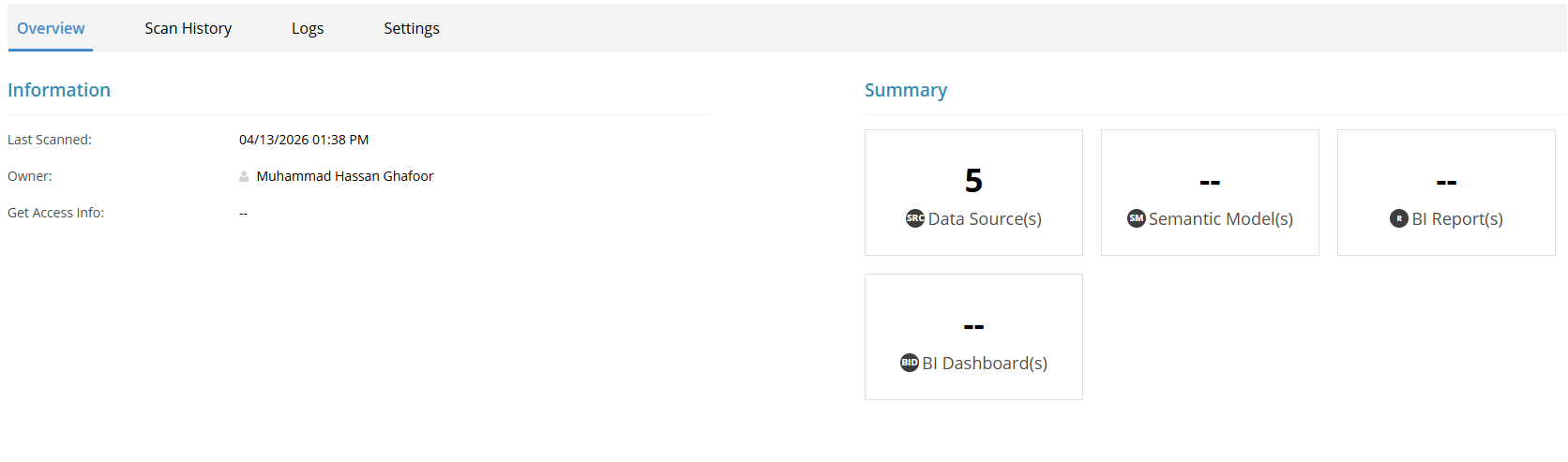

• However, they can be accessed from:
  • Overview Page

Where users can view:

• Semantic Models
• BI Reports
• BI Dashboards

Scan Summary

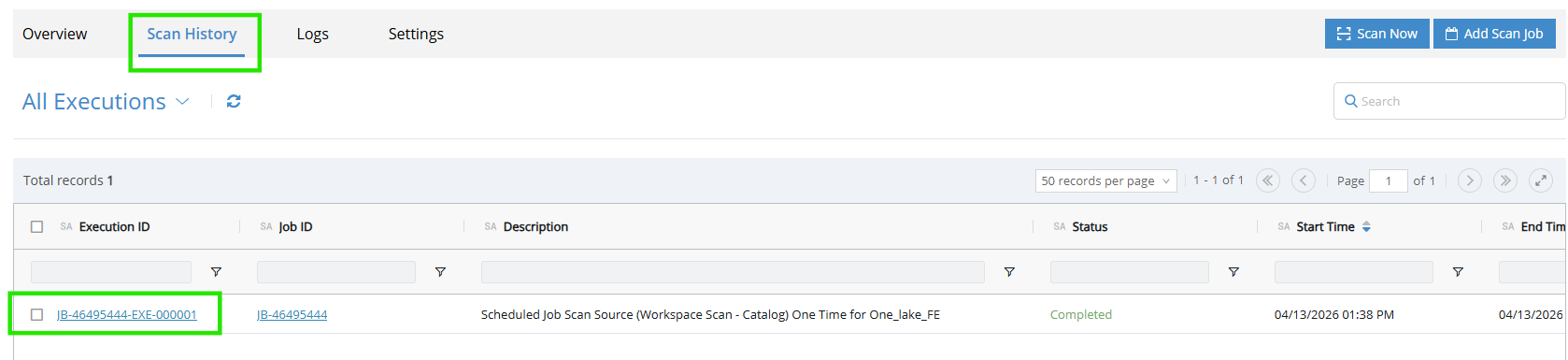

• Navigate to Scan History
• Click on the Execution ID

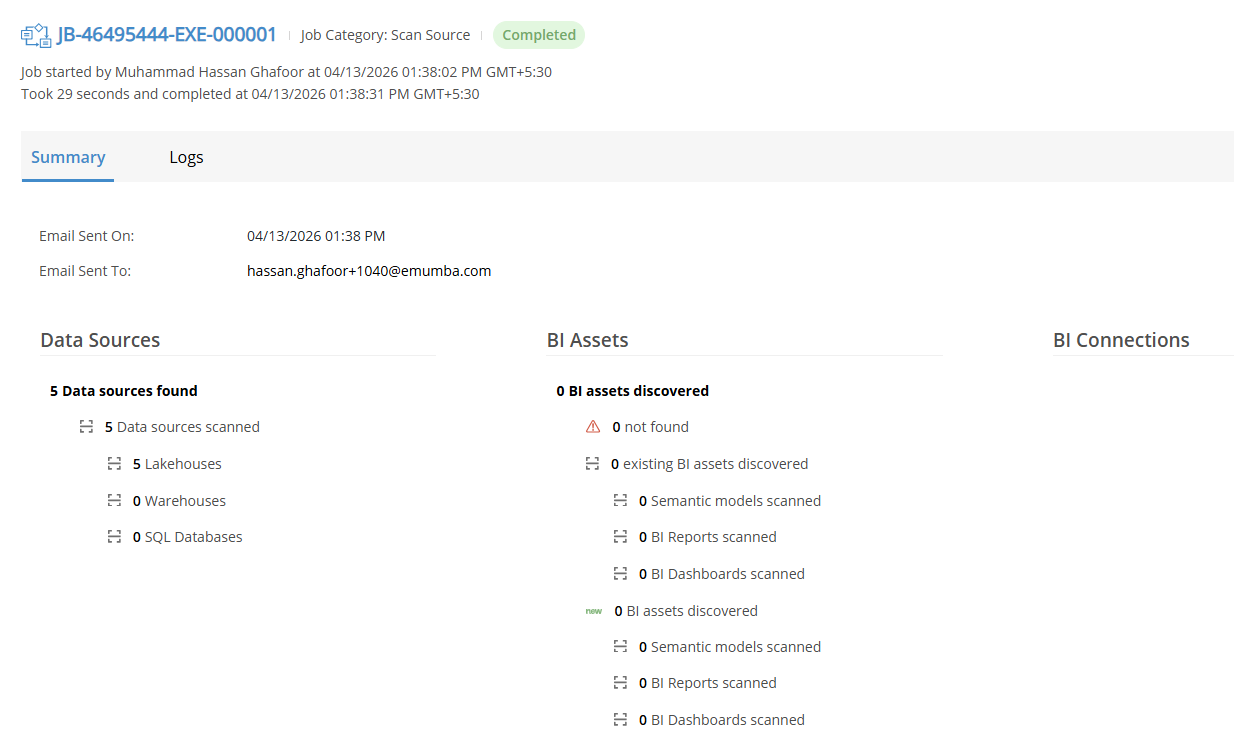

The Execution Summary page displays:

• Total number of data sources discovered and scanned
• Breakdown of data sources (e.g., Lakehouses, Warehouses, SQL Databases)
• Summary of BI assets including:
  • Semantic Models
  • BI Reports
  • BI Dashboards
• Count of new and existing assets discovered
